Engineering via SICAM WEB
460 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
Note
When replugging the SD card into the target device, a startup will be performed.

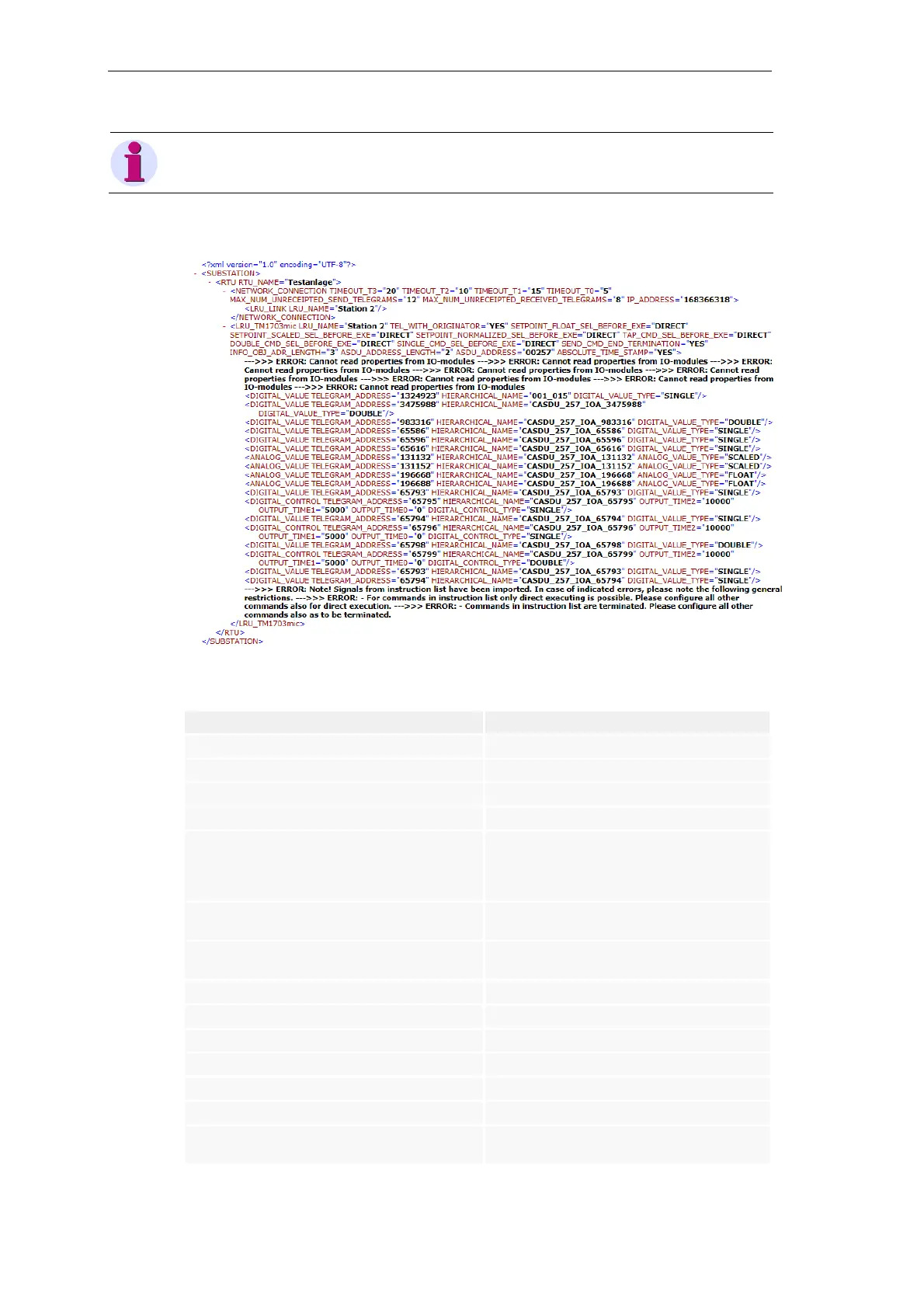

Example for a configuration (with error)
Parameters for the SICAM PAS coupling
XML field Parameter
RTU_NAME Plant name
LRU_NAME Device name
ASDU_ADDRESS CASDU2 x 256 + CASDU1
NETWORK_CONNECTION IP_ADDRESS Own IP address X1/X4
TIMEOUT_T0
TIMEOUT_T1
TIMEOUT_T2
TIMEOUT_T3
Timeout connection setup t0
Timeout transmit t1
Timeout transmit acknowledge t2
Timeout connection check t3
MAX_NUM_UNRECEIPTED_SEND_TELEGRAMS Max. no. of APDUs until acknowledge-
ment (k)
MAX_NUM_UNRECEIPTED_RECEIVED_TELEG
RAMS
number of APDUs until acknowledgement
(w)
SINGLE_CMD_SEL_BEFORE_EXE select_execute_t for TI 45 (0 = direct)
DOUBLE_CMD_SEL_BEFORE_EXE select_execute_t for TI 46 (0 = direct)
TAP_CMD_SEL_BEFORE_EXE select_execute_t for TI 47 (0 = direct)
SETPOINT_NORMALIZED_SEL_BEFORE_EXE select_execute_t for TI 48 (0 = direct)
SETPOINT_SCALED_SEL_BEFORE_EXE select_execute_t for TI 49 (0 = direct)
SETPOINT_FLOAT_SEL_BEFORE_EXE select_execute_t for TI 50 (0 = direct)
SEND_CMD_END_TERMINATION Termination_t for TI 48…TI 50 (0 = terminat-
ed)
