Siemens CP-8021 User Manual

Installation and Circuitry
SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual Unrestricted 185
DC8-037-2.02, Edition 10.2017
Caution

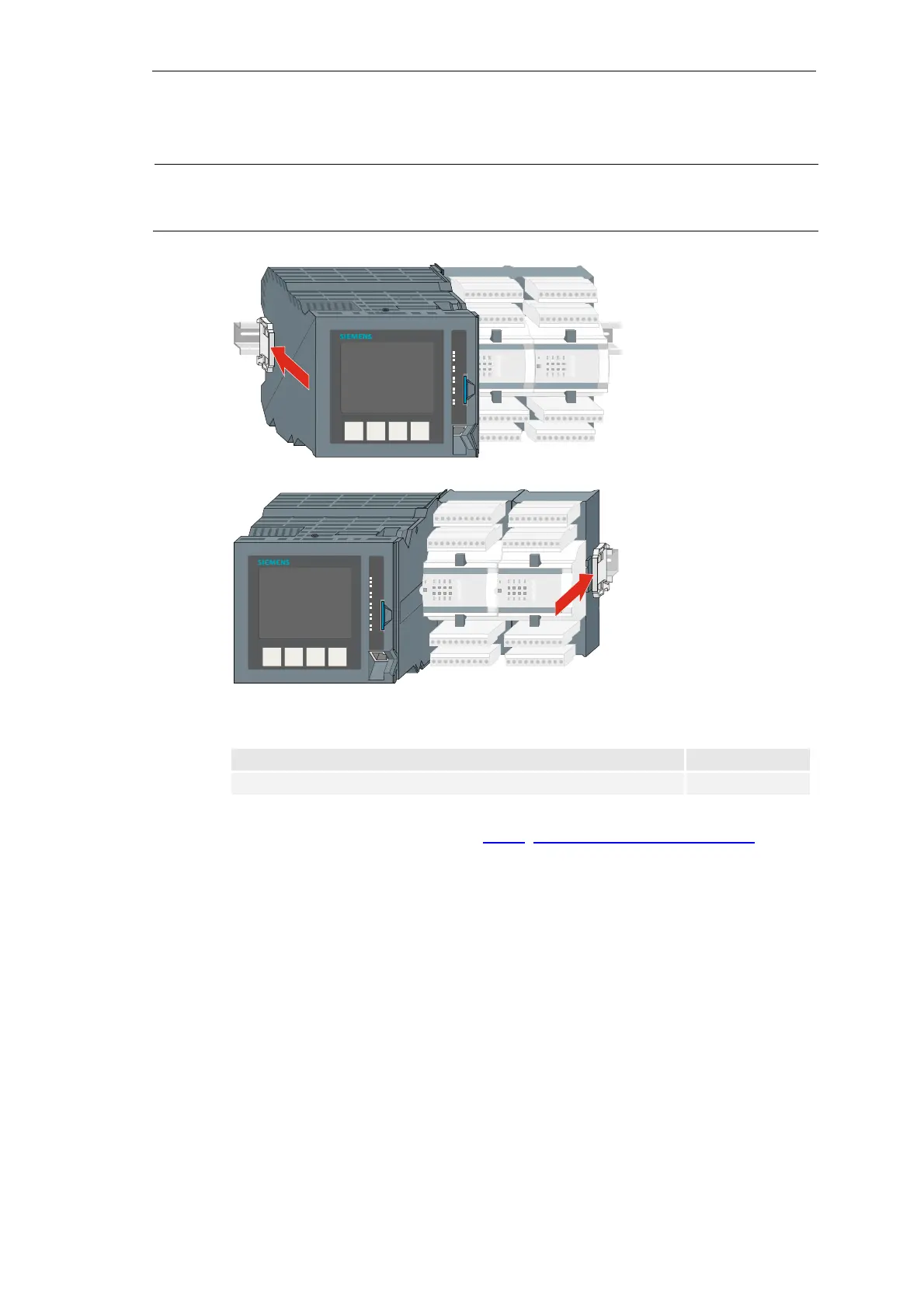

To increase the stability it is necessary to mount an end clamp flush left from the CP-8000 housing and
flush right after the last SICAM TM I/O Module.
You can take information on the SICAM TM I/O Modules out of the following documents:
Document name Item number
SICAM TM I/O Modules User Manual DC6-041-2
Please consider the notes in the section 2.1.5.4, Configuration Rules for I/O Modules.
