Engineering via SICAM WEB
368 Unrestricted SICAM A8000 / CP-8000 • CP-8021 • CP-8022 Manual
DC8-037-2.02, Edition 10.2017
This is how to parameterize the assigned signals:

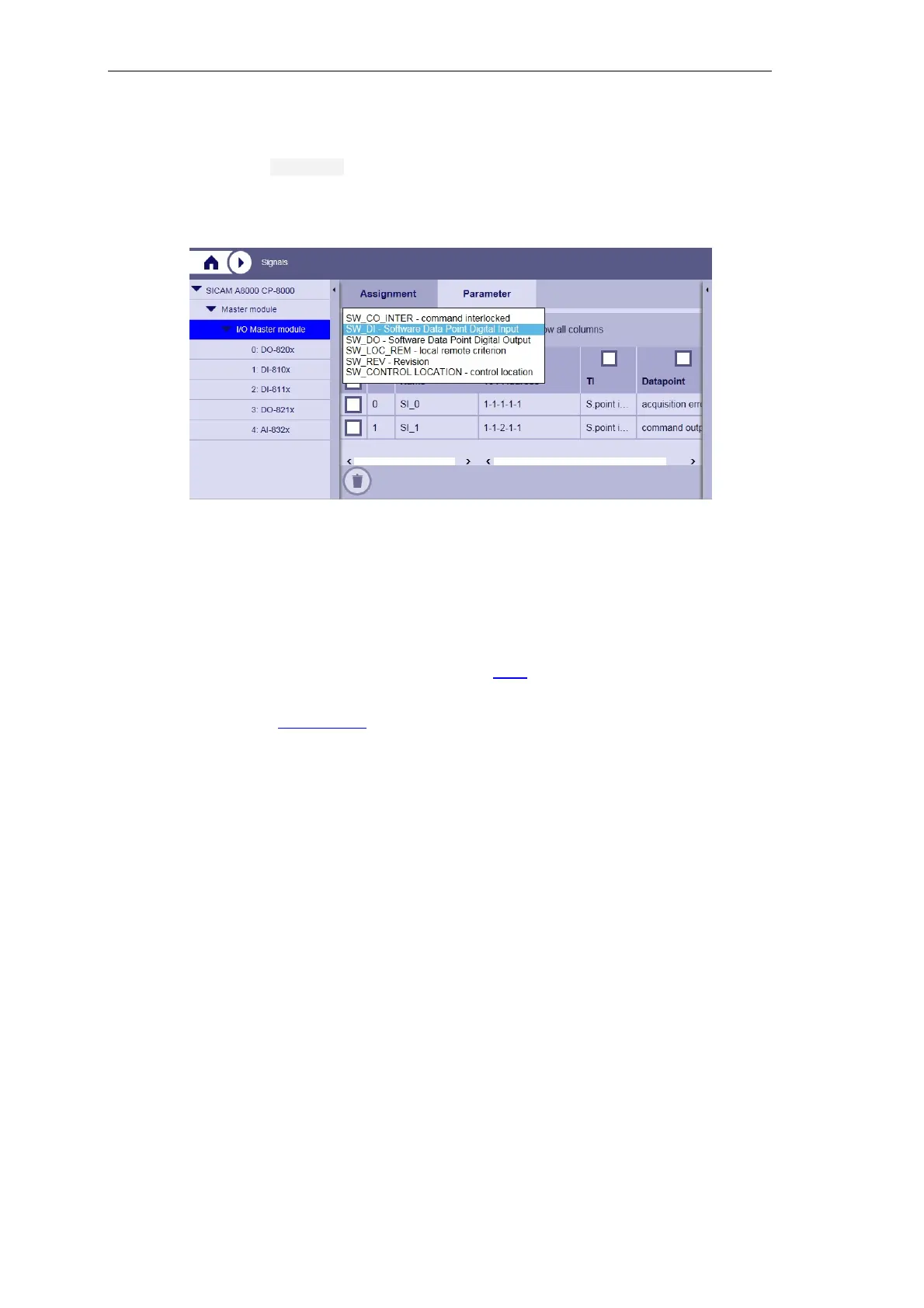

• Open the Parameter tab
• In the dropdown list, select the previously defined processing type for the newly assigned
signal
All signals of the selected processing type (on the selected system element) are displayed
listed in the table. Thereby, the signal name, the message address and the type identification
are taken over from the work area for the signal generation.
The processing types offered on the I/O Master Module are dependent on the configured
firmware for the I/O Master Module and provide only expert parameters.
• Activate the checkbox SHOW ALL PARAMETERS if you want to edit expert parameters
• Save your changes from time to time, refer to Apply
Further steps: Restart device.
