Functions
2.14 Differential Protection and Its Protected Objects
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
111

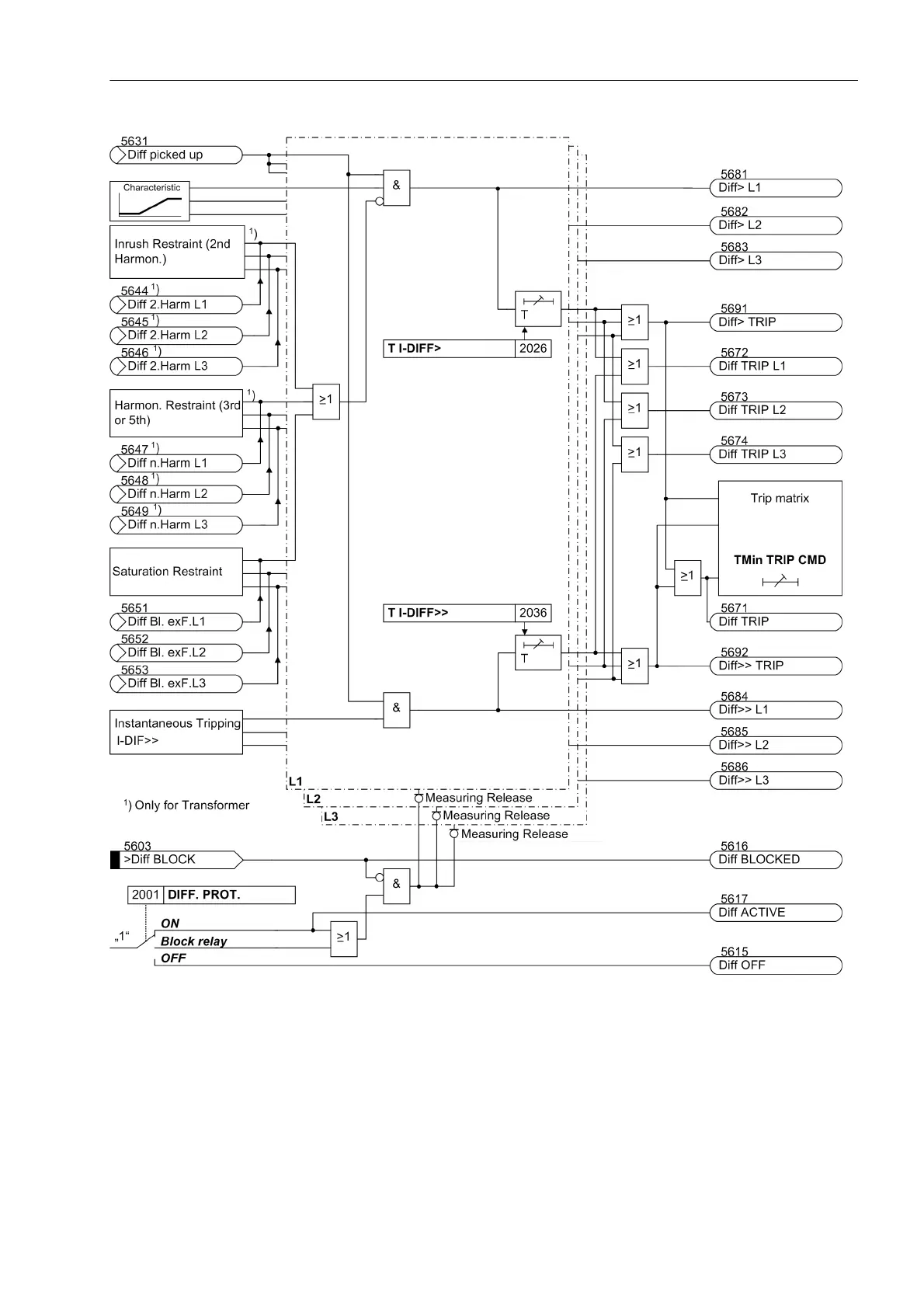

Figure 2-39 Logic Diagram of the Tripping Logic in Differential Protection
