Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
535

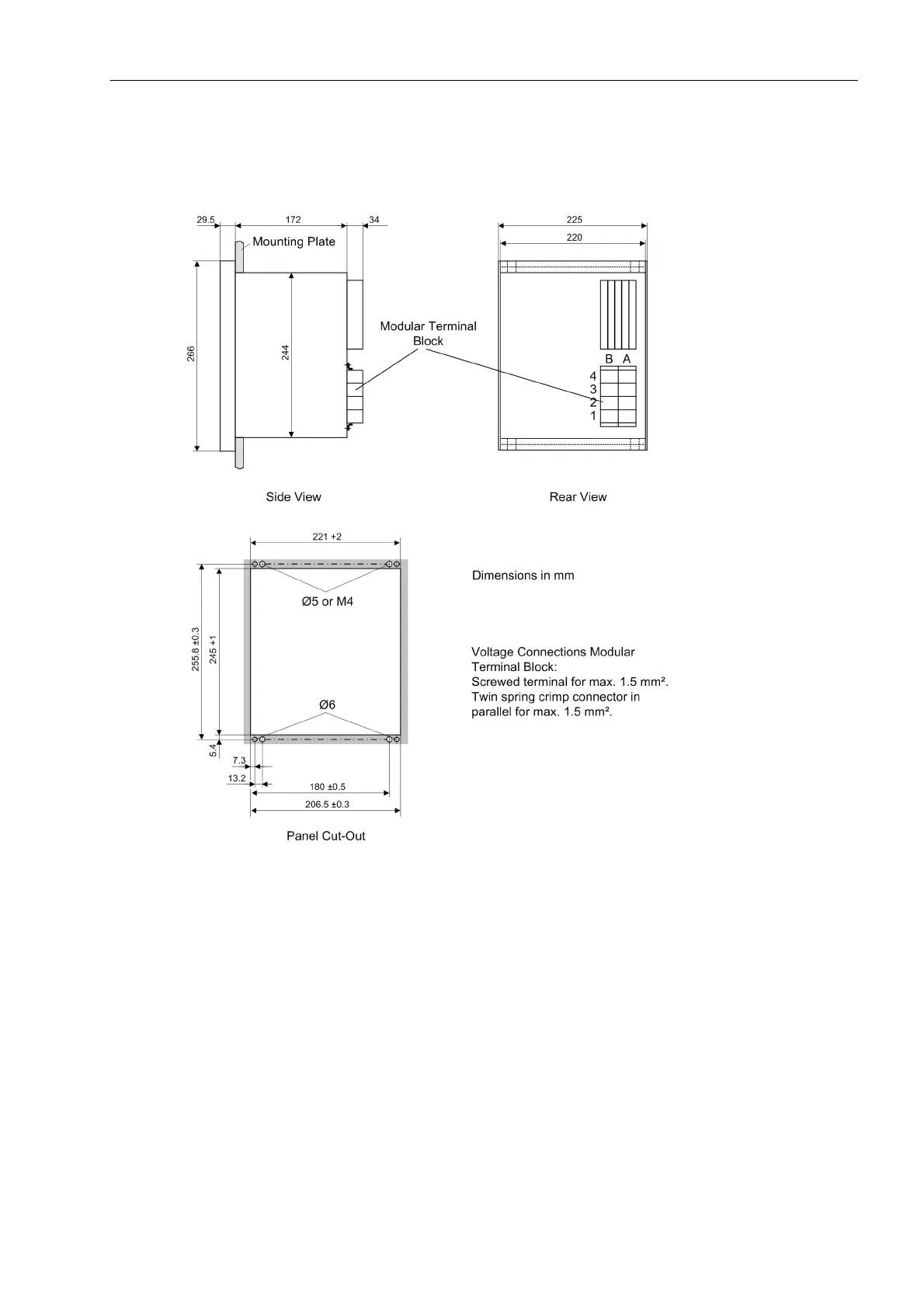

4.39.12 Dimensional Drawing of 20 Hz Generator 7XT3300-0CA00 for
Panel Surface Mounting or Cubicle Flush Mounting
Figure 4-25 Dimensions of 20 Hz Generator 7XT3300-0CA00 for Panel Flash or Cubicle Mounting
