Siemens SIPROTEC 7UM62 - Maßbild 20 Hz-Generator 7 XT3300-0 CA00;DD für Schalttafel- oder Schrankeinbau

Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
536
4.39.13 Dimensional Drawing of 20 Hz-Generator 7XT3300-0CA00/DD for
Panel Surface Mounting oe Cubicle Flush Mounting

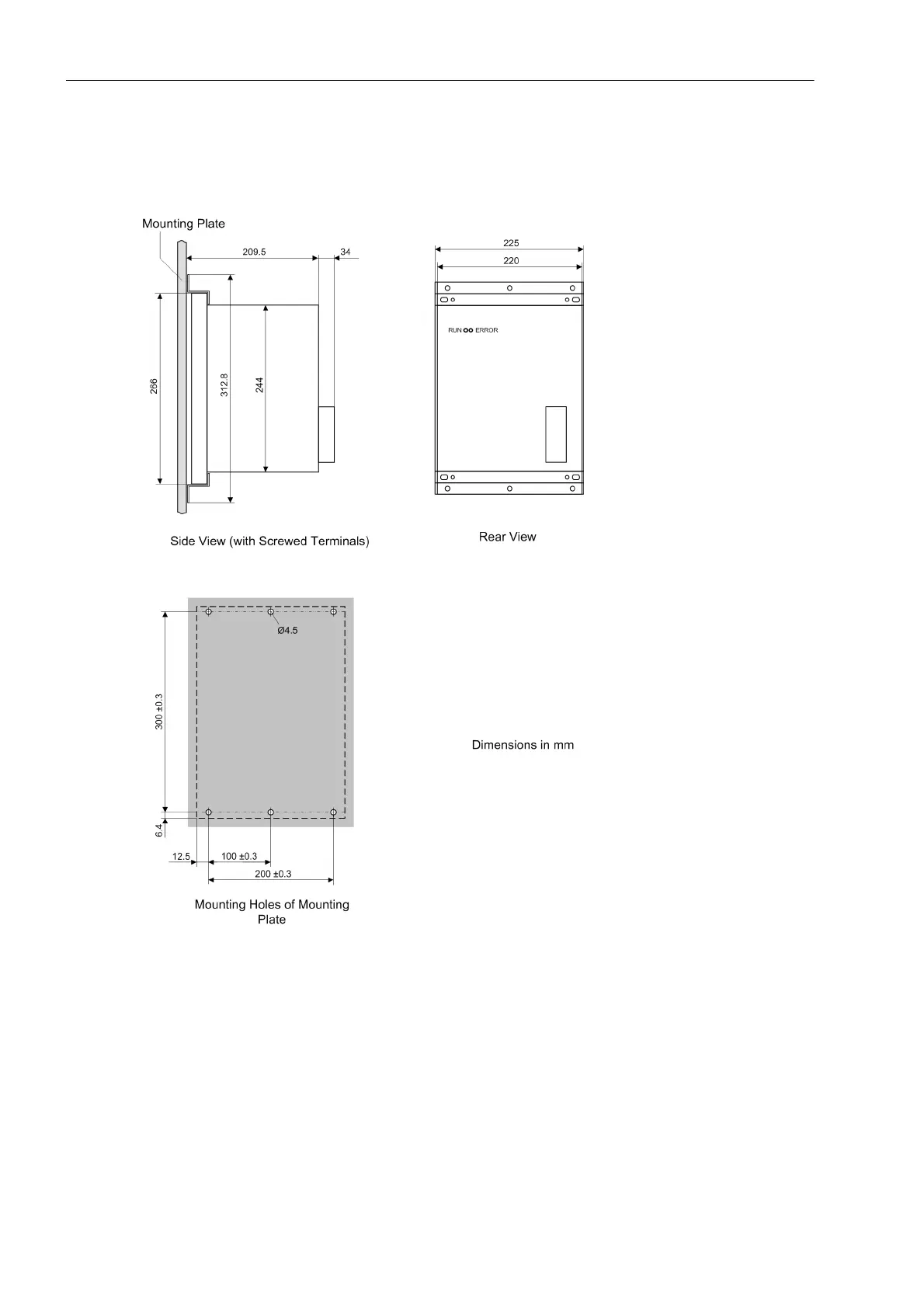

Figure 4-26 Dimensions of a 20-Hz Generator 7XT3300-0CA00/DD for Panel Flush or Cubicle Mounting
