Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
532
4.39.9 Dimensions of Series Unit 7XT7100-0EA00 for Panel Flash Mounting

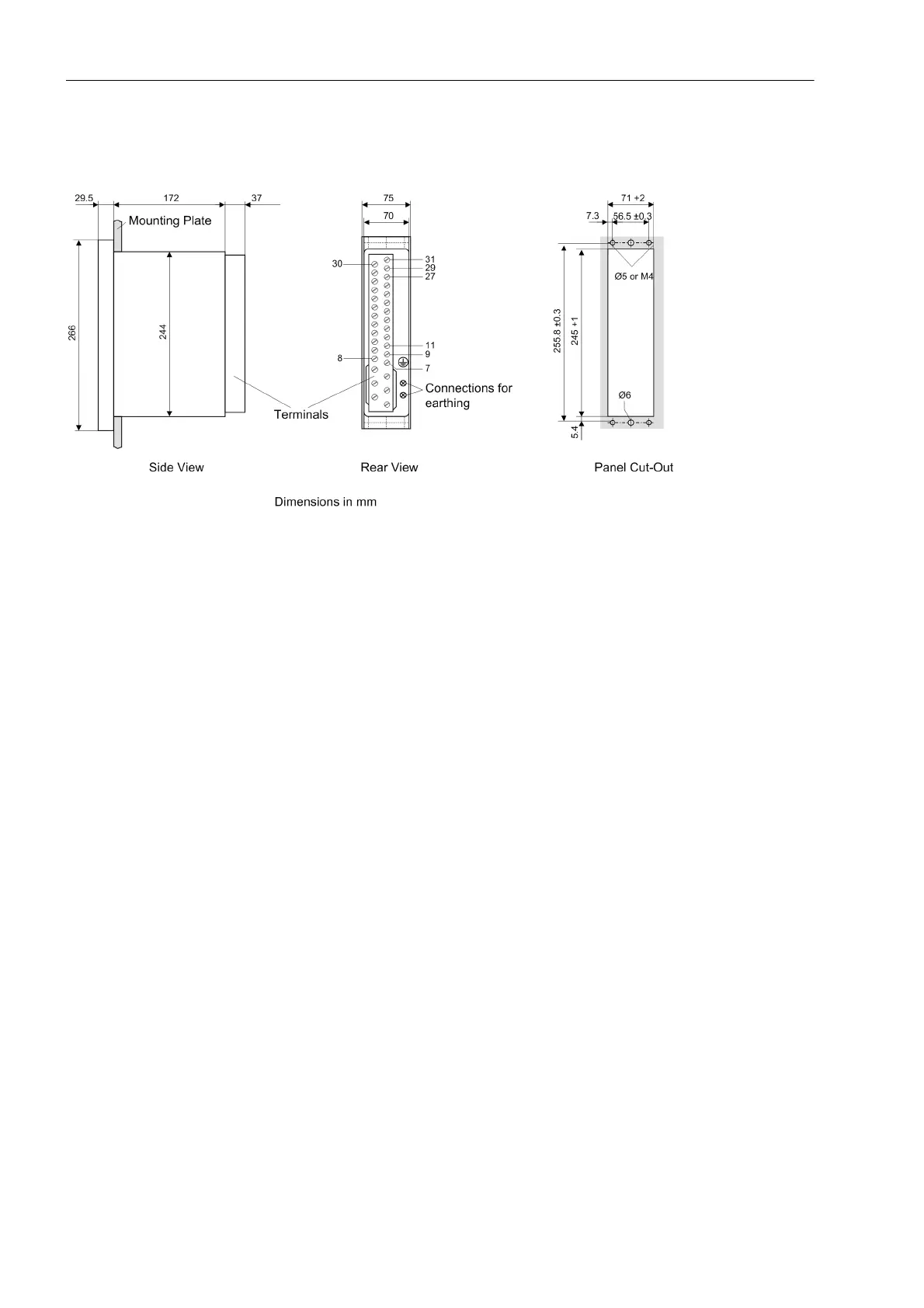

Figure 4-22 Dimensions of Series Unit 7XT7100-0EA00 for Panel Flash Mounting
where:
Current connections (terminals 1 to 6)
not used in 7XT71
Control connections (terminals 7 to 31)
Screw terminals (ring-type cable lug):
for bolts of 4 mm, max. outside diameter 9 mm
Type: e.g. PIDG of Messrs. Tyco Electronics AMP
for copper cable cross-sections between 1.0 mm
2
and 2.6 mm
2
AWG 17 to 13
in parallel double leaf-spring-crimp contact:
for copper cable cross-sections between 0.5 mm
2
and 2.5 mm
2
AWG 20 to 13
Maximum tightening torque 1.8 Nm.
