Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
528

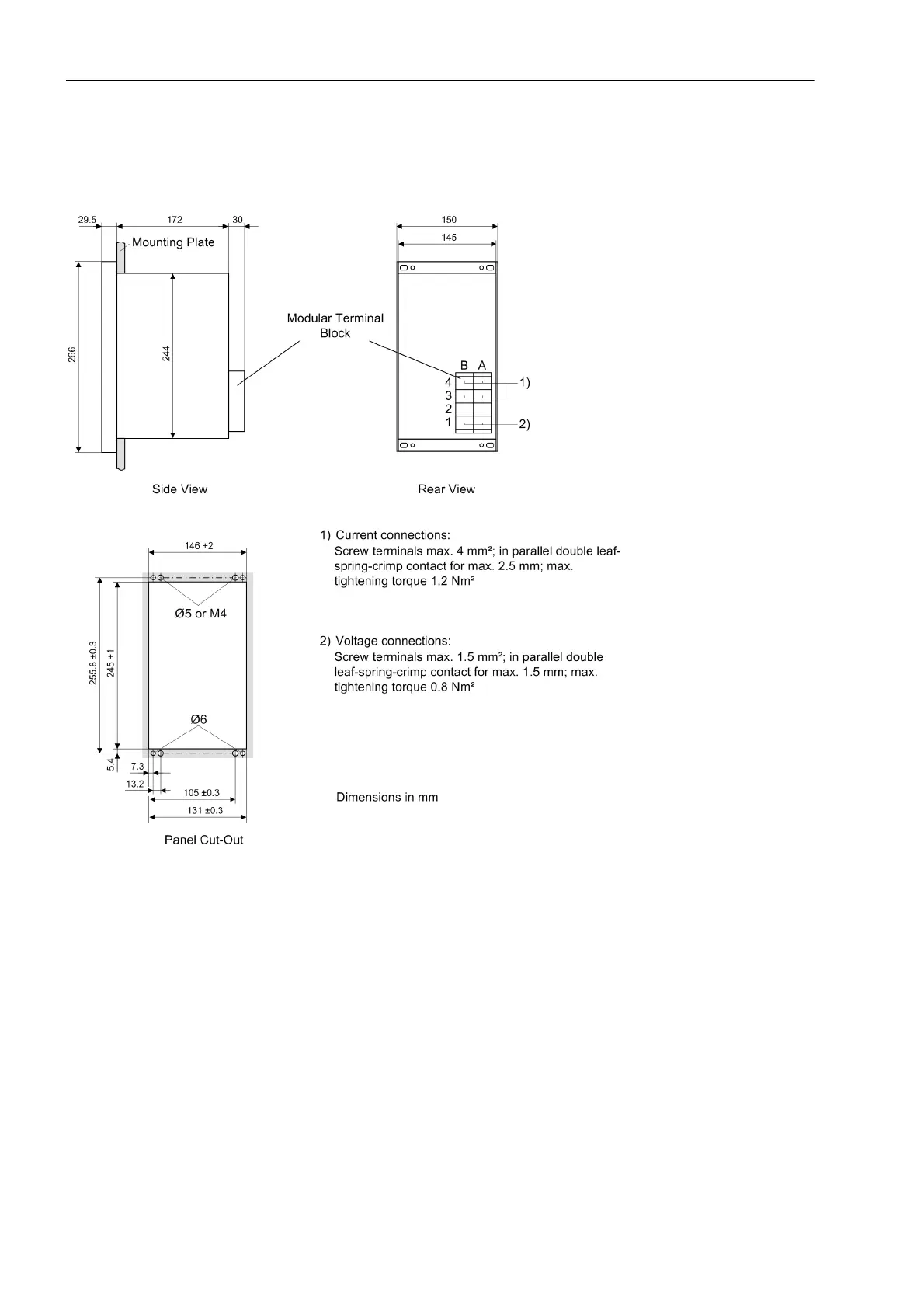

4.39.5 Dimensional Drawing of Coupling Device 7XR6100-0CA0 for
Panel Flush Mounting
Figure 4-18 Dimensions of Coupling Unit 7XR6100-0CA0 for Panel Flush Mounting
