Siemens SIPROTEC 7UM62 - Dimensional Drawing of 3 PP13

Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
530
4.39.7 Dimensional Drawing of 3PP13

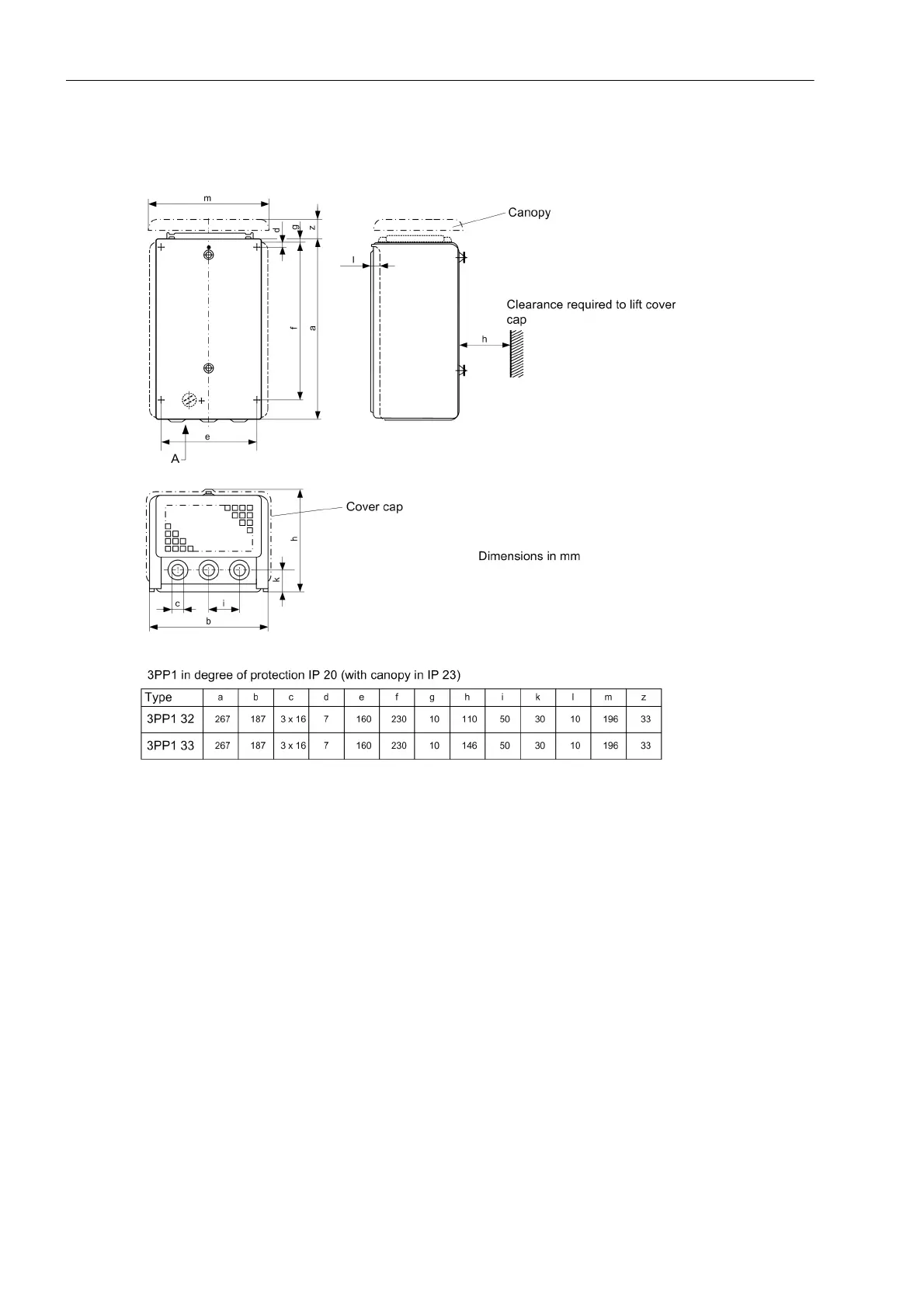

Figure 4-20 Dimension Diagrams 3PP13:
3PP132 for voltage divider 3PP1326-0BZ-012009 (20 : 10 : 1)
3PP133 for voltage divider 3PP1336-1CZ-013001 (5 : 2 : 1)
for series resistor 3PP1336-0DZ-013002
