Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
537
4.39.14 Dimensional Drawing of 20 Hz Generator 7XT3300-0BA00 for
Panel Surface Mounting

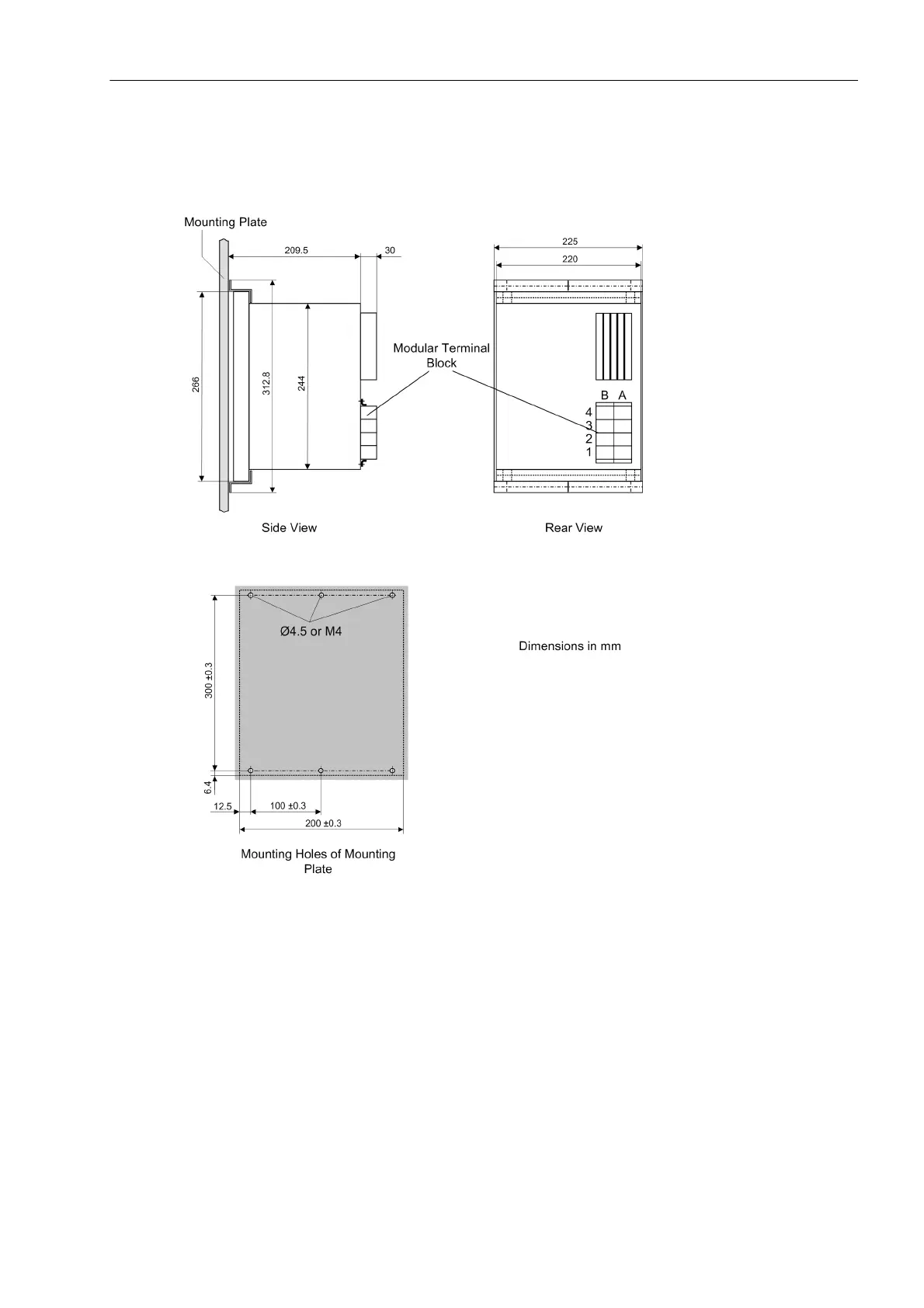

Figure 4-27 Dimensions of 20 Hz Generator 7XT3300-0BA00 for Panel Surface Mounting
