2.43 Trip Circuit Supervision
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
301

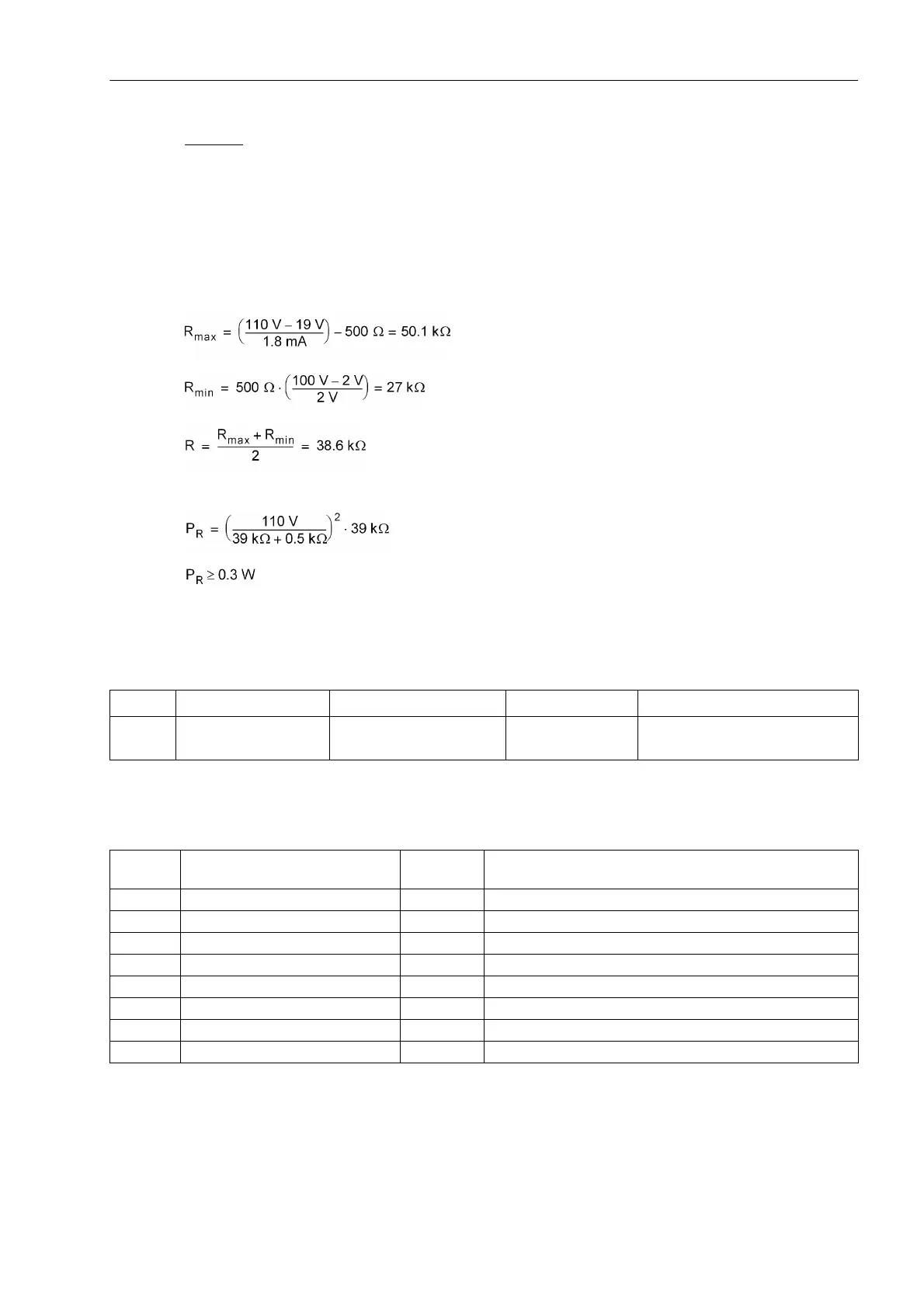

Example:
I
BI (HIGH)
1.8 mA (SIPROTEC 4 7UM62)
U
BI min
19 V for delivery setting for nominal voltage 24/48/60 V (from 7UM62), 88 V for delivery
setting for nominal voltage 110/125/220/250 V) (from 7UM62)
U
CTR
110 V (system / trip circuit)
R
TC
500 Ω (system / trip circuit)
U
TC (LOW)
2 V (system / trip circuit)
The closest standard value of 39 kΩ is selected; the power is:
2.43.3 Settings
2.43.4 Information List
Addr. Parameter Setting Options Default Setting Comments
8201 TRIP Cir. SUP. OFF
ON
OFF TRIP Circuit Supervision
No. Information Type of In-
formation
Comments
6851 >BLOCK TripC SP >BLOCK Trip circuit supervision
6852 >TripC trip rel SP >Trip circuit supervision: trip relay
6853 >TripC brk rel. SP >Trip circuit supervision: breaker relay
6861 TripC OFF OUT Trip circuit supervision OFF
6862 TripC BLOCKED OUT Trip circuit supervision is BLOCKED
6863 TripC ACTIVE OUT Trip circuit supervision is ACTIVE
6864 TripC ProgFail OUT Trip Circuit blk. Bin. input is not set
6865 FAIL: Trip cir. OUT Failure Trip Circuit
