Siemens SIPROTEC 7UM62 - Housing for Panel Flush Mounting or Cubicle Mounting (Size )

Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
526
4.39.2 Housing for Panel Flush Mounting or Cubicle Mounting (Size
1
/
1
)

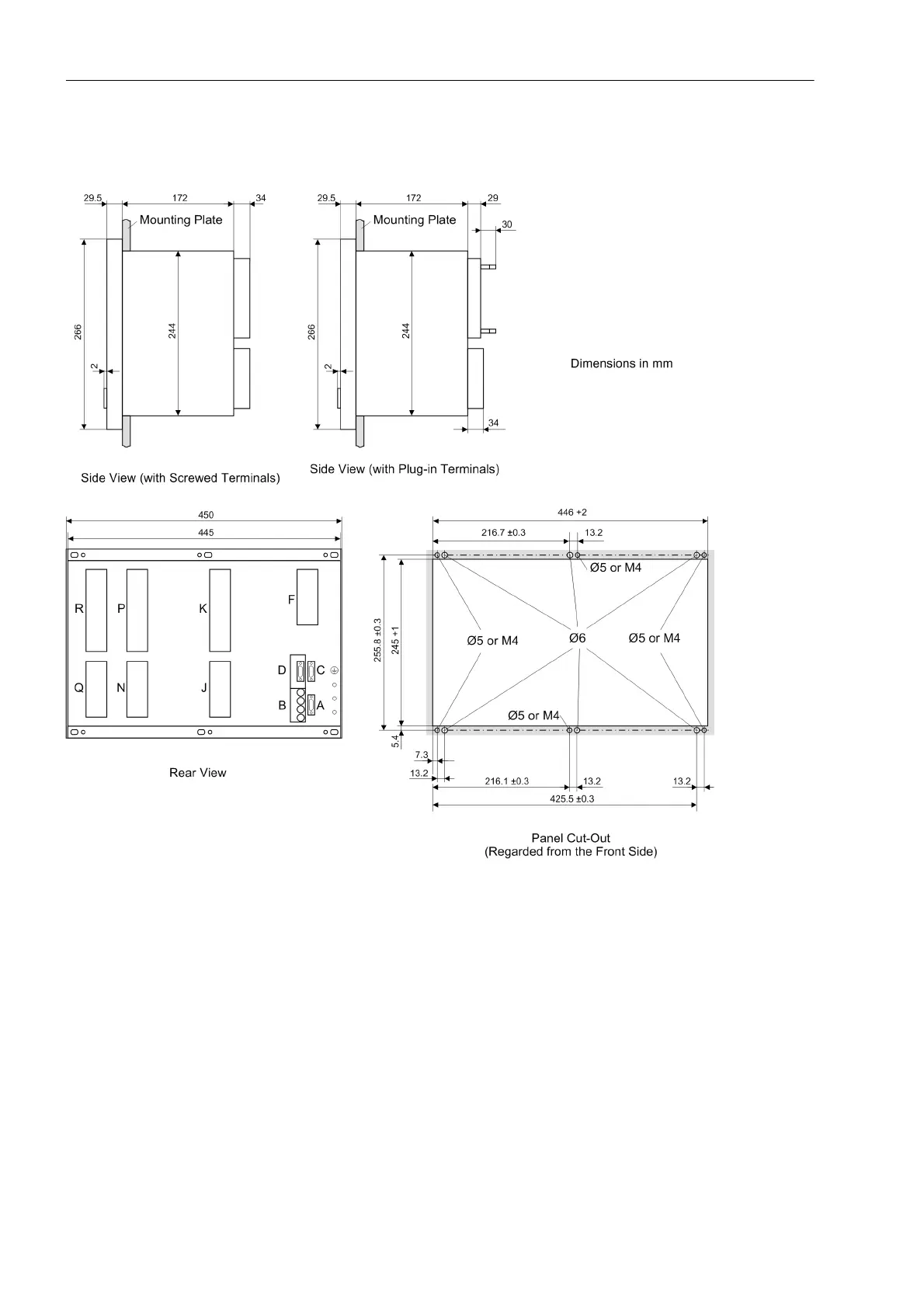

Figure 4-15 Dimensions of a 7UM622 for Panel Flush Mounting or Cubicle Installation (size 1/1)
