Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
531
4.39.8 Dimensional Drawing of Series Device 7XT7100-0BA00 for
Panel Surface Mounting

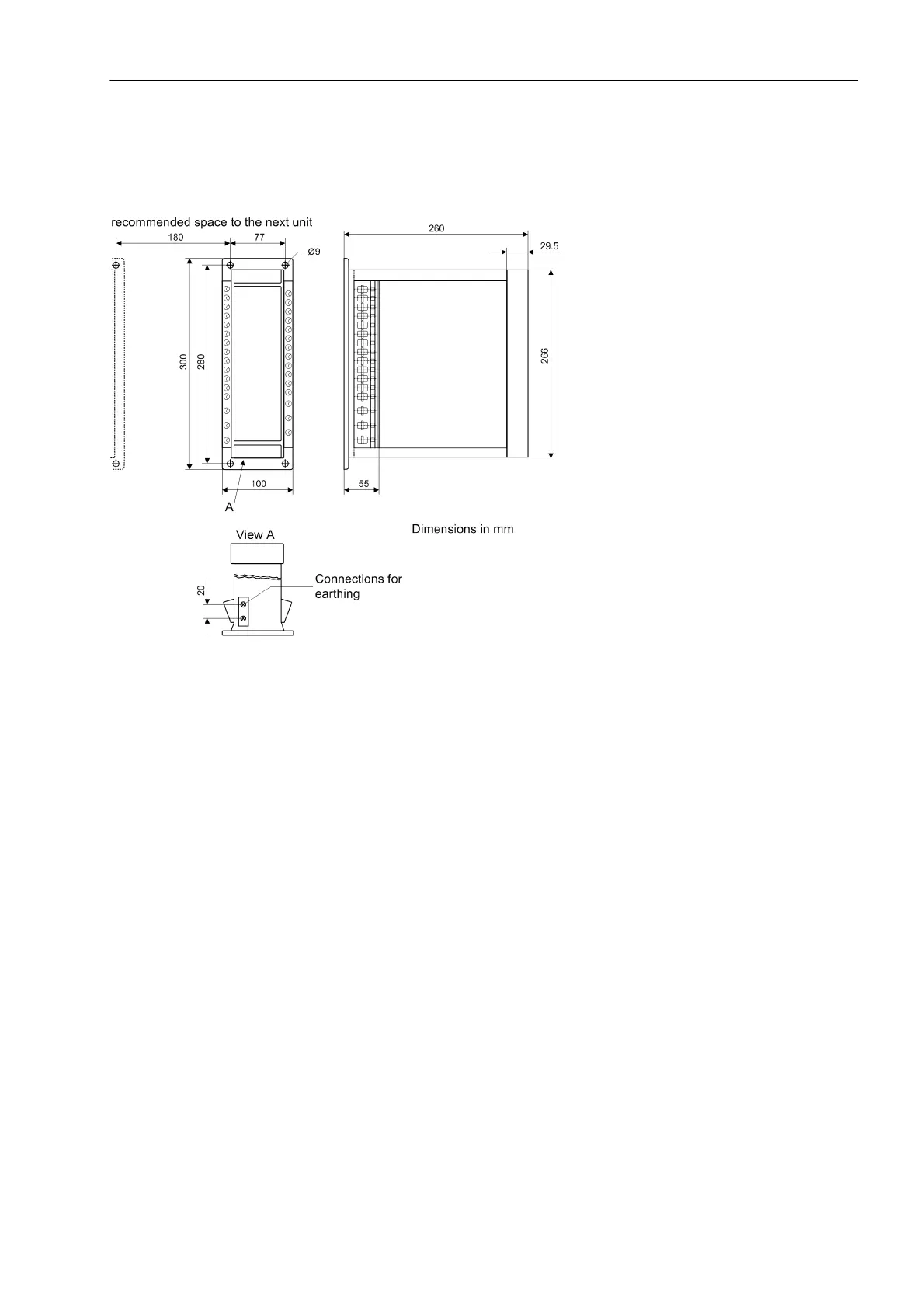

Figure 4-21 Dimensions of Series Device 7XT7100-0BA00 for Panel Surface Mounting
where:
Current connections (terminals 1 to 6) not used in 7XT71
Control connections (terminals 7 to 31) insulated ring-type cable lug:
for bolts of 4 mm, max. outside diameter 9 mm, type: e.g. PIDG from Tyco Electronics AMP for copper cable cross-
sections of 1.0 mm
2
to 2.6 mm
2
. AWG 17 to 13
stripped copper cable, directly
Cross-sections between 0.5 and 2.6 mm
2
. AWG 20 to 13
with stranded conductors:
Cable end sleeve required, maximum tightening torque 1.8 Nm.
