Technical Data
4.39 Dimensions
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
539
4.39.16 Dimensional Drawing of 20 Hz Bandpass 7XT3400-0CA00 for
Panel Surface Mounting or Cubicle Flush Mounting

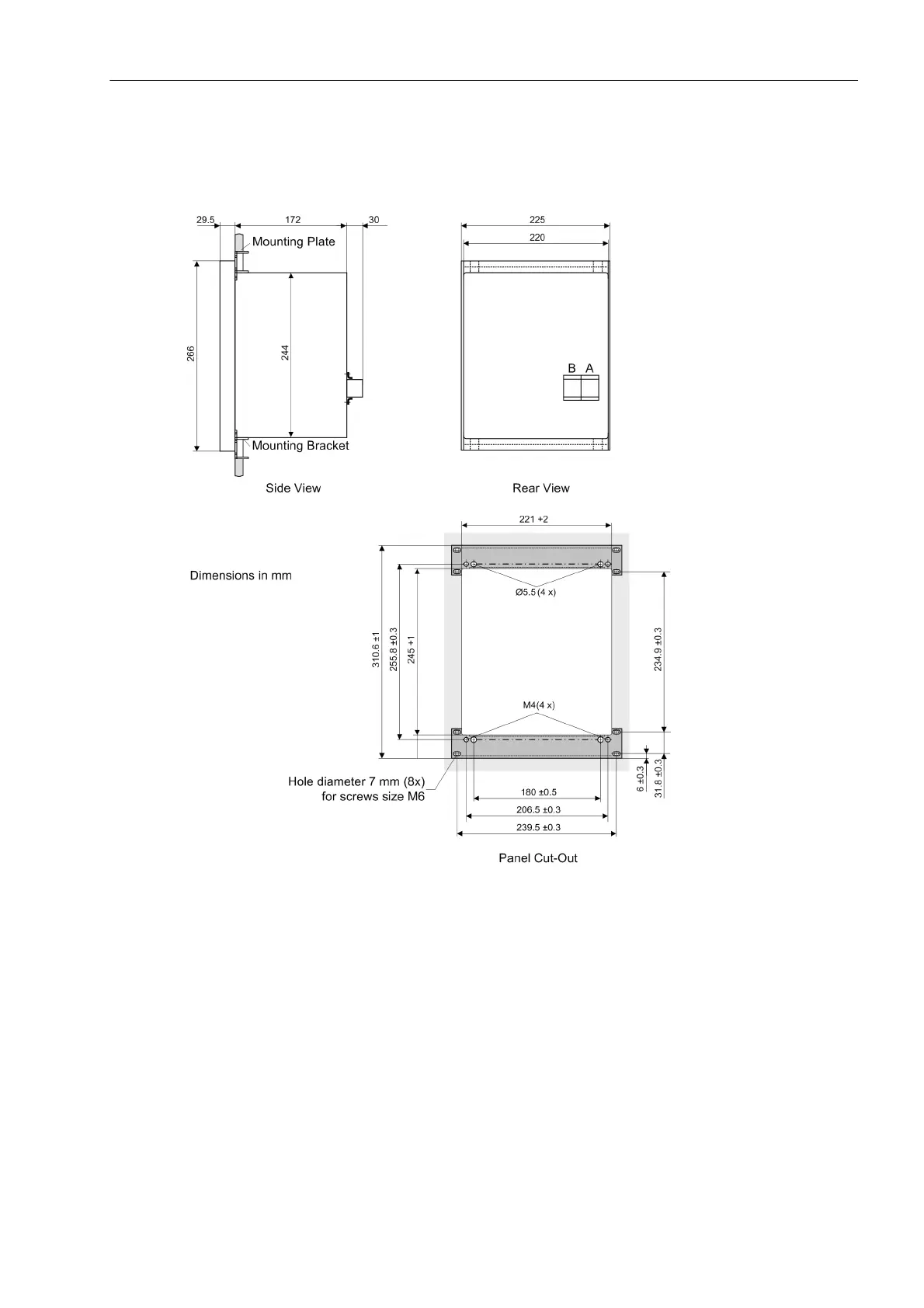

Figure 4-29 Dimensions of 20-Hz-Band-Pass Filter 7XT3400-0CA00 for Panel Flush or Cubicle Mounting
*) For panel flush mounting, 2 set squares C73165- A63-C201-1 are necessary since the mounting rails
of the device housing are not sufficient for the high weight of the 7XT34 device.
Fix the set squares to the panel, using screws size M6, according to the drawing.
Mount the 7XT34 device to the set squares using screws size M4 (no hexagon screws).
If the device is mounted in switchgear cabinets, the set squares can be omitted provided the cabinet
posesses adequate solid mounting rails.
If not, use 2 set squares C73165-A63-C200-3 (size 28 SEP = 19 inches).
