2.41 Analog Outputs
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
280

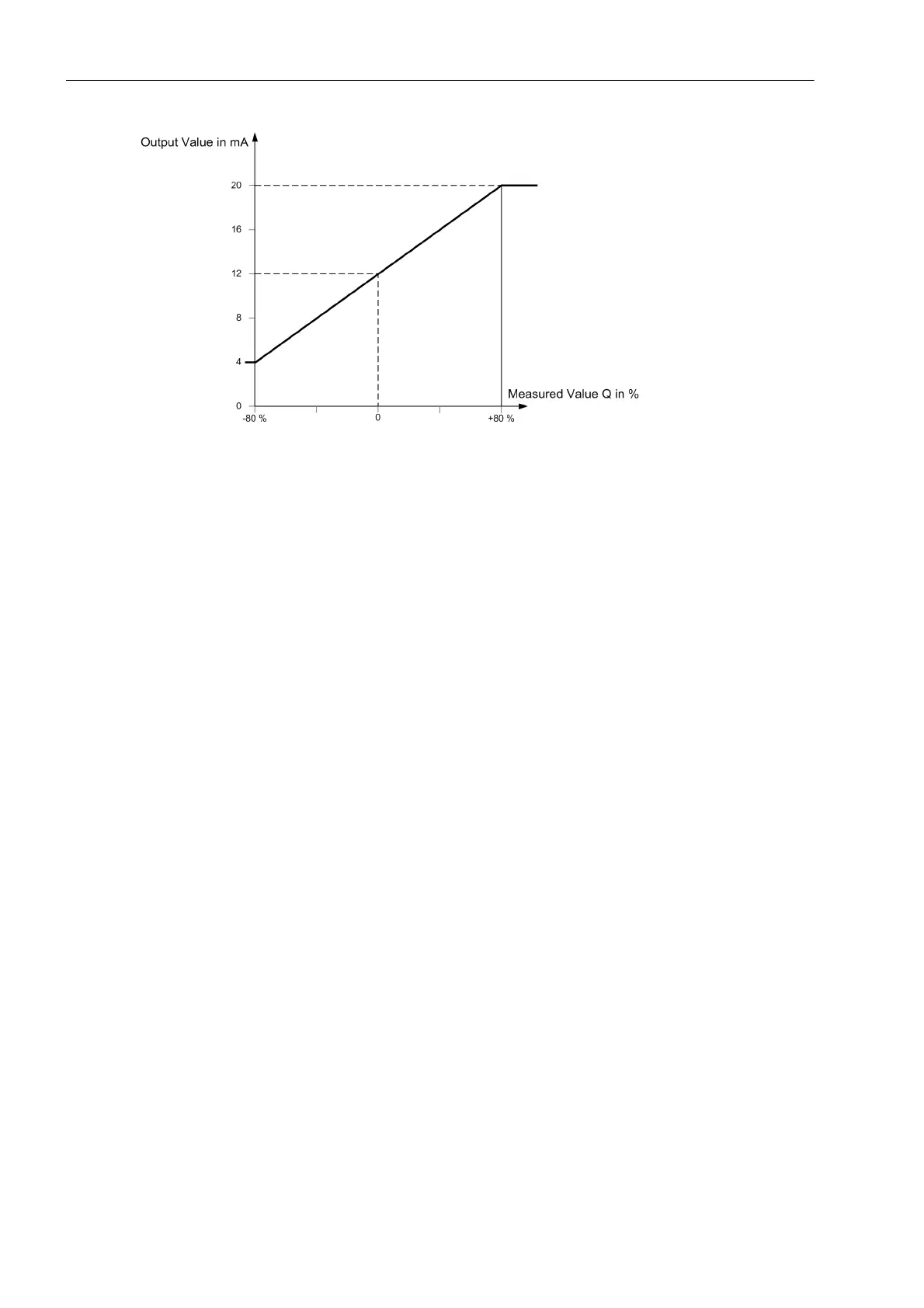

Figure 2-130 Example of a reactive power Q output
If the machine is run with cos j = 0.8, the resulting active power is 80 % referring to the apparent power. The
reactive power is correspondingly 60 % of the apparent power. This measured reactive power value results in
an output value of 18 mA.
