Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
369

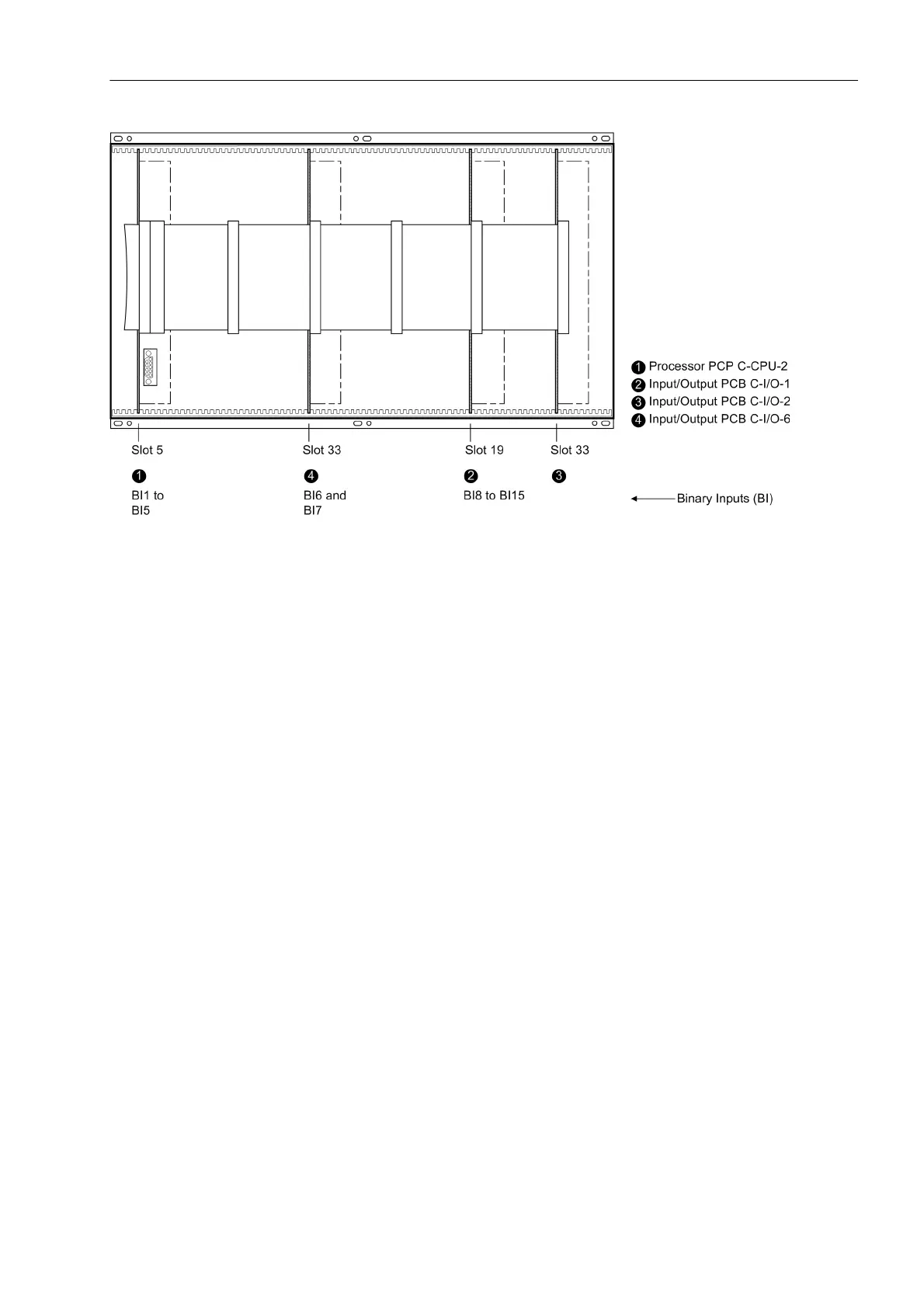

Figure 3-2 Front view of a 7UM622 (housing size 1/1) after removal of the front cover (simplified and scaled down)
