Mounting and Commissioning
3.3 Commissioning
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
448

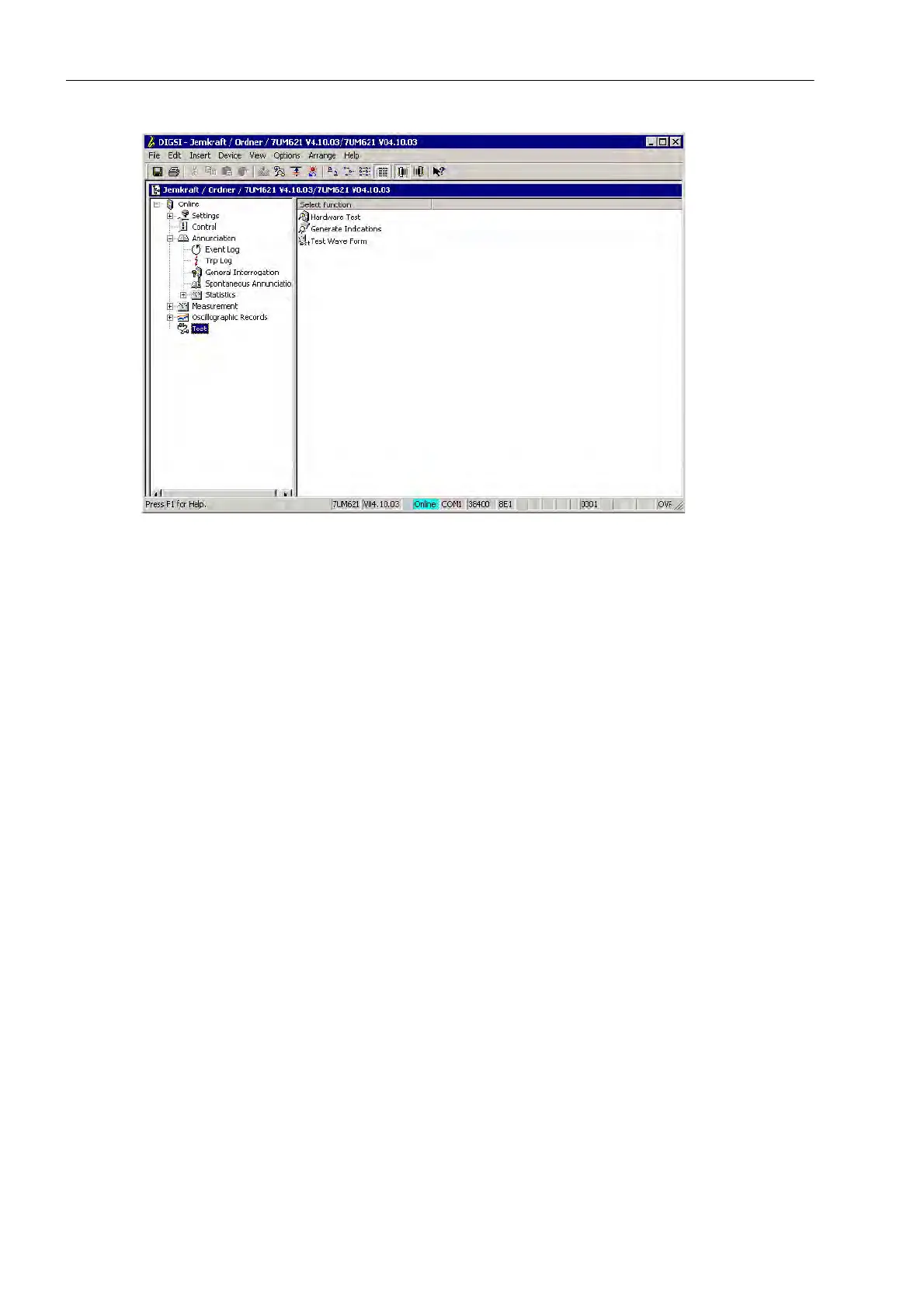

Figure 3-40 Triggering oscillographic recording with DIGSI — Example
A test measurement record is immediately started. During recording, an indication is given in the left part of the
status bar. Bar segments additionally indicate the progress of the procedure.
For display and evaluation of the recording, you require one of the programs SIGRA or ComtradeViewer.
