Functions
2.4 Functional Scope
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
46

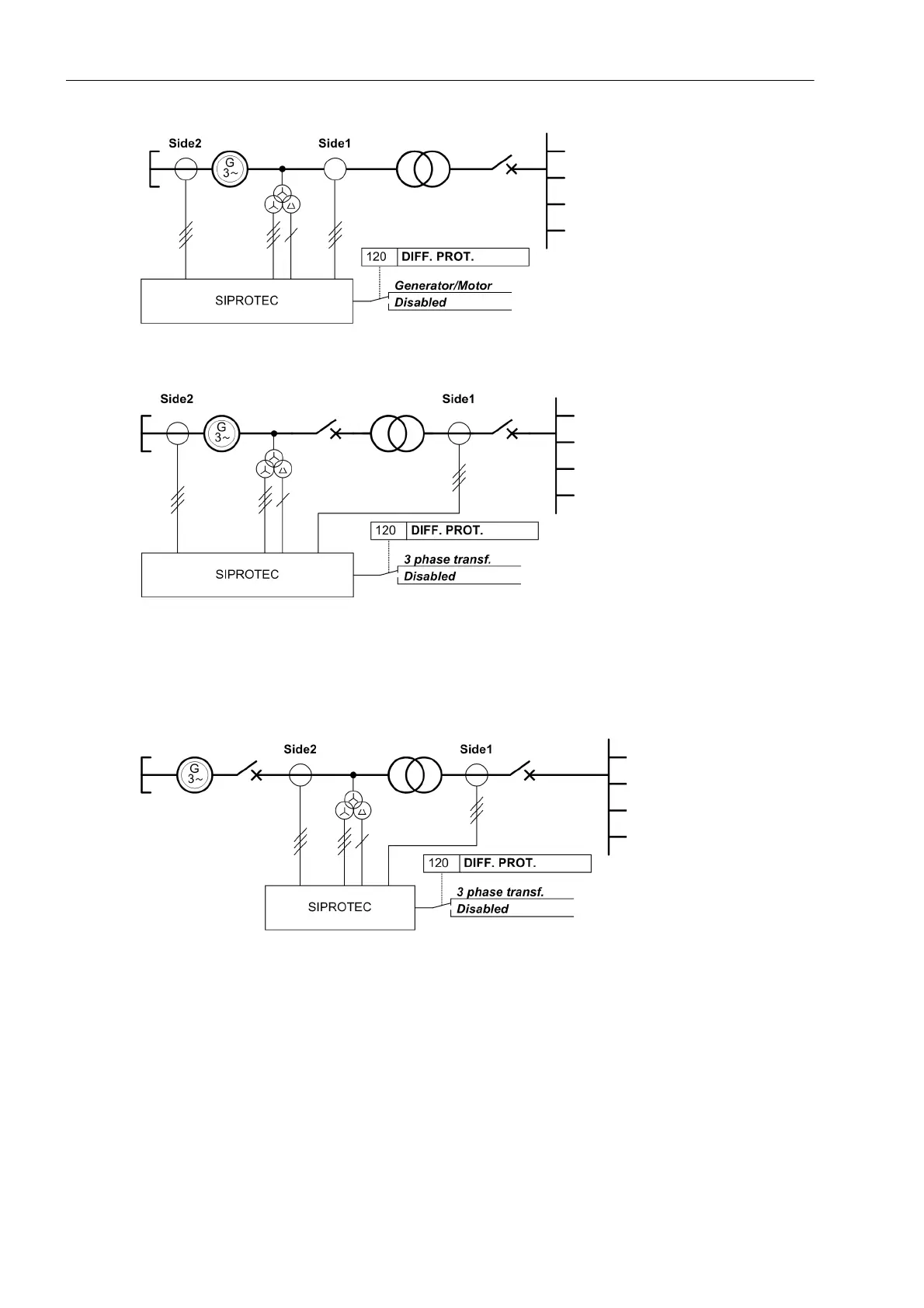

Figure 2-4 Use as Generator Differential Protection
Figure 2-5 Use as Block Differential Protection (Overall Protection)
For the following application, the settings of the generator data under P.System Data 1 must be same as
for the transformer data of side 2:
Figure 2-6 Use as Transformer Differential Protection
For the following application, the differential protection of device A must be set to Generator/Motor, in the
device B to 3 phase transf.. Also, the settings of the generator data under P.System Data 1 must be
same as for the transformer data of side 2:
