Appendix
A.3 Connection Examples
SIPROTEC, 7UM62, Manual
C53000-G1176-C149-7, Release date 03.2010
559

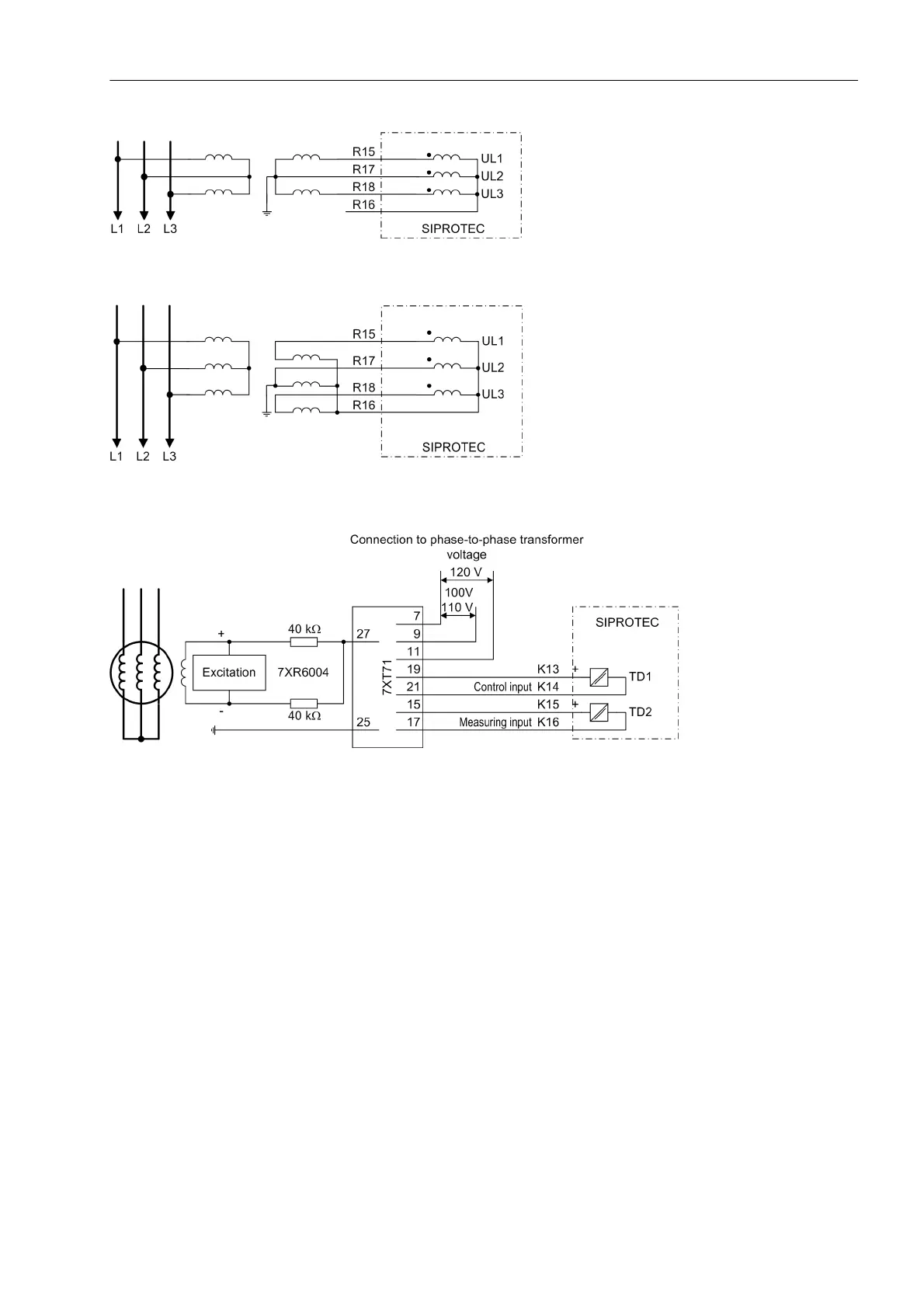

Figure A-13 Voltage Transformer Connections for Two Voltage Transformers in Open Delta Connection (V Connection)
Figure A-14 Voltage Transformer Connection with L2 Earthed on the Secondary Side
Figure A-15 Rotor Earth Fault Protection 1-3 Hz – with 1- 3-Hz-Generator 7XT71 and resistor device 7XR6004.
Note For further examples see manual 7XR6004
