Simplex 4005 Programming Instructions

6-2
Table 6-1 shows the Part Number and Product Identification (PID) Number for
the available 4005 modules.
Figure 6-1 indicates the I/O Card placement on the 4005 base panel.
Table 6-1. 4005 Module Identification Chart
DESCRIPTION PART NUMBER PID NUMBER
4-Point IDC Low-Current Card 565-473 4005-9804
4-Point IDC High-Current Card 565-610 4005-9824
4-Point NAC/Relay Card 565-477 4005-9805
2-IDC & 2-NAC/Relay Card 565-552 4005-9803
Class A Adaptor Card 565-556 4005-9806
8-Point I/O Card 565-554 4005-9808
City Circuit Card 565-550 4005-9809
Expansion Power Supply 565-481 4005-9813
Power Distribution Card 565-471 4005-9807
CITY1/DACT CITY2
TP3
TP1
TP2
P5
P6
P4
K1
U33
R95
WARM START
EXT RUI DET PWR
INT RUI
RS-232 PORT
1234
ASSY 0565-473 4 POINT IDC
TB1
**SYSTEM IS NORMAL**
12:02:15PM AUG 10, 1995
ALARM
ACK
SUPV
ACK
TROUBLE
ACK
ALARM
SILENCE
SYSTEM
RESET
FIRE
ALARM
SYSTEM
SUPERVISORY
SYSTEM
TROUBLE
ALARM
SILENCED
AC
POWER
P2
P1
SW2
R83
TB1
TB2
AC Line AC Ret Earth
115V
NEG POS
P3
T1
F1 3A
JW1
R69
SW1
ASSY 0565-473 4 POINT IDC
TB1
NAC/RELAY ASSY565-477
TB1
J1
F1
F2
F3
F4
3A
3A
3A
3A
K1
K2
K3
K4
Continued on next page
Programming Guides, Continued
4005 Module Identification
and Placement Chart
5 Expansion
Slots
(Optional Power
Distribution
Board Required)

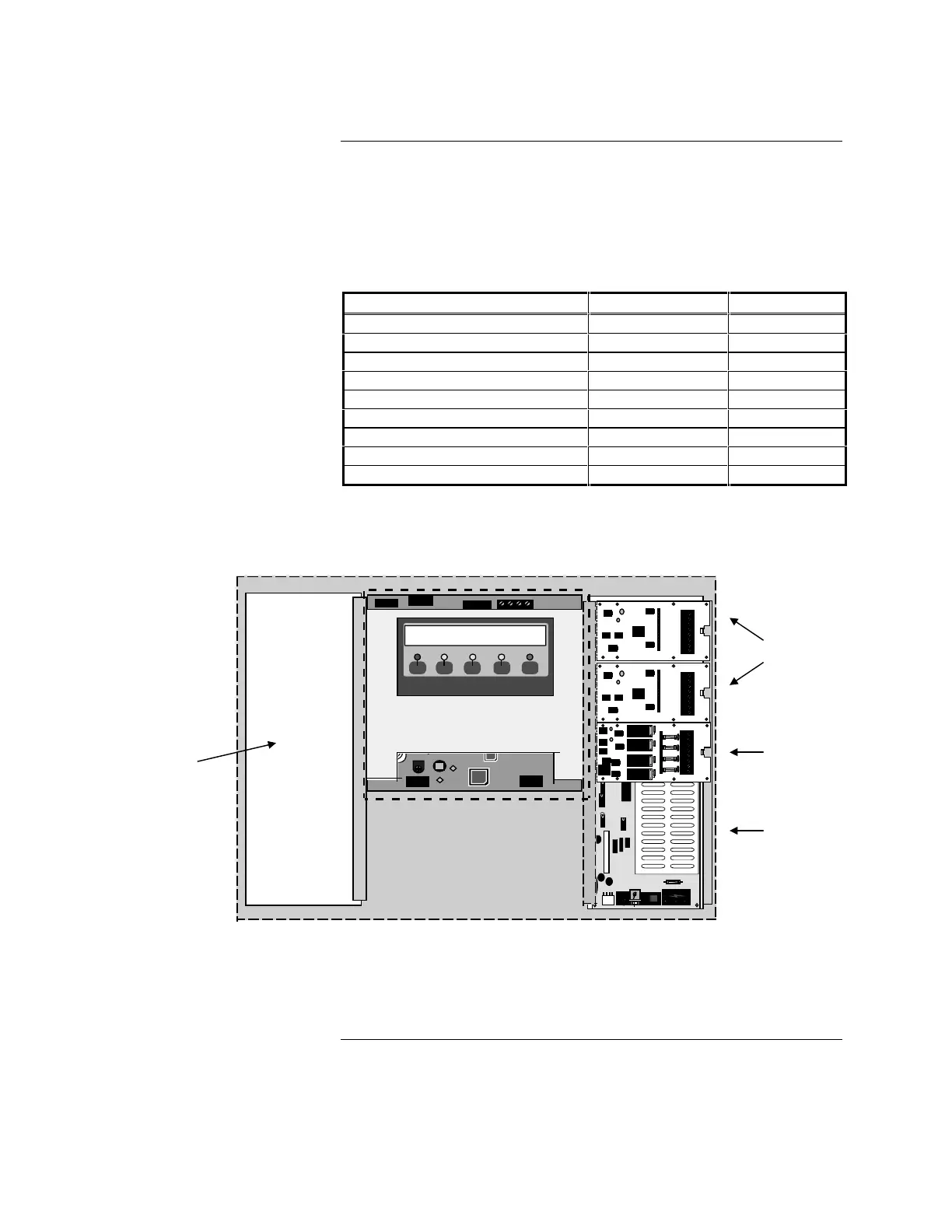

Figure 6-1. 4005 I/O Card Placement
(Base Panel Shown)
4-Point IDC
4-Point
NAC/Relay card
2 Expansion
Slots
