3-6
The OR Link operator links the current statement in Parallel with all previous
statements in an equation (see Figure 3-8).
Field 1 Field 2 Field 3 Field 4
[] [] [),5(] []
Field 1 Field 2 Field 3 Field 4
[25] [] [),5(] []
Figure 3-8. The OR Link

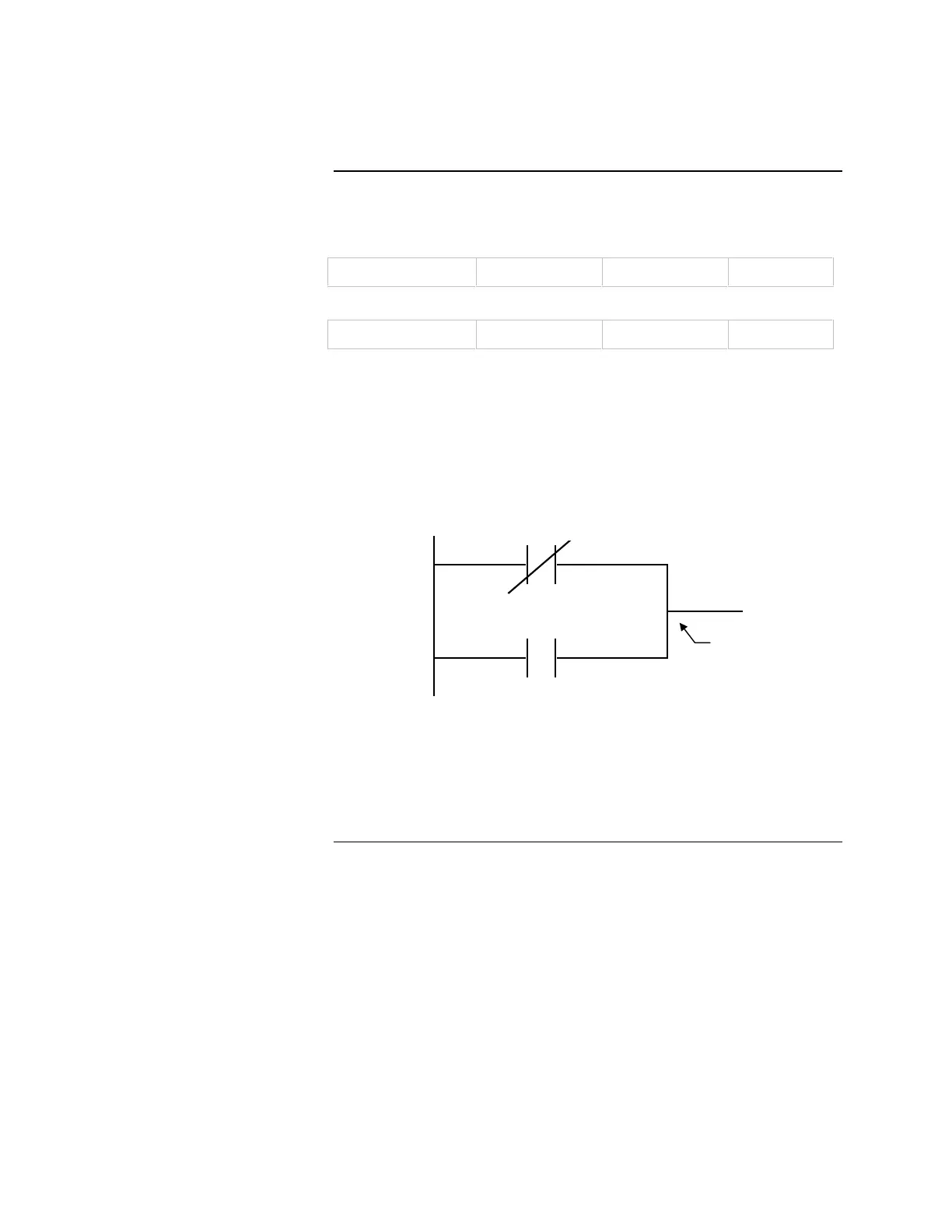

In Figure 3-9, IF the condition of 03-01 is Fire OR the condition of 03-02 is Fire,
then the INPUT SIDE is true. In order to cross from the INPUT SIDE of the
equation to the OUTPUT SIDE, one of the statements (03-01 or 03-02) must be
true.
03-01
03-02
Figure 3-9. An Example of How the OR Link Works
Continued on next page
Input Field 1, Continued
The OR Link operator
Points 03-01 and
03-02 in Parallel.
One statement or
the other must be
true in order to
go from the
INPUT to the
OUTPUT.
INPUT SIDE
(Statements 1 & 2)
OUTPUT SIDE
FIRST STATEMENT
SECOND STATEMENT
03-01
03-01
