Accessing Diagnostic values
17.2.2 Charging History 1-Day
A daily graph with the following values is in the Charging History 1-Day tab.
•
Charge
The battery’s charge levels throughout the day in watts.
•
Discharge
The battery’s discharge levels throughout the day in watts.
•
Charge Level (%)
The battery’s charge levels throughout the day as a percentage.
•
U (V)
The battery’s voltage curve throughout the day in volts.

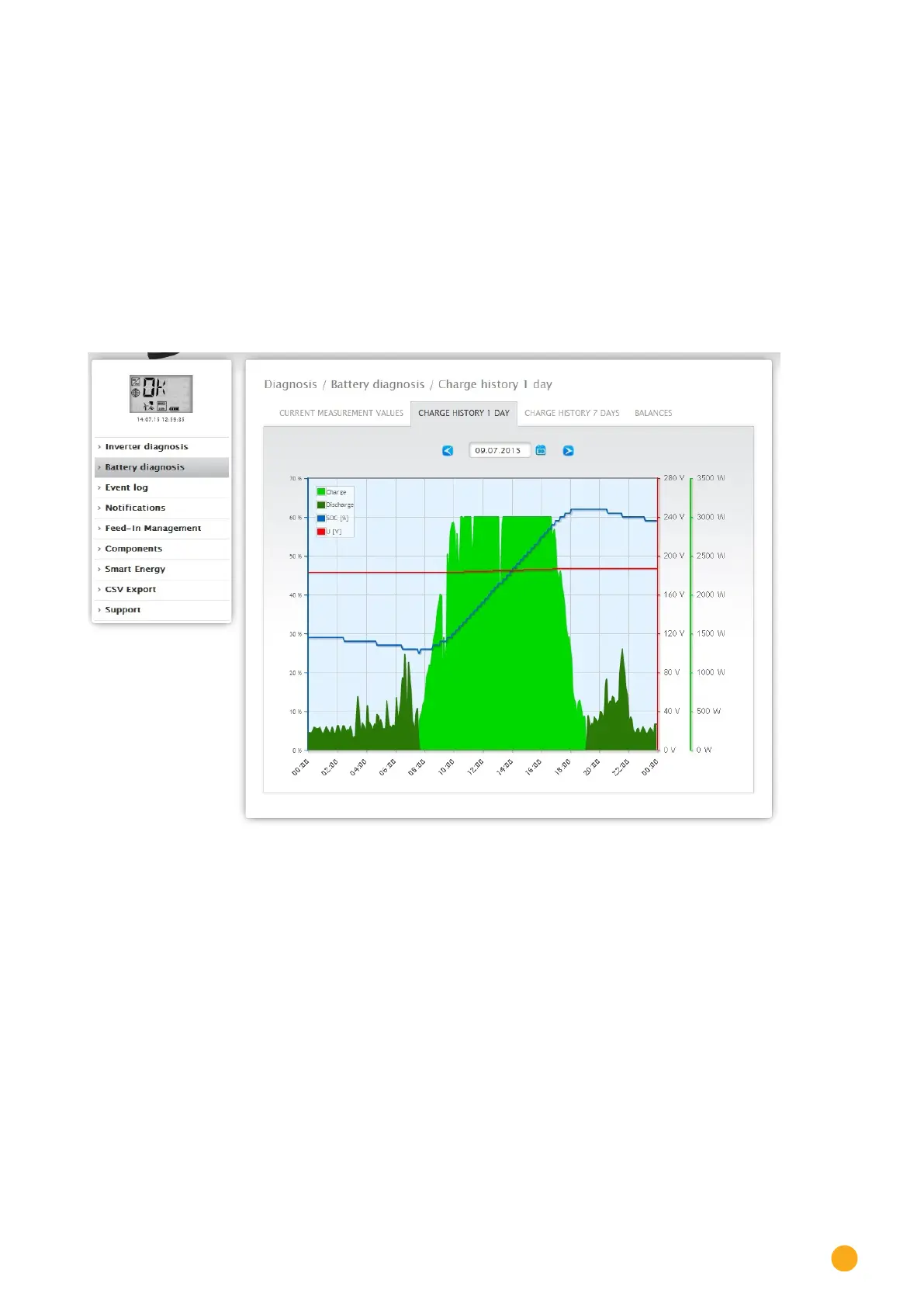

Fig.: Battery diagnosis - Charging History 1-Day
The Date box offers the option to select a particular day for viewing. The arrow keys can also be used to
move to the next or previous date.
The individual values, at the top-left of the graph key, can be displayed or hidden with a mouse click.
