Accessing Diagnostic values
Move the mouse cursor over the black line to display the following values for the power reductions:
•
Time
•
Percentage (%DC)
•
Watt
17.5.4 PM History
The power reductions are displayed in a table with three columns in the PM History tab.

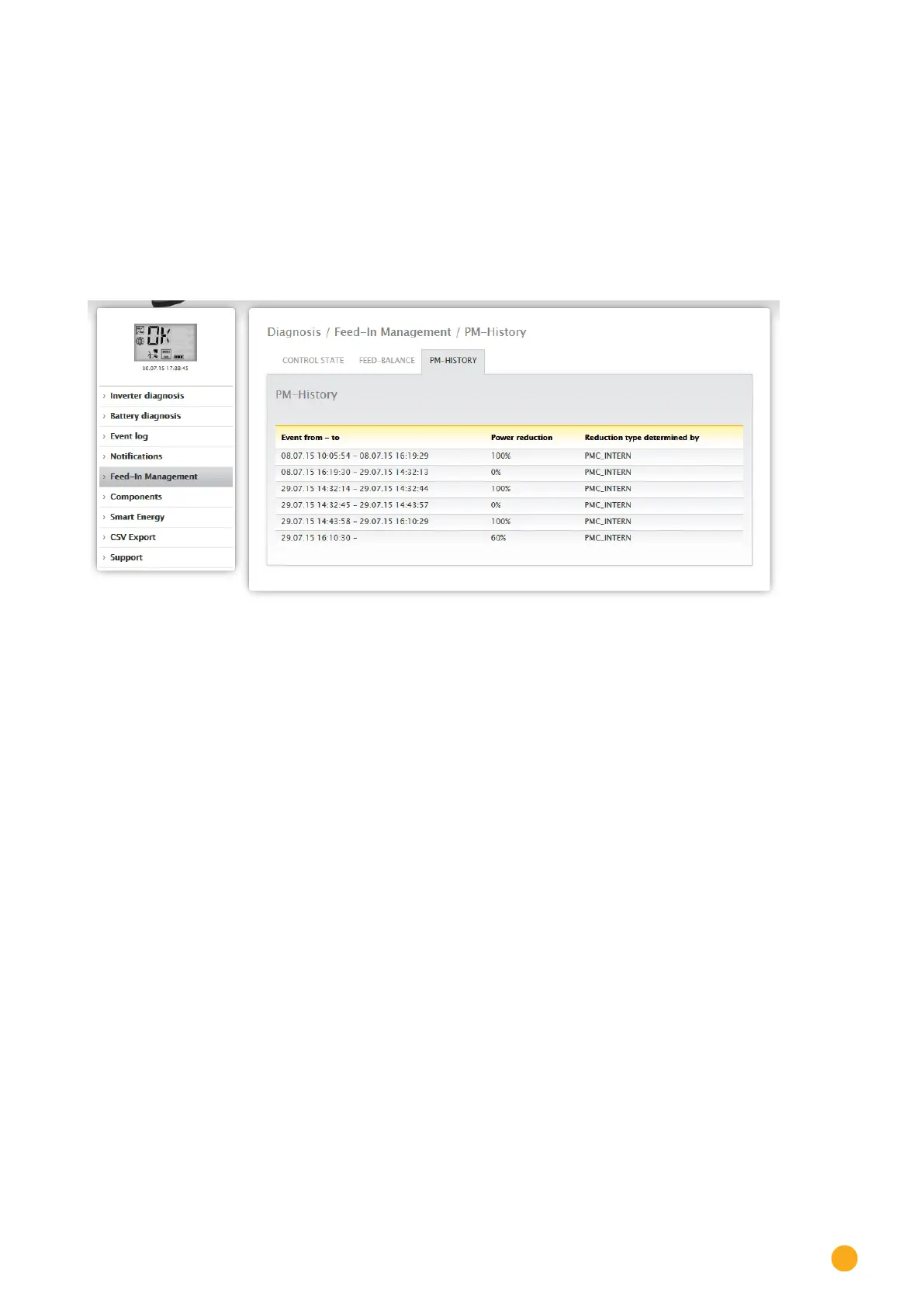

Fig.: PM History
•
Event from - to:
• The time and date that a power reduction was activated.
•
Power reduction type determined by:
Possible values in this column:
• PMC_NONE
• PMC_DIAG
• PMC_MODBUS_2
• PMC_MODBUS_1
• PMC_PROFILE
• PMC_INTERN
• PMC_DIRECTM
(For an explanation, refer to the section: “
Explanation of the Values in the Power Reduction “ in
the table “
Power reduction type determined by”).
•
Power reduction:
• The power reduction as a percentage.
Two additional tabs can be accessed in the Feed-In Management menu (as long as the devices are connec-
ted):
•
Utility Meter
•
I/O Box
There is a detailed guide for this in the Feed-In Management chapter of the Installation Manual.
