Unit connections
8.3 Solar-Log 2000
Top connections

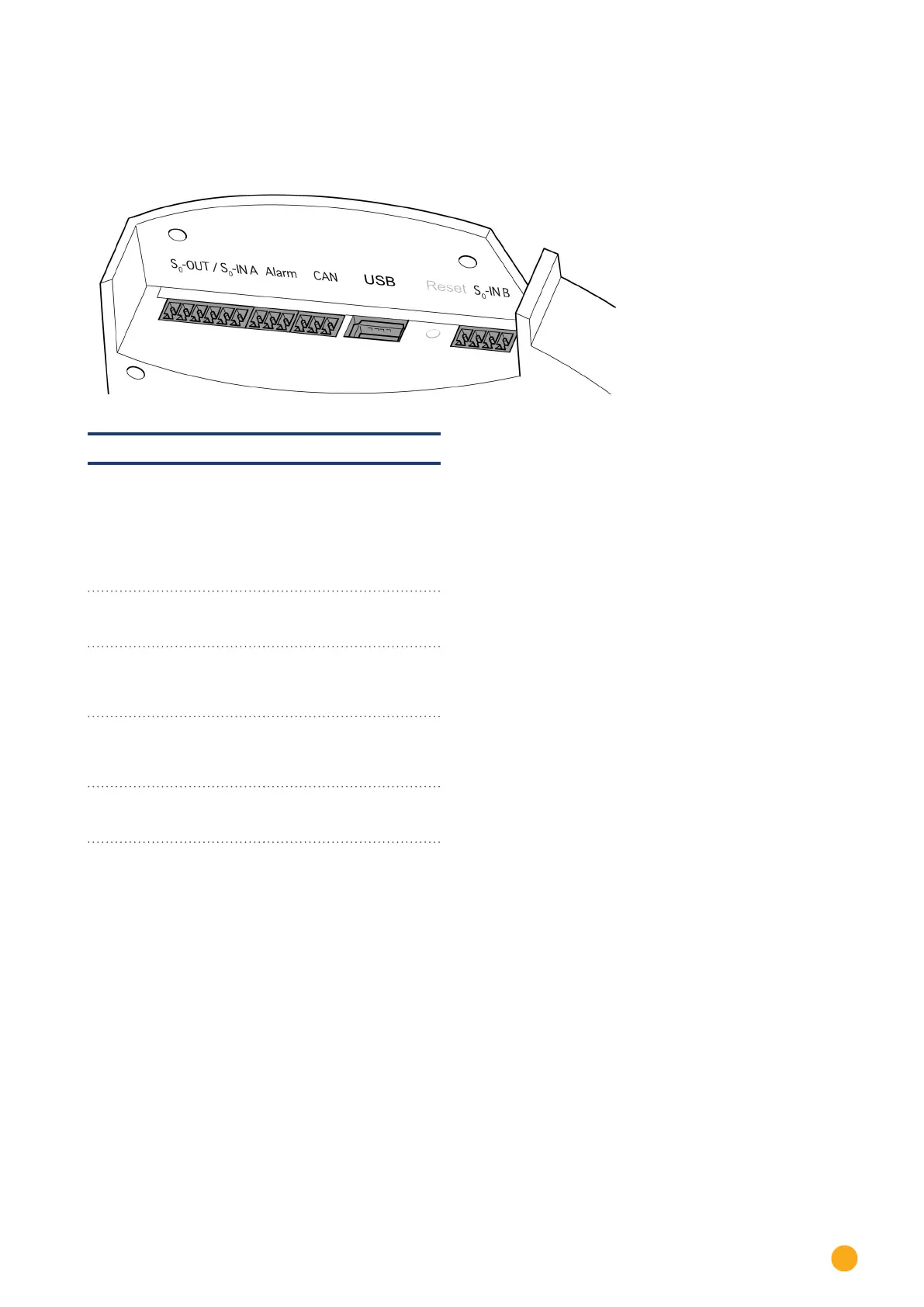

Fig.: Top Connections Solar-Log 2000
Solar-Log 2000
S0-Out
S0-IN A
S0 pulse output for
connecting to a large
external screen. S0 pulse
input for connection to
an external power meter.
Please note the connection
characteristics of the S0
connection.
Alarm Connection for contact
strip for anti-theft protec
-
tion.
CAN CAN bus — which, for
example, can be used to
connect Voltwerk, Conergy
or Suntechnics inverters
USB USB connection. Suitable
for USB sticks.
Not suitable for a connecti
-
on to a PC
S0-IN B S0 pulse input for connec
-
tion to an external power
meter.
