Solar-Log 2000 User Manual

225
Accessing Yield Data
Battery:
•
Charge Level (%):
• Red, battery is being charged.
•
Discharge (W)
• Green, battery is being discharged.
18.1.2 Table
The output recorded from the connected devices is displayed as a table in Table tab.

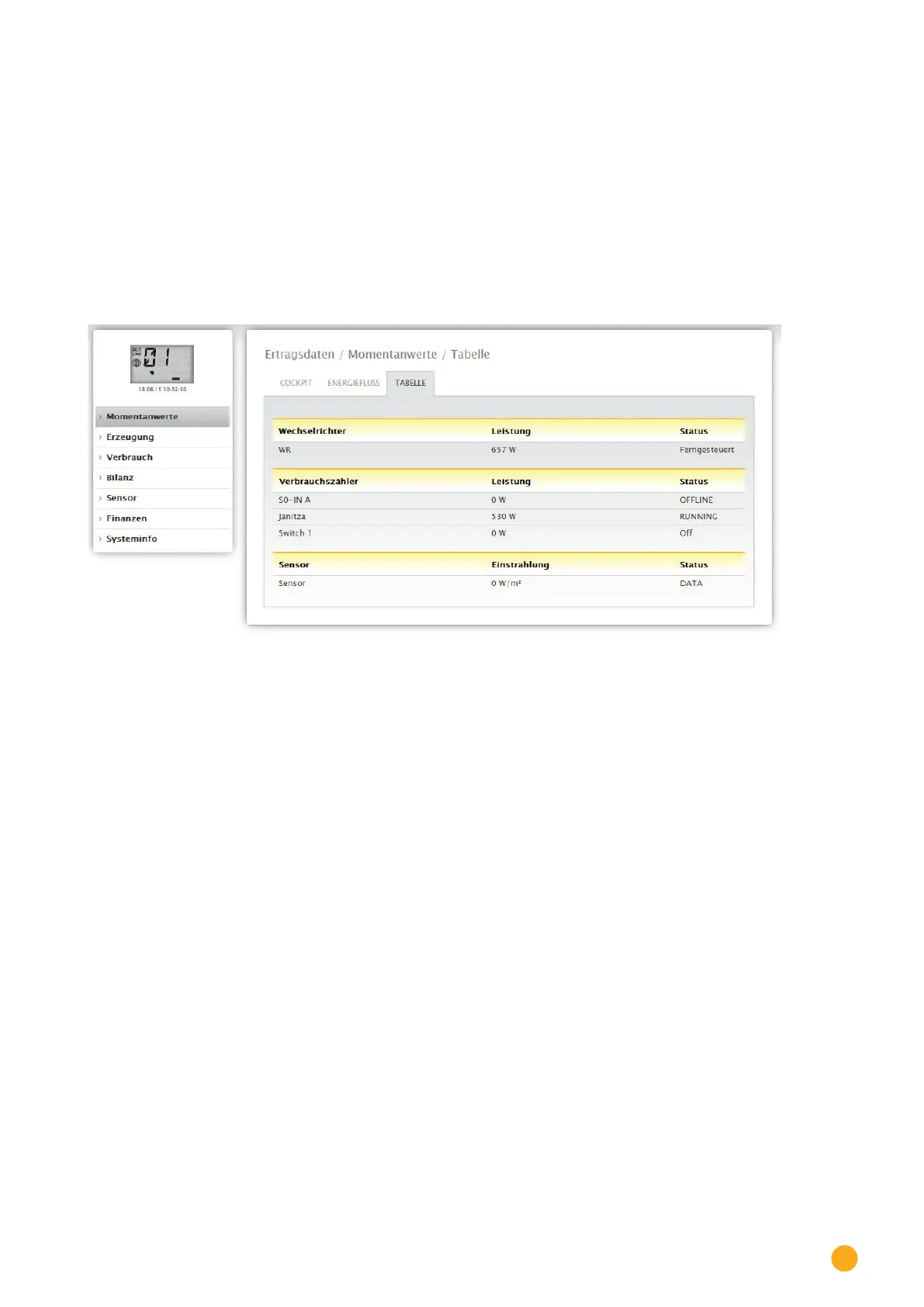

Fig.: Table with the recorded output from an example plant
Depending on the particular device connected, the following values are displayed:
•
The current output from each individual inverter.
•
The total current consumption as measured by the consumption meters.
•
The current irradiation per m
2
as measured by the sensor.
•
The values from the battery with the columns Charge/Discharge, Charge Level (%) and Status.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
