Solar-Log 2000 User Manual

231
Accessing Yield Data
18.2.3 Year view
The tab Year displays the monthly yields from the year as a total in a bar graph.
•
Move the mouse above one of the bars to display the monthly yield with a comparison of the cur-
rent and target values in regard to the annual forecast.
•
Click on a bar to go to the corresponding month view.

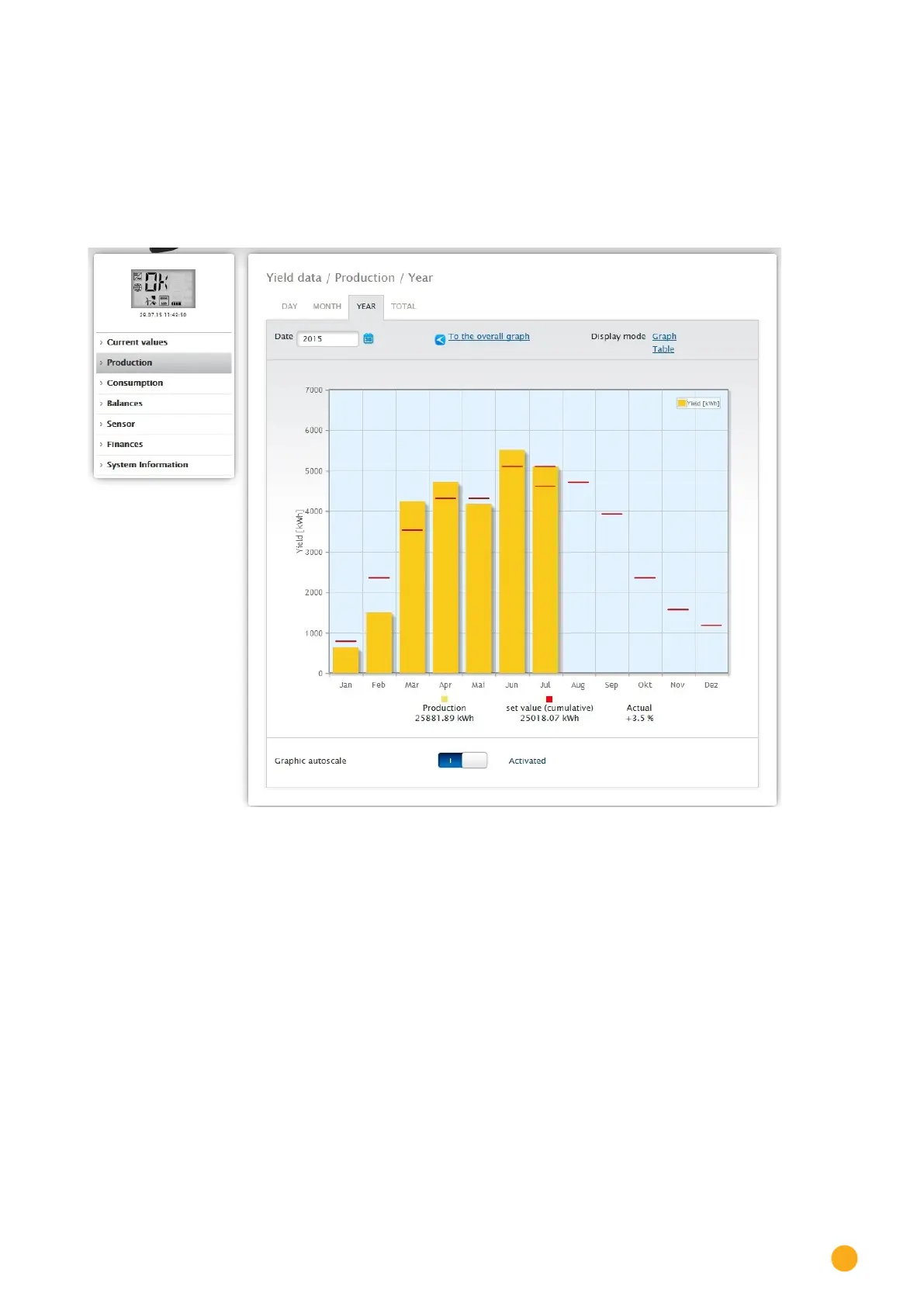

Fig.: Year view graph
When you click on Table, the annual values for the entire year are allocated to each month according to
the actual output generated.

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
