Solar-Log 2000 User Manual

305
Appendix
25.4.2 Variation with two relays
Specifications
Ripple control receiver signals
Level K5 K6 Power out-
put
1 Off Off 100%
2 On Off 60%
3 Off On 30%
4 On On 0%
Wiring

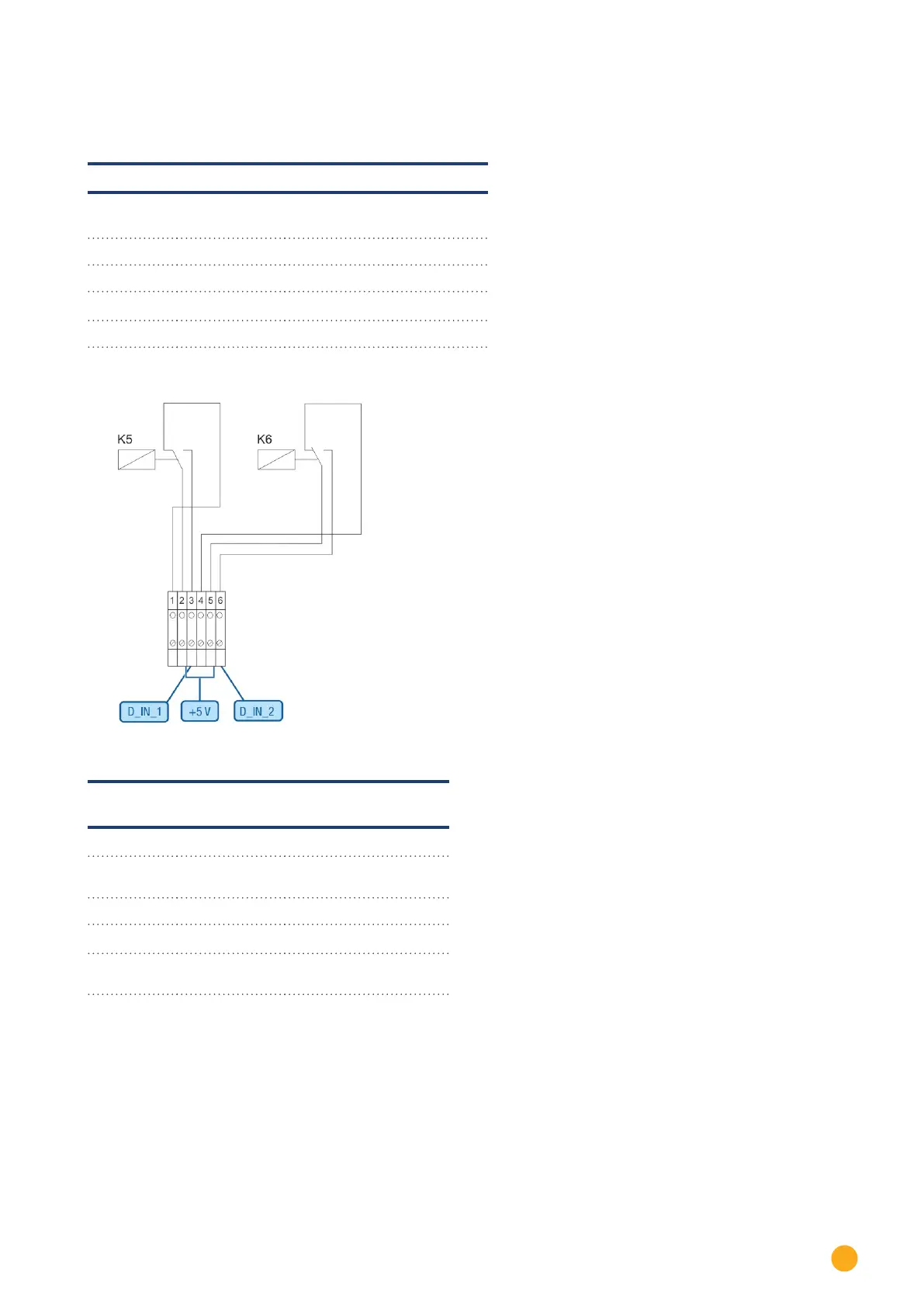

Fig.: Wiring a ripple control receive with two relays - example 2
Connecting PM+ terminal connector
and ripple control receiver
PIN Assignment Meaning
1 +5V Control voltage for active
power
2 D_IN_1 K5 switched
3 D_In_2 K6 switched
6 +5V Control voltage for reac
-
tive power (unused)

Solar-Log 2000 Specifications

General

Device Type	Data Logger
Max Inverters	100
Power Supply	24 V DC
Remote Monitoring	Yes
Ethernet interface	Yes
Communication Interfaces	RS485, Ethernet
Protocols	Modbus
Data Storage	Internal
