Unit connections
8.2 Solar-Log 1200
Top connections

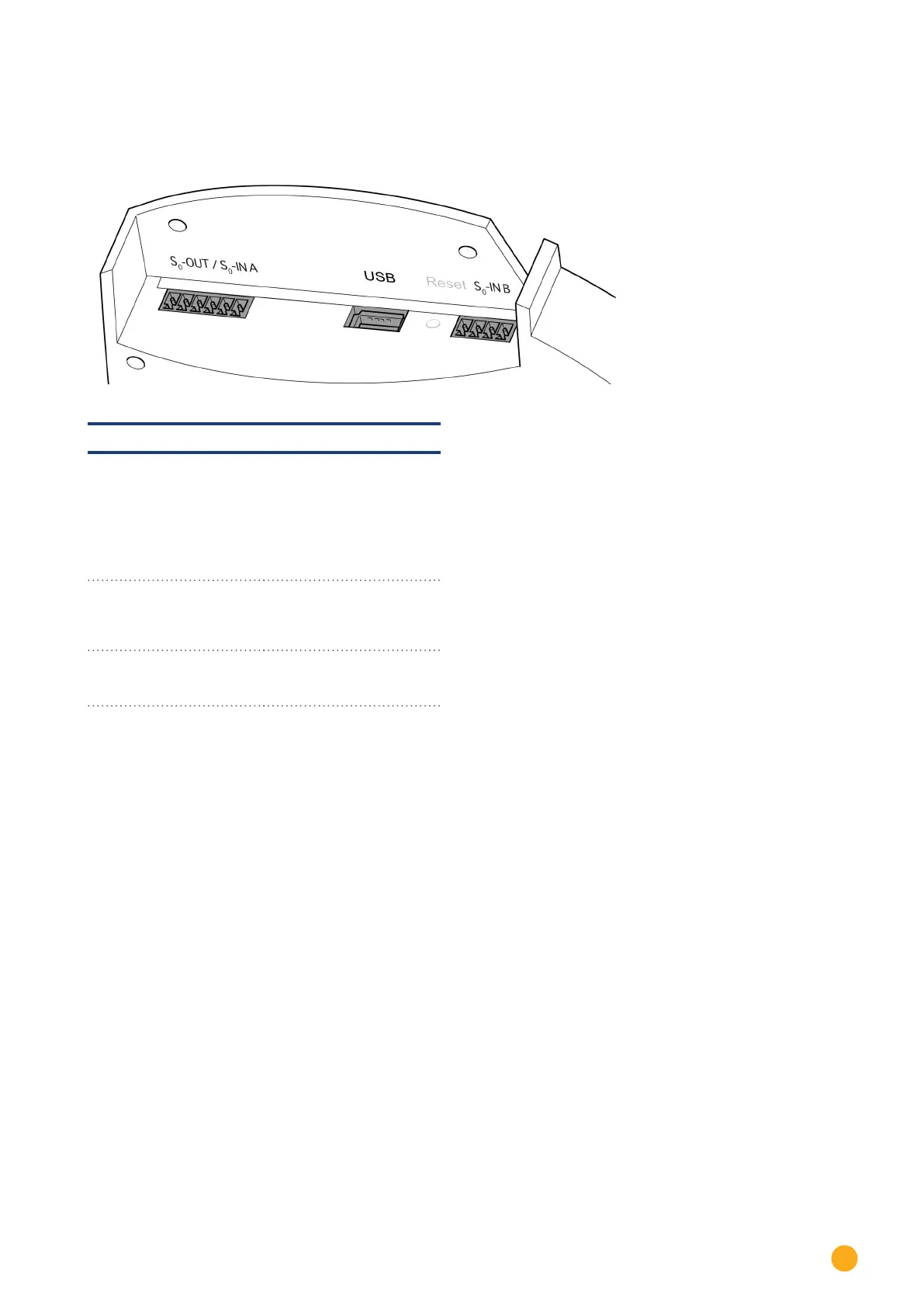

Fig.: Top Connections Solar-Log 1200
Solar-Log 1200
S0-Out
S0-IN A
S0 pulse output for
connecting to a large
external display. S0 pulse
input for connection to
an external power meter.
Please note the connection
characteristics of the S0
connection.
USB USB connection. Suitable
for USB sticks.
Not suitable for a connecti
-
on to a PC
S0-IN B S0 pulse input for connec
-
tion to an external power
meter.
