241
Accessing Yield Data
18.4.1 Day balance
The Day tab under Balances displays the production, consumption and self-consumption side-by-side as
a day curve. The values in the diagram key, can be selected and deselected at anytime with a left-click to
display individual values (curve) or to display or hide all values (curves).
With a right-click, all of the values (curves) other than the one selected can be hidden.
Different values with different units are displayed in the graph. The units used and their colors are defined
in the key at the top.
The different values throughout the day can be displayed by moving the mouse along the curve.

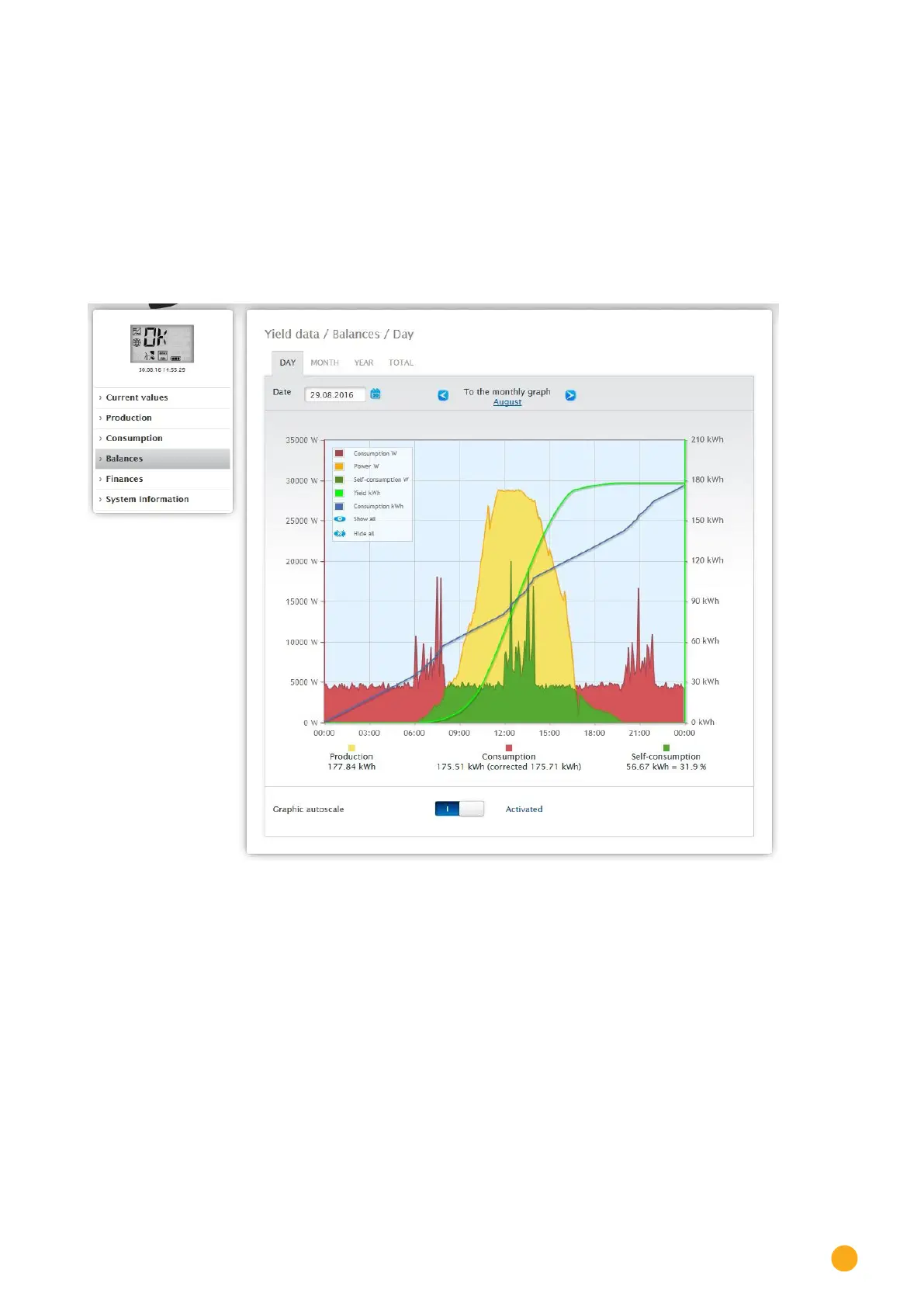

Fig.: Daily Balance Graph with the Auto Scaling activated
The following data is graphically displayed in the daily balance:
Production (kWh)
Consumption (kWh) (If the daily consumption value is modified with the data correction function,
the modifications are displayed in brackets.)
Self-consumption
The meaning of the colored areas in the day curve:
The green areas display the amount of consumption that was covered with PV power. The yellow areas
display the surplus of PV-generated power and the red areas display the amount of consumption that was
not covered with PV power.
You have a choice between the Graph and Table display mode.
General definition of the different colored areas within the balance graphs:
(see figure: Daily Balance Graph)
