Category 2 version
NOTE
The category 2 and category 3 versions of the
trucks have different battery male connectors.
The specific features of the category 2 version
are described here. The battery male connec-
tors on the category 2 version are non-inter-
changeable.
●
The "positive" battery male connector (red
marking) is routed through two grooves.
●
The "negative" battery male connector (blue
marking) is routed through one groove.

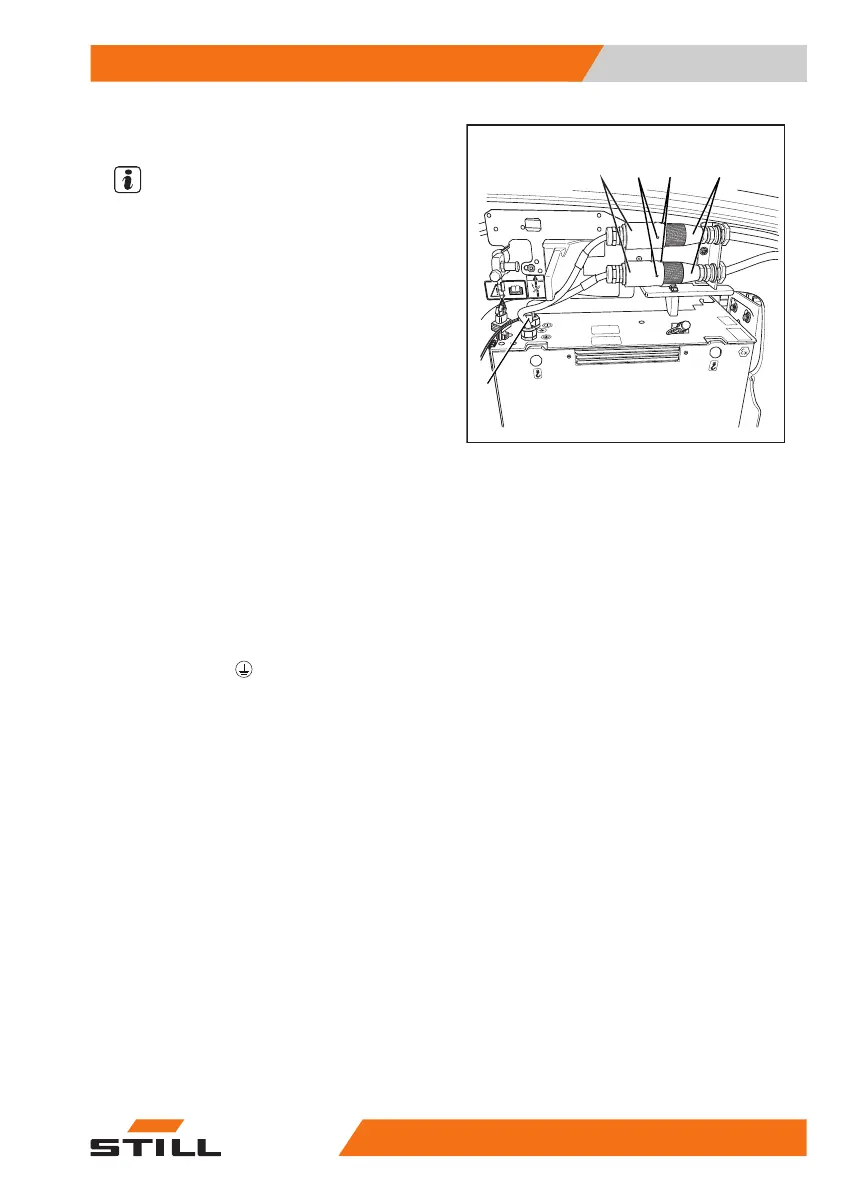

– Open the battery door.
– Loosen the screws (2).
– Disconnect the battery male connectors (2)
from the sockets (3) by unscrewing the bat-
tery male connectors out of the grooves (4).
– Screw the screws (1) back in, so that they
do not get lost.
– Before removing the battery also disconnect
the potential equalisation (5).
The potential equalisation point is marked with
decal information
.
– Close the battery door.
Category 3 version
– Open the battery door.
6219_901-020
123 4
5
Operation
4
Connecting and disconnecting the battery male connector
39156368011531 EN - 01/2021 - 05
