Operating & Maintaining the Objet1000 Plus 3D Printer
6–28
DOC-06810 Rev. A
4. Removethefive(5)screwsthatsecuretheUVbrackettotheprint
blockandremovethebracket.

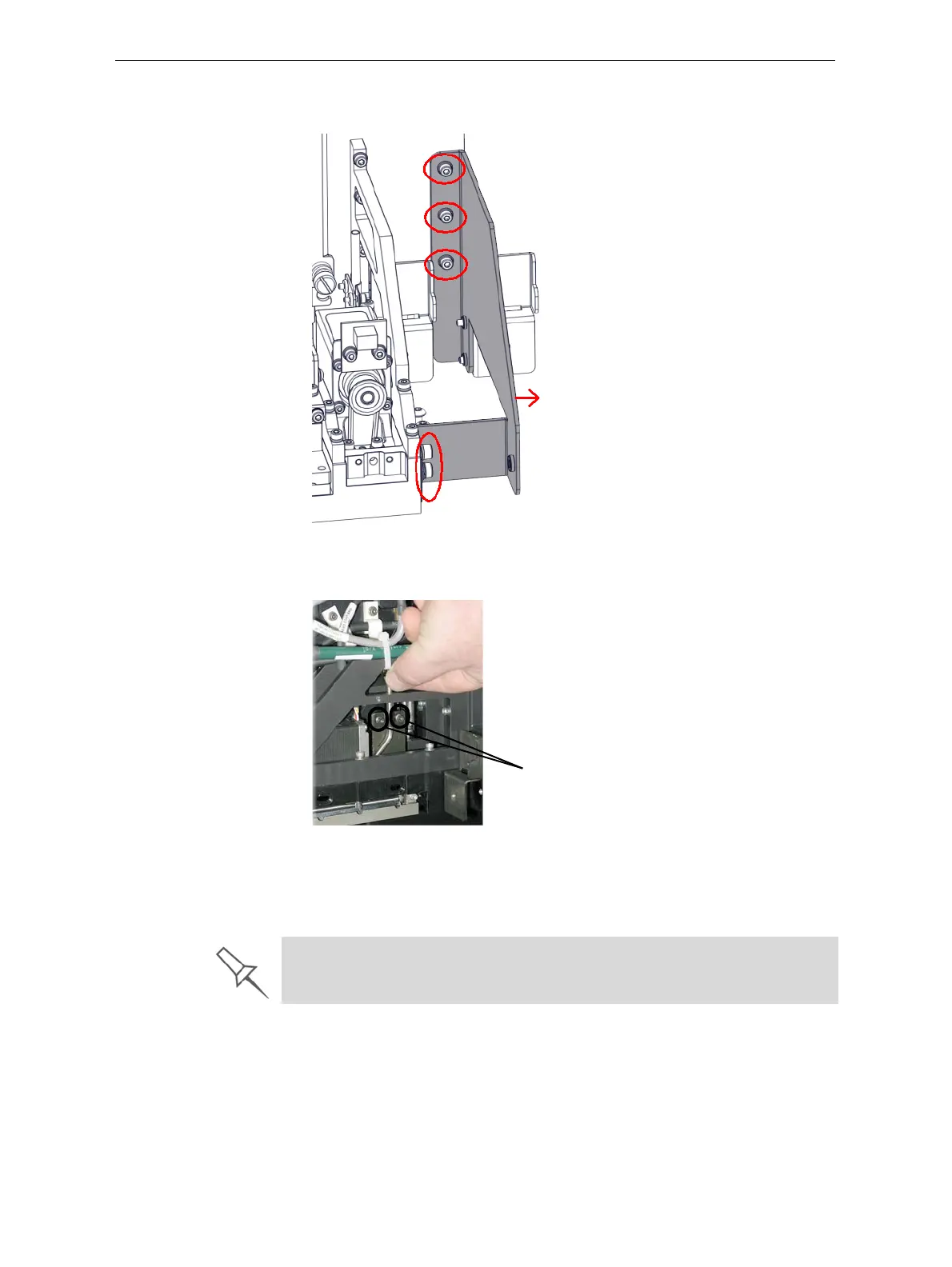

Figure 6-30: Removing the UV bracket
5. Loosenthetwoscrewssecuringthesuctiontubeontheprintblock.
Figure 6-31: Lifting the suction tube
6. Liftthesuctiontubetosecureitinaraisedposition.
7. Removethetwoscrewssecuringthecoveringoftherollerwaste
collectorandremoveit.
Suction tube screws
Be very careful to save the covering screws. These are special screws; if
they are lost, you need to order replacements.
