8A-3 Seat Belts:
Repair Instructions
Front Seat Belt Components
S7RS0B8106001
WARNING
!
• Never attempt to disassemble or repair the seat belt pretensioner (retractor assembly). If any
abnormality is found, be sure to replace it with new one as an assembly.
• Be sure to read “Precautions on Service and Diagnosis of Seat Belt” before starting to work and
observe every precaution during work. Neglecting them may result in personal injury or
unactivation of the seat belt pretensioner when necessary.
(a)
(a)
(a)
1
2
3
5
a)
b)
(a)
3
7
(b)
6
2
4
(a)
7
8
10
9
7
2
11
9
10
12

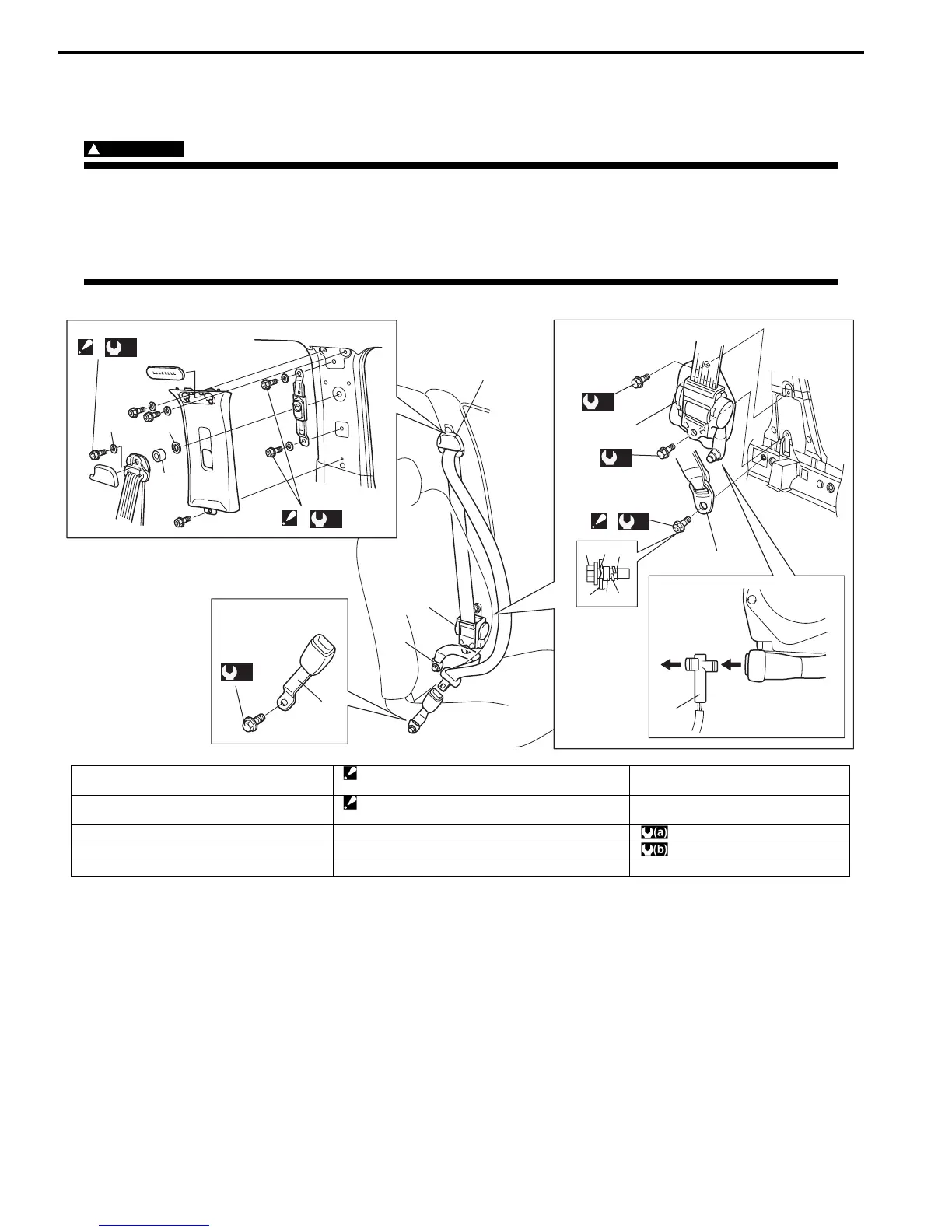

I6RS0C810001-01
1. Upper anchor 6. Shoulder adjuster mounting bolt
: Tighten upper bolt first, then tighten lower bolt.
11. Spring washer
2. Lower anchor 7. Anchor bolt
: Tighten upper bolt first, then tighten lower bolt.
12. Wave washer
3. Retractor assembly 8. Cushion : 43 N⋅m (4.3 kgf-m, 31.5 lb-ft)
4. Buckle 9. Spacer : 5.5 N⋅m (0.55 kgf-m, 4.0 lb-ft)
5. Yellow connector (for seat belt pretensioner) 10. Washer
