9J-3 Hood / Fenders / Doors:

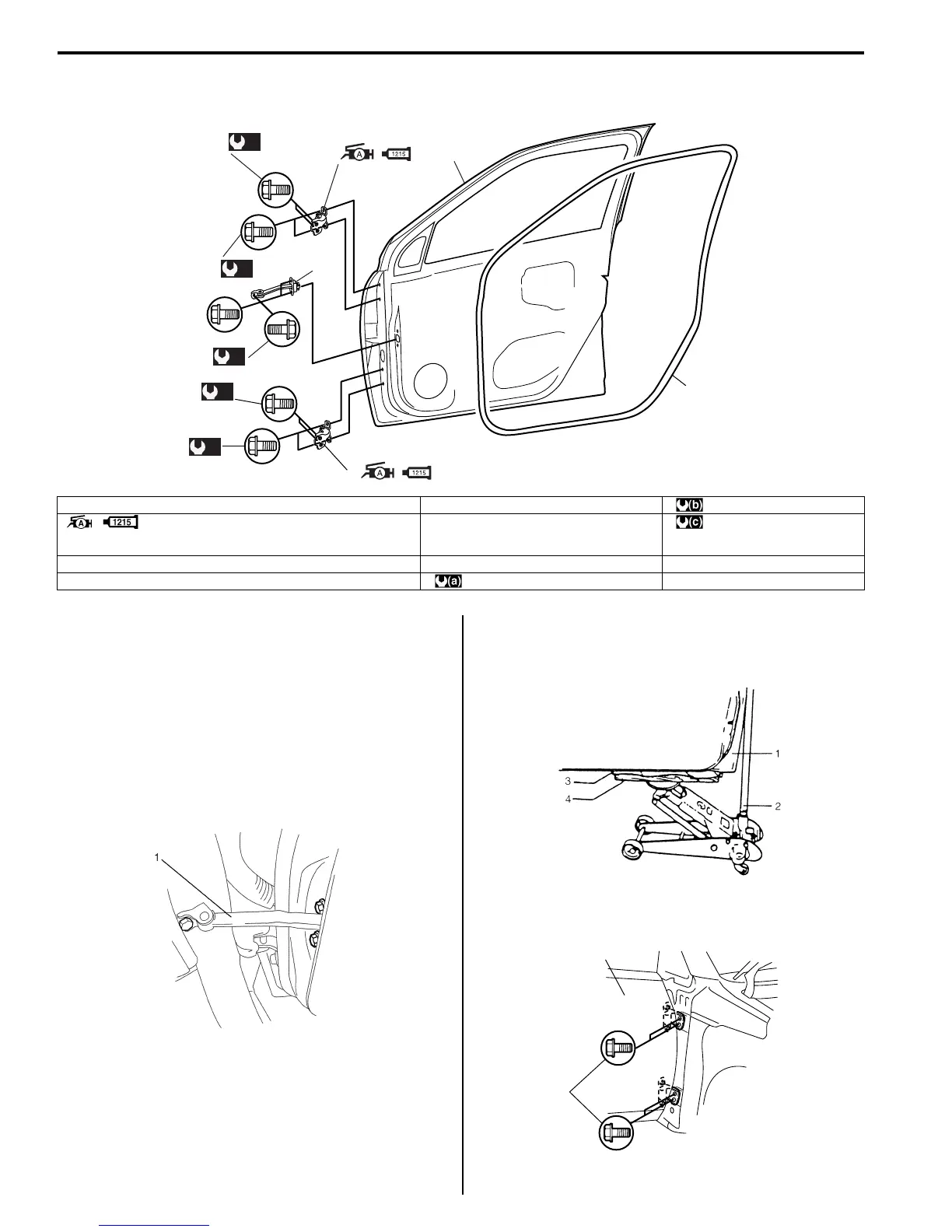

Front Door Assembly Components
S7RS0B9A06005
Front Door Assembly Removal and Installation
S7RS0B9A06006
Removal
1) Remove front fender referring to “Front Fender
Components”.
2) Remove door trim referring to “Front Door Glass
Removal and Installation in Section 9E”.
3) Disconnect door harness lead wires at each coupler.
4) Remove door open stopper (1).
5) Support door panel (1) using a jack (2) with rags (3)
and a piece of wood (4) placed between jack (2) and
panel (1) as shown.
6) Remove door assembly (1) by loosening hinge
mounting bolts (2).
2
2
1
(a)
4
(a)
4
3
(b)
7
(b)
7
(c)
5
6
I4RS0A9A0004-01
1. Door panel 5. Door open stopper bolt : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
2. Door hinge
: Apply lithium grease 99000-25010 to rotating part.
: Apply sealant 99000-31110 to contact face.
6. Front door opening weather-strip : 21 N⋅m (2.1 kgf-m, 15.5 lb-ft)
3. Door open stopper 7. Front door hinge bolt (door side)
4. Front door hinge bolt (body side) : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft)
I4RS0A9A0005-01
I2RH019A0003-01
1
2
I4RS0A9A0006-01
