Engine Mechanical: 1D-24

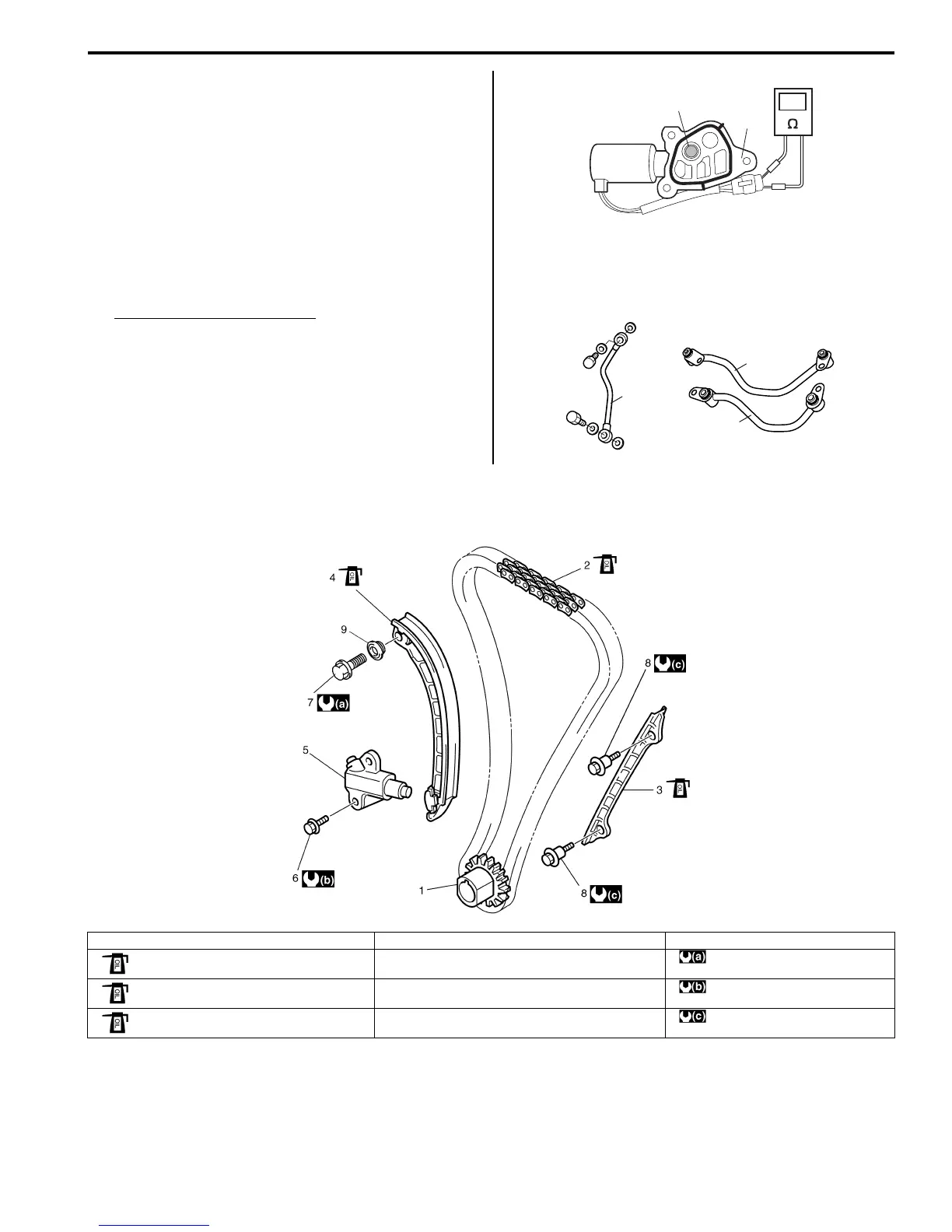

Oil Control Valve Inspection
S7RS0B1406016
Oil Control Valve
1) Inspect strainer (1) and mating surface (2) of oil
control valve for clog or damage. Clean oil control
valve if clog or foreign matter is present on strainer
or mating surface of oil control valve.
Replace oil control valve if its mating surface is
damaged.
2) Check resistance between terminals of oil control
valve.
Oil control valve resistance
6.7 – 7.7 Ω (at 20 °C (68 °F))
Oil Gallery Pipe
Inspect oil gallery pipes No.1, No.2 (2) and No.3 (3).
Replace if crack, deformation or clog exists.
Timing Chain and Chain Tensioner Components
S7RS0B1406017
1
2
I3RM0A140028-01
1
3
2
I3RH0B140030-01
I4RS0A140012-04
1. Crankshaft timing sprocket 5. Timing chain tensioner adjuster assembly 9. Spacer
2. Timing chain
: Apply engine oil.
6. Chain tensioner adjuster mounting bolt : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
3. Timing chain No.1 guide
: Apply engine oil to sliding surface.
7. Timing chain tensioner bolt : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
4. Timing chain tensioner
: Apply engine oil to sliding surface.
8. Timing chain No.1 guide bolt : 9 N⋅m (0.9 kgf-m, 6.5 lb-ft)
