Air Bag System: 8B-9
Component Location

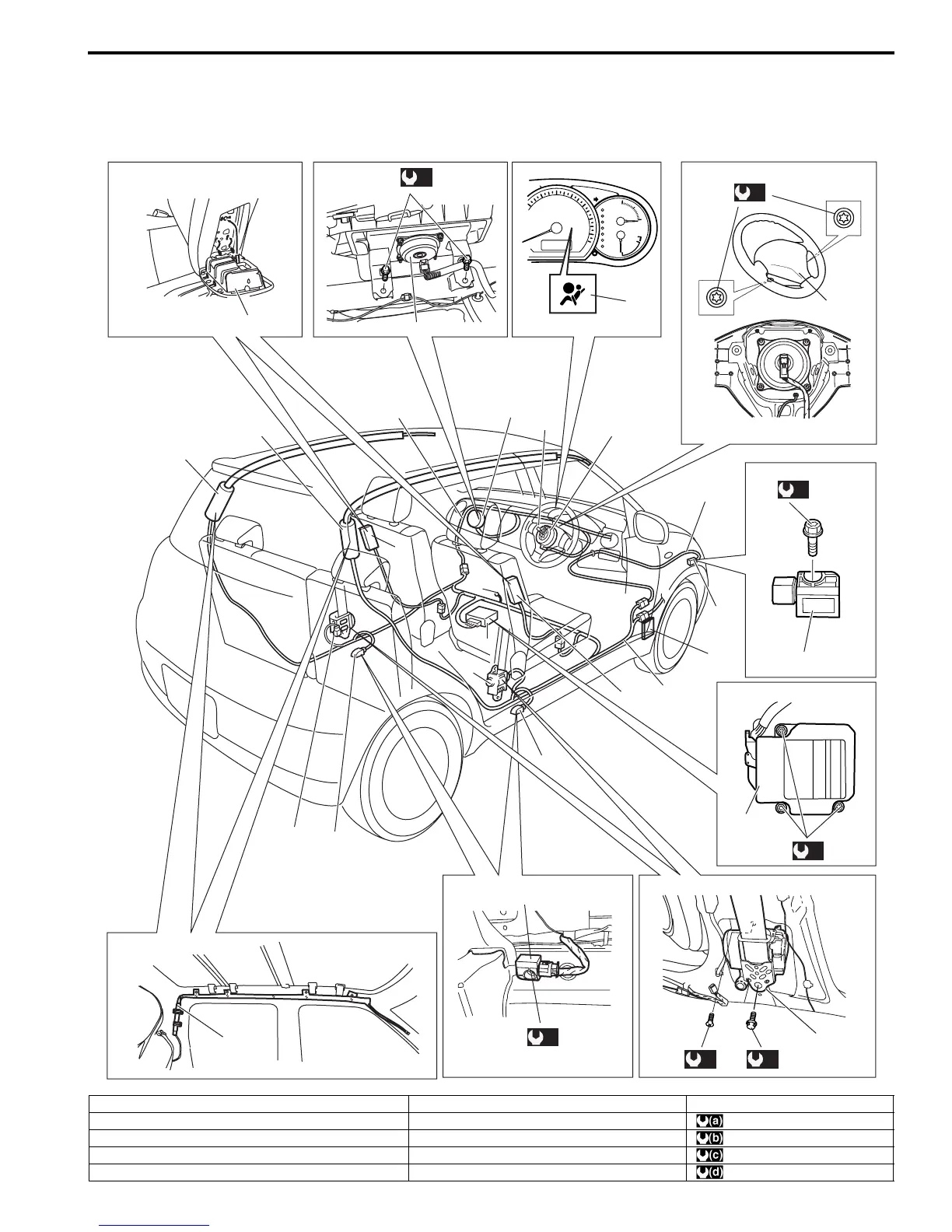

Air Bag System Components, Wiring and Connectors Location
S7RS0B8203001
5
2
10
(a)
(b)
(b)
(b)
(b)
(c)
(d)
1
1
2
3
4
5
6
7
8
8
8
9
10
11
11
12
12
11
12
13
13
13
15
14
I4RS0A820007-01
1. Passenger air bag (inflator) module 8. Side-air bag (inflator) module (if equipped) 15. “AIR BAG” warning right
2. Driver air bag (inflator) module 9. Ground for air bag system : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Contact coil assembly 10. SDM : 9 N⋅m (0.9 kgf-m, 6.5 lb-ft)
4. Air bag harness in main harness 11. side-sensor (if equipped) : 43 N⋅m (4.3 kgf-m, 31.5 lb-ft)
5. Forward-sensor 12. Seat belt pretensioner : 5.5 N⋅m (0.55 kgf-m, 4.0 lb-ft)
