Hood / Fenders / Doors: 9J-2
Front Fender Components
S7RS0B9A06003
Front Fender Removal and Installation
S7RS0B9A06004
Removal
1) Remove splash guard (if equipped) referring to “Splash Guard (If Equipped) Components in Section 9M”.
2) Remove front fender lining.
3) Remove front bumper referring to “Front Bumper and Rear Bumper Components in Section 9K”.
4) Remove headlight assembly referring to “Headlight Housing Removal and Installation in Section 9B”.
5) Disconnect connector from side turn signal lamp.
6) Remove front fender cover.
7) Remove front fender.
Installation
Reverse removal procedure to install front fender noting the following instruction.
• If paint on fender bolt is peeled off, be sure to apply paint again.
• Adjust panel clearance referring to “Panel Clearance in Section 9K”.
1
2
3
I4RS0A9A0003-01

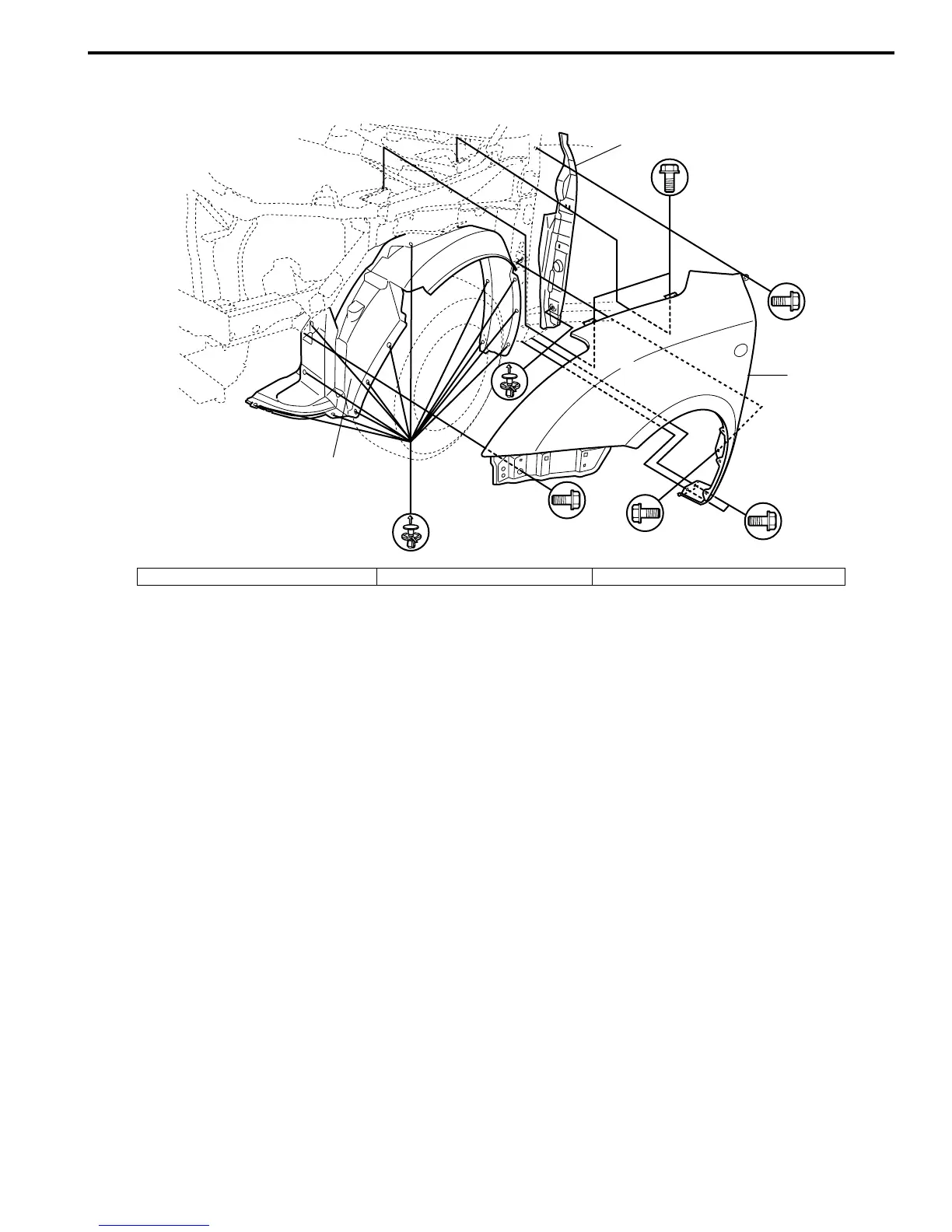

1. Front fender lining 2. Front fender 3. Front fender cover
