2C-10 Rear Suspension:
Rear Wheel Hub Components
S7RS0B2306011
Rear Wheel Hub Removal and Installation
S7RS0B2306012
Removal
1) Hoist vehicle and remove wheel.
2) Remove rear brake caliper assembly and rear brake
disc referring to “Rear Brake Disc Removal and
Installation in Section 4C”.
3) Remove spindle cap (1) by hammering lightly at 3
locations around it so as not to deform or cause
damage to seating part of cap.
4) Uncaulk and remove rear axle nut (2).
5) Using special tools, draw out wheel hub (1).
Special tool
(A): 09943–17912
(B): 09942–15511
6) Remove wheel stud bolt (1) from wheel hub (2) by
using hydraulic press (3).
(b)
5
4
3
(a)
2
1
6

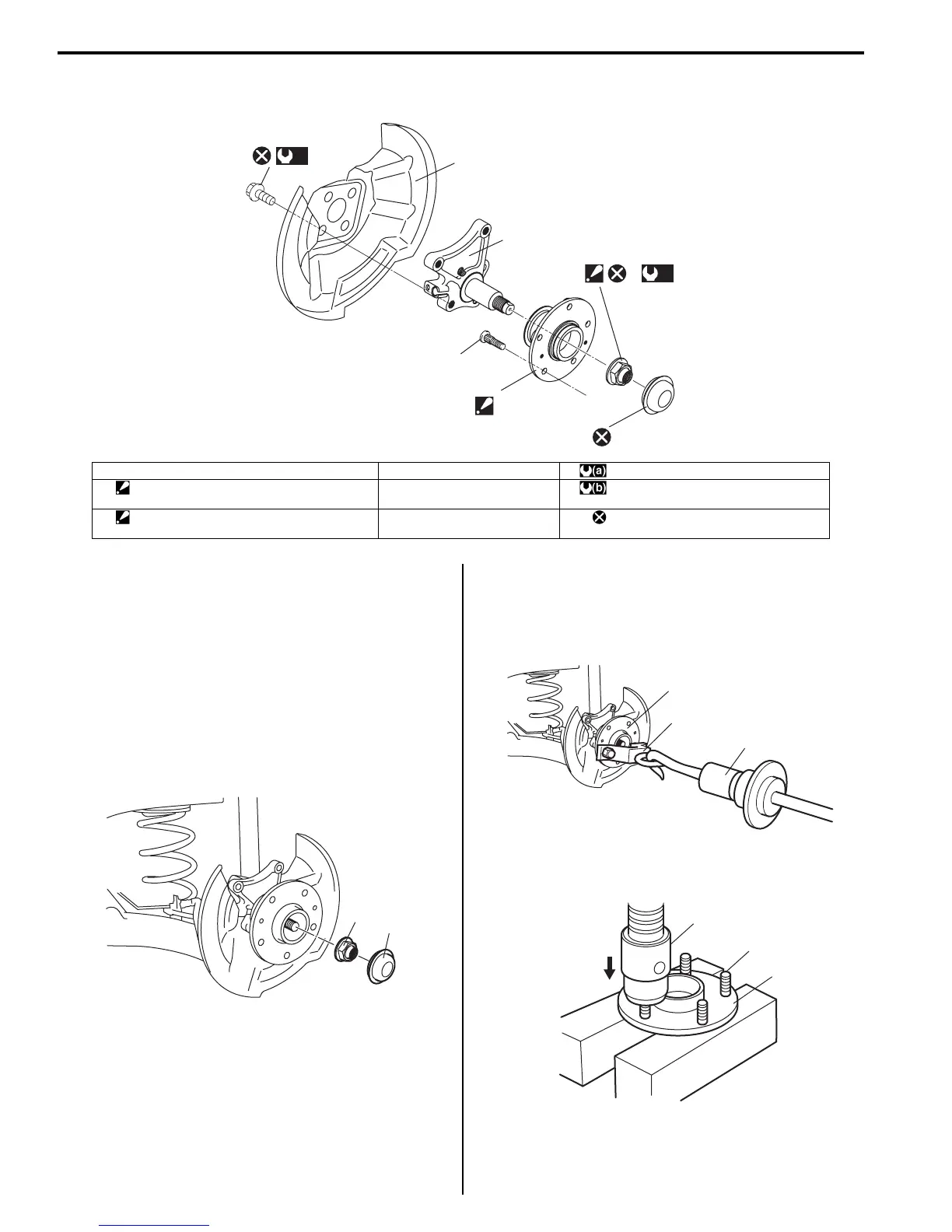

I6RS0C230002-03
1. Spindle cap 4. Spindle : 175 N⋅m (17.5 kgf-m, 126.5 lb-ft)
2. Rear axle nut
:Calk, after Tightening
5. Disc dust cover : 88 N⋅m (8.8 kgf-m, 64.0 lb-ft)
3. Rear wheel hub
:Never disassemble wheel hub assembly
6. Hub bolt : Do not reuse.
2
1
I6RS0B230010-01
1
(A)
(B)
I6RS0B230011-01
1
3
2
I6RS0C230003-01
