ABS: 4E-34
Rear Wheel Speed Sensor Inspection
S7RS0B4506009
Refer to “Front Wheel Speed Sensor Inspection” since
rear wheel speed sensor is the same as front wheel
speed sensor.

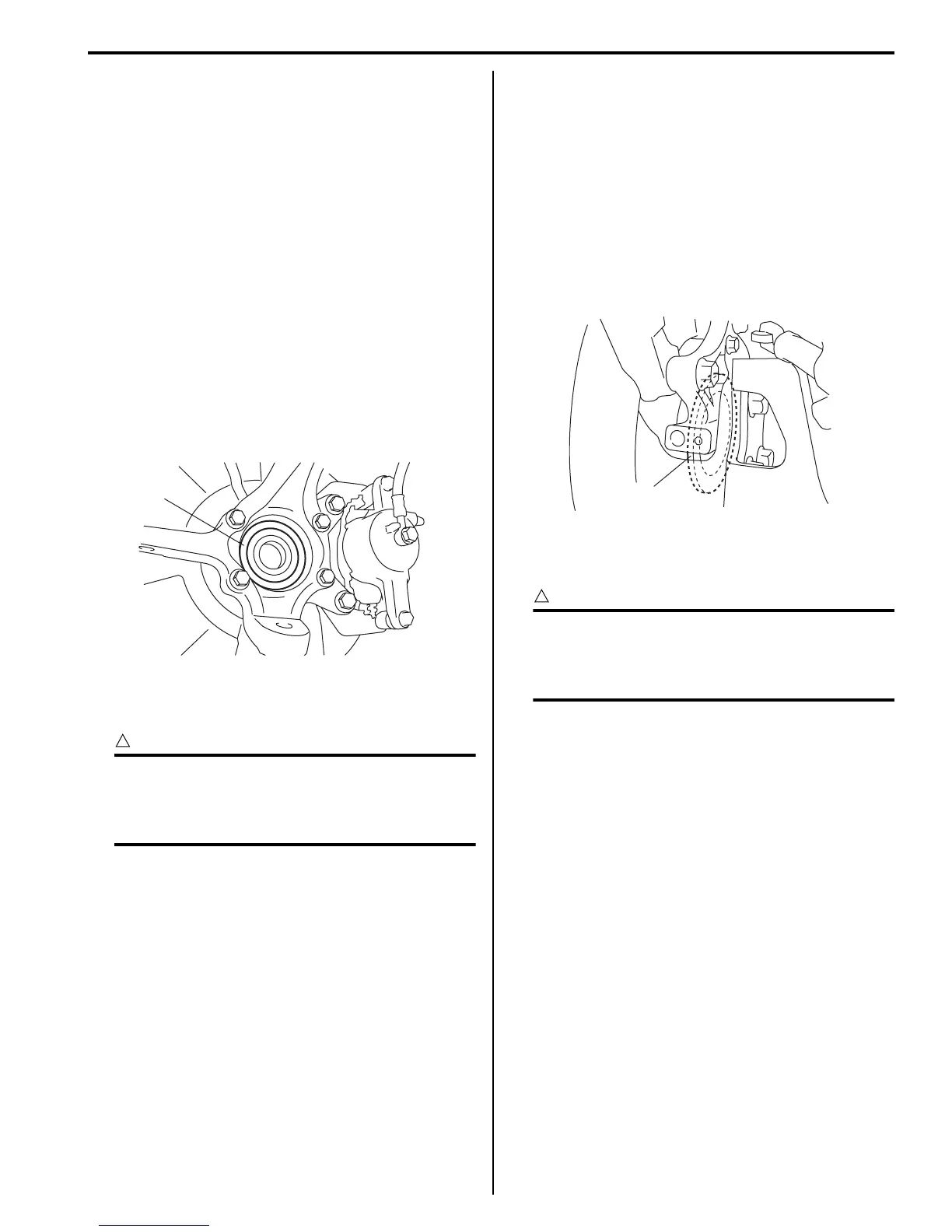

Front Wheel Encoder On-Vehicle Inspection
S7RS0B4506010
Before inspect front wheel encoder, remove front drive
shaft or front wheel spindle referring to “Front Drive Shaft
Assembly Removal and Installation in Section 3A”.
Check encoder (1) for being crack, damaged or
deformed.
Turn wheel and check if encoder rotation is free from
eccentricity and looseness.
Check that no foreign material is attached.
If any faulty is found, clean encoder or replace wheel
bearing. Refer to “Front Wheel Hub, Steering Knuckle
and Wheel Bearing Removal and Installation in
Section 2B”.
Front wheel Encoder Removal and Installation
S7RS0B4506011
CAUTION
!
Front wheel encoder is included in front
wheel bearing. If front wheel encoder needs
to replaced, replace it as a front wheel
bearing.
For removal and installation of front wheel bearing,
referring to “Front Wheel Hub, Steering Knuckle and
Wheel Bearing Removal and Installation in Section 2B”.
Rear Wheel Encoder On-Vehicle Inspection
S7RS0B4506012
Before inspect rear wheel encoder, hoist vehicle and
remove wheel.
Check encoder (1) for being crack, damaged or
deformed.
Turn wheel and check if encoder rotation is free from
eccentricity and looseness.
Check that no foreign material is attached.
If any faulty is found, clean encoder or replace rear
wheel hub assembly. Refer to “Rear Wheel Hub
Removal and Installation in Section 2C”.
Rear Wheel Encoder Removal and Installation
S7RS0B4506013
CAUTION
!
Rear wheel encoder is included in rear wheel
hub assembly. If rear wheel encoder needs to
replaced, replace it as a rear wheel hub
assembly.
For removal and installation of front wheel hub
assembly, referring to “Rear Wheel Hub Removal and
Installation in Section 2C”.
1
I5JB0A450034-01
1
I6RS0B460038-03
