Glass / Windows / Mirrors: 9E-8

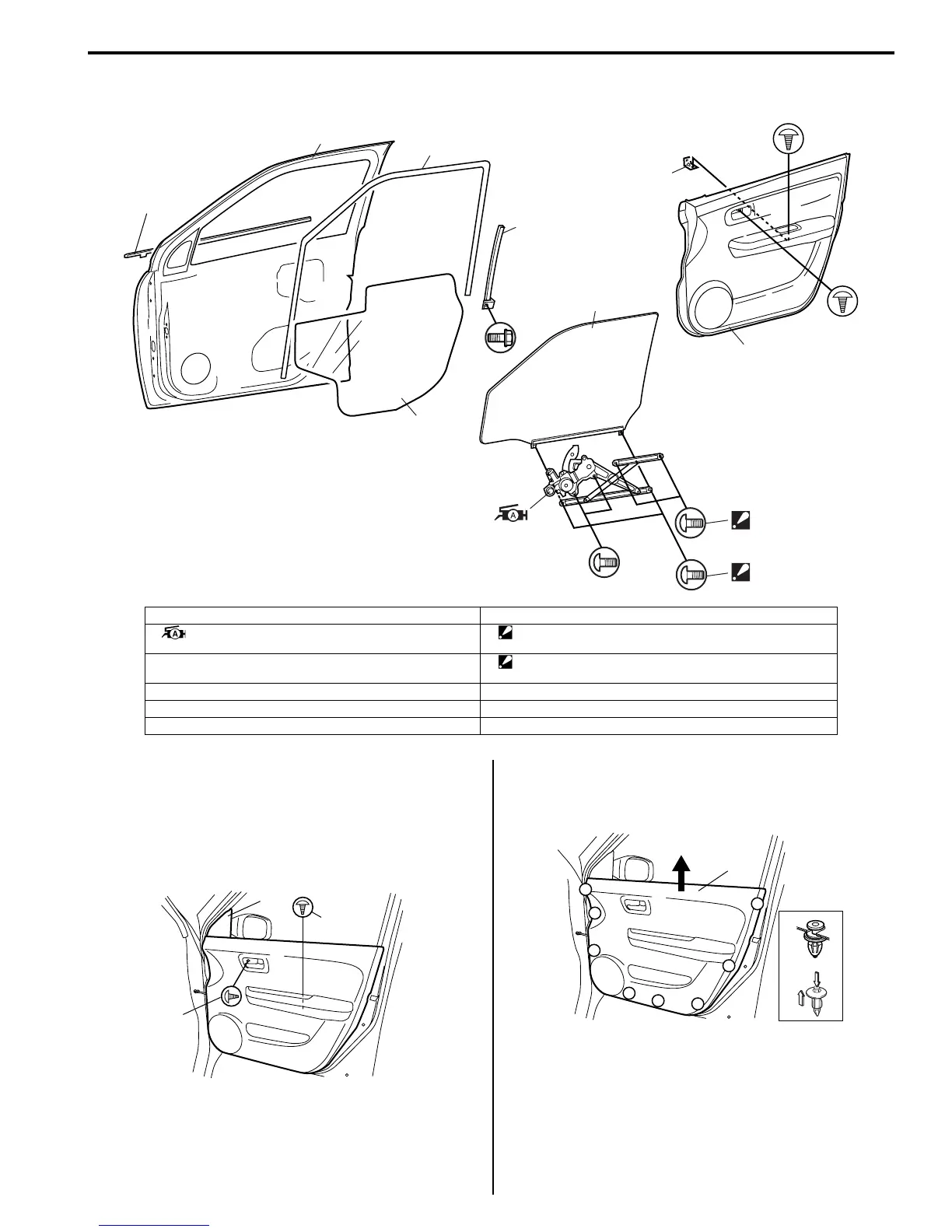

Front Door Window Components
S7RS0B9506002
Front Door Glass Removal and Installation
S7RS0B9506003
Removal
1) Remove door mirror trim (1).
2) Remove door trim mounting screws (2).
3) Remove door trim (1) as shown.
And disconnect power window switch lead wire at
coupler.
10
6
3
1
7
11
5
2
9
8
4
I4RS0A950005-01
1. Door glass 7. Front door sash
2. Window regulator assembly
: Apply lithium grease 99000-25011 to sliding part.
8. Door glass mounting screw
: Tighten rear screw first, and then tighten front screw.
3. Glass run 9. Front door window regulator mounting screw
: Tighten rear screw first, and then tighten front screw.
4. Door trim 10. Front door outer weather-strip
5. Door sealing cover 11. Door trim bracket
6. Door panel
2
2
1
I4RS0A950006-01
“B”
“A”
“B”
“A”
“B”
“A”
“A”
“A”
“A”
“A”
1
I4RS0A950007-01
To Next Page
