4C-2 Rear Brakes:

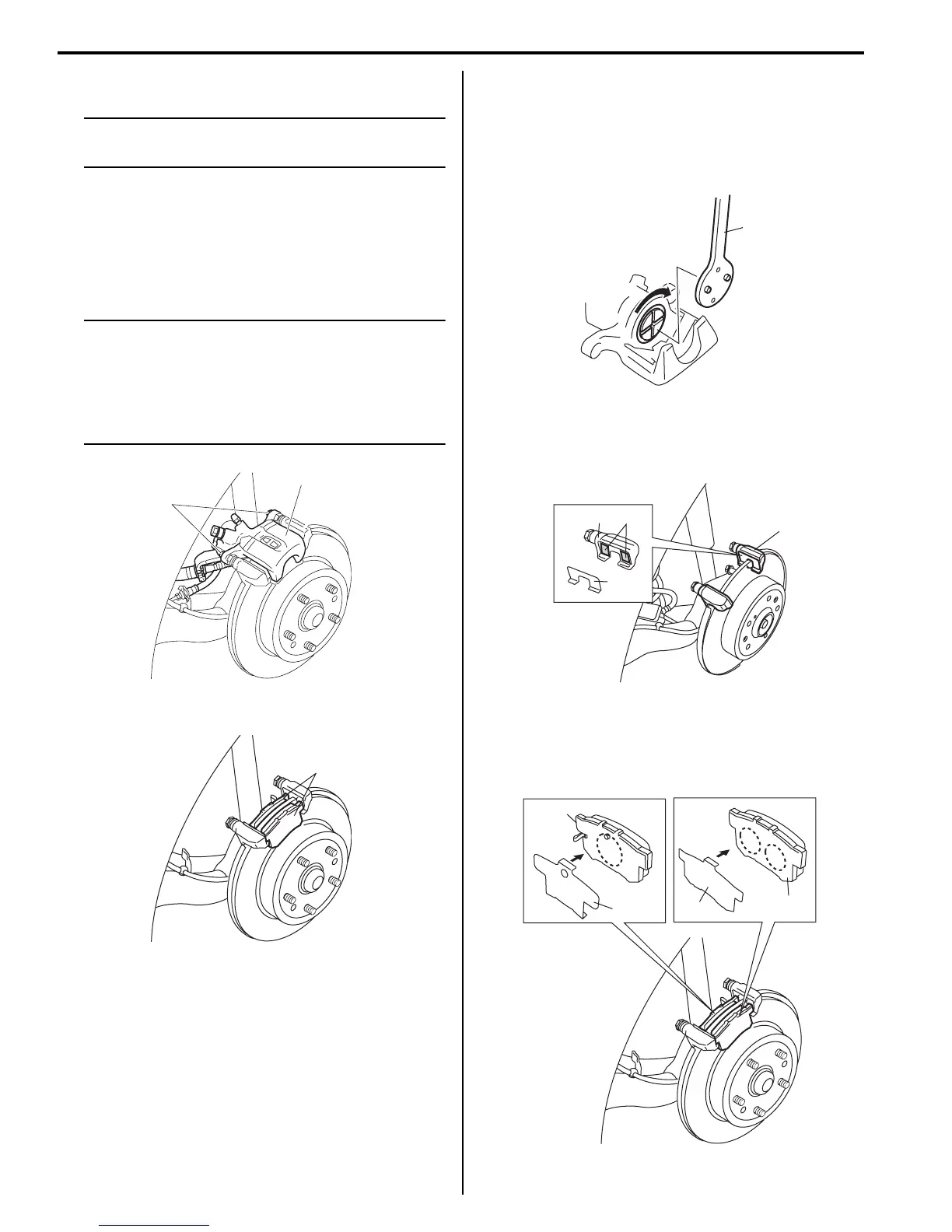

Rear Disc Brake Pad Removal and Installation
S7RS0B4306002
NOTE
When replacing brake pad, replace it on the
right and left.
Removal
1) Hoist vehicle and remove wheel.
2) Release parking brake lever.
3) Remove caliper pin bolts (1).
4) Remove caliper (2) from caliper carrier.
NOTE
Hang removed caliper (2) with a wire hook or
the like so as to prevent brake hose from
bending and twisting excessively or being
pulled.
Don’t operate brake pedal with brake pads
removed.
5) Remove brake pads (1) and pad springs.
Installation
1) Turn brake caliper piston clockwise to obtain
clearance between brake disc and pads.
Special tool
(A): 09945–16060
2) Clean (and degrease) pad spring installation face (3)
of caliper carrier (1).
3) Attach pad springs (2) to caliper carrier (1).
4) Before installing brake pad shims (1), apply small
amount of grease (included in spare parts) to mating
surfaces of brake pad and pad shim.
5) Set pad shims (1) to brake pads (2).
1
2
I6RS0C430002-01
1
I6RS0C430003-01
(A)
I6RS0B431004-01
1
1
3
2
I6RS0B431005-03
2
1
1
2
I6RS0C430004-01
