9A-33 Wiring Systems:
Fuses and the Protected Parts
S7RS0B910D002

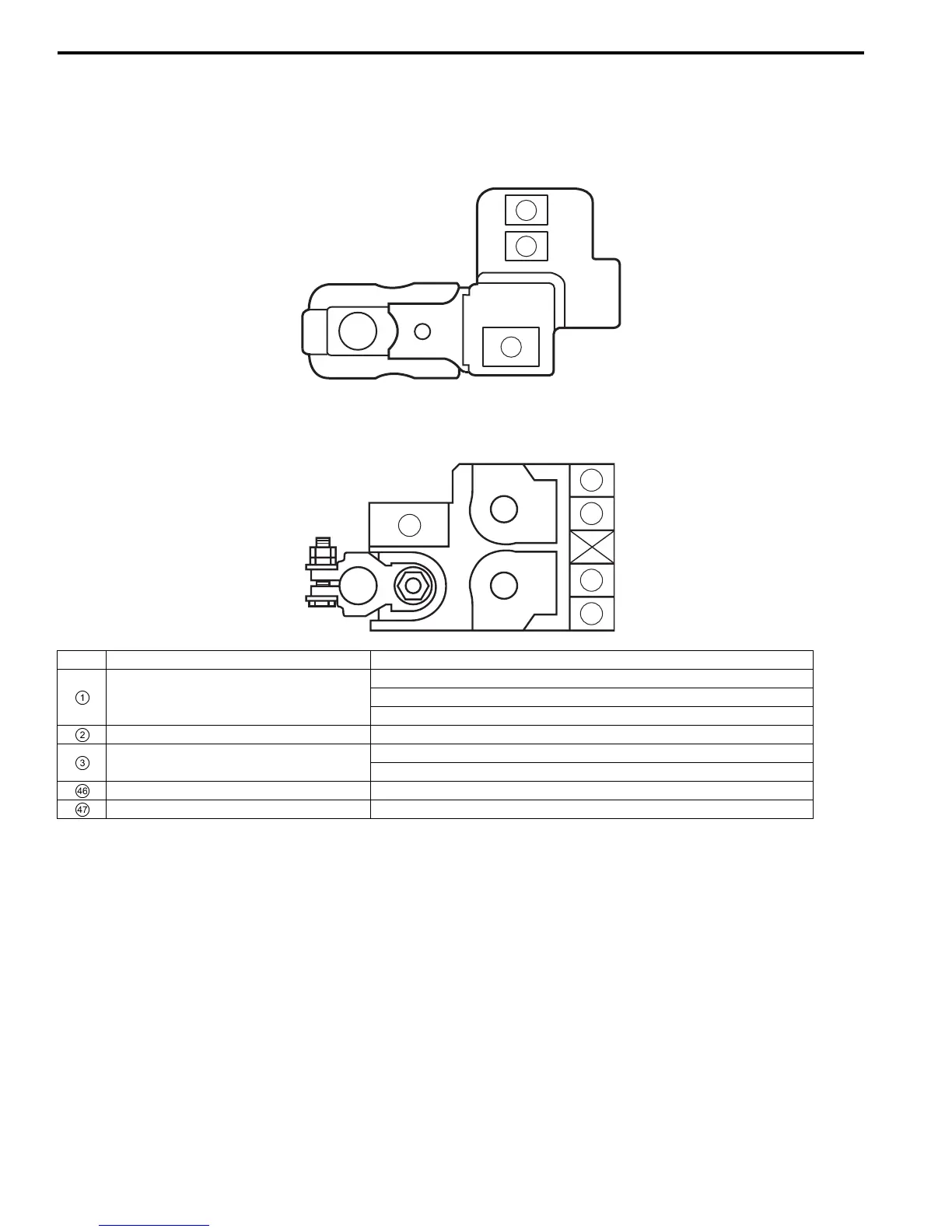

The chart below describes what parts each fuse protects.
Fuses in Main Fuse Box (RHD)
S7RS0B910D003
Fuses in Main Fuse Box (LHD)
S7RS0B910D004
No. Fuse Protected circuit
80 A
All electric circuit
Battery
Generator
50 A LAMP
50 A
IG switch
Supplementary fuse box No.2 (In J/B)
80 A Individual circuit fuse box
80 A Individual circuit fuse box
1
3
2
I4RS0A910905-01
2
3
47
46
1
I4RS0B910974-01
