5A-124 Automatic Transmission/Transaxle:

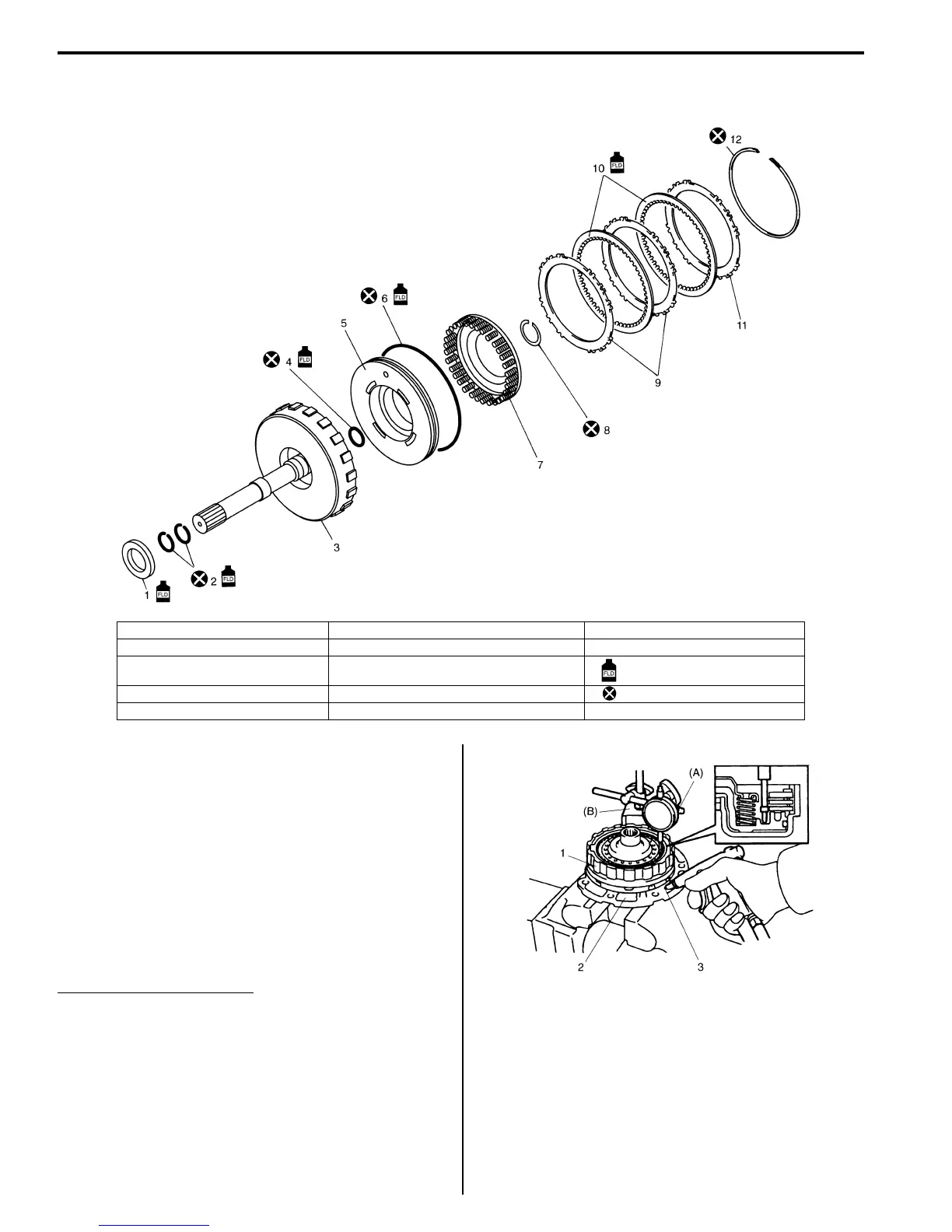

Direct Clutch Assembly Components
S7RS0B5106037
Direct Clutch Assembly Preliminary Check
S7RS0B5106038
Install direct clutch assembly (1) to oil pump assembly
(2) blow in air (400 – 800 kPa, 4 – 8 kg/cm
2
, 57 – 113
psi) through oil hole (3) of oil pump assembly with
special tool attached on upper surface of direct clutch
piston, and measure piston stroke of direct clutch.
If piston stroke exceeds specified value, disassemble,
inspect and replace inner parts.
Special tool
(A): 09900–20607
(B): 09900–20701
Direct clutch piston stroke
0.4 – 0.7 mm (0.016 – 0.027 in.)
I2RH0B510160-01
1. Input shaft front thrust bearing 6. Outer O-ring 11. Direct clutch retaining plate
2. Input shaft seal ring 7. Direct clutch return spring subassembly 12. Plate snap ring
3. Input shaft subassembly 8. Shaft snap ring : Apply automatic transaxle fluid.
4. Inner O-ring 9. Direct clutch separator plate : Do not reuse.
5. Direct clutch piston 10. Direct clutch disc
I2RH0B510161-01
