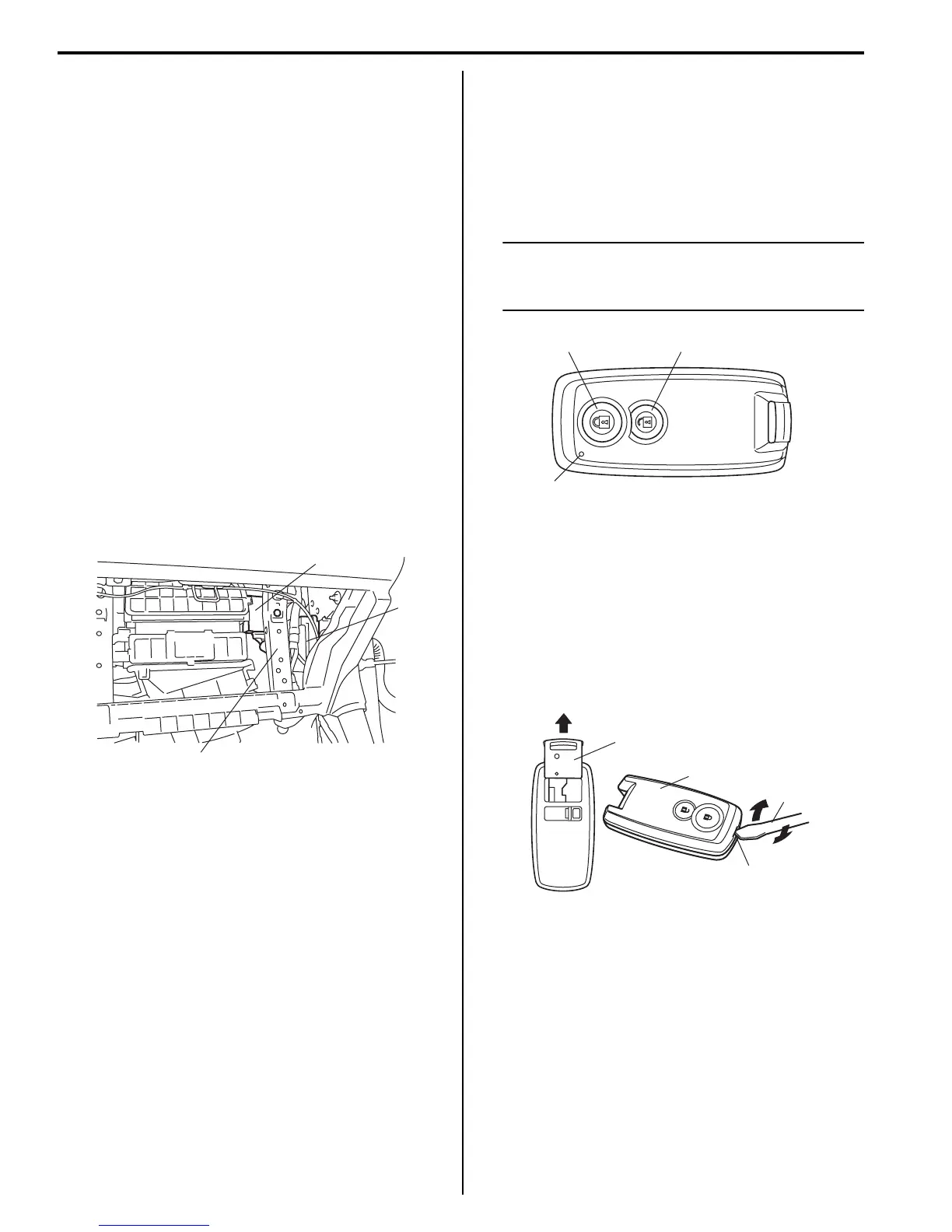

10E-32 Keyless Start System:
Keyless Start Control Module Removal and
Installation
S7RS0BA506006
Removal
1) Disconnect negative (–) cable at battery.
2) Remove glove box from instrument panel.
3) Remove keyless start control module (1) as follows.
• For vehicle equipped with M/T:
a. Disconnect connector from keyless start
control module.
b. Remove keyless start control module
mounting bolt and then remove keyless start
control module from steering support member
(2).
• For vehicle equipped with A/T:
a. Remove TCM (3) from vehicle body referring
to “Transmission Control Module (TCM)
Removal and Installation in Section 5A”.
b. Disconnect connector from keyless start
control module.
c. Remove keyless start control module
mounting bolt and then remove keyless start
control module from steering support member.
Installation
For installation, reverse removal procedure.
If Keyless start control module is replaced, register ID
code of remote controller into Keyless start control
module, referring to “Registration Procedure for Remote
Controller ID Code”.
Remote Controller Inspection
S7RS0BA506007
Check that remote controller operation indicator lamp (3)
lights up when lock (1) or unlock (2) button of remote
controller is pushed.
If it doesn’t light up in this check, replace battery and
then recheck. If it doesn’t light up even after battery
replacement, replace remote controller.
NOTE
When remote controller transmits lock or
unlock signal, it makes operation indicator
lamp light up.
Replacement of Remote Controller Battery
S7RS0BA506008
If remote controller operation indicator lamp fails to light
up when lock or unlock button of remote controller is
pushed, replace its battery as follows.
1) If ignition key (1) is inserted in remote controller,
remove it.
2) With tip of flat blade screwdriver (2) put in slot (3) of
remote controller (4), pry it open.
1
3
2
I4RS0BA50030-01
1
2
3
I4RS0BA50031-01
1
4
2
3
I4RS0BA50032-01
