Steering Wheel and Column: 6B-6

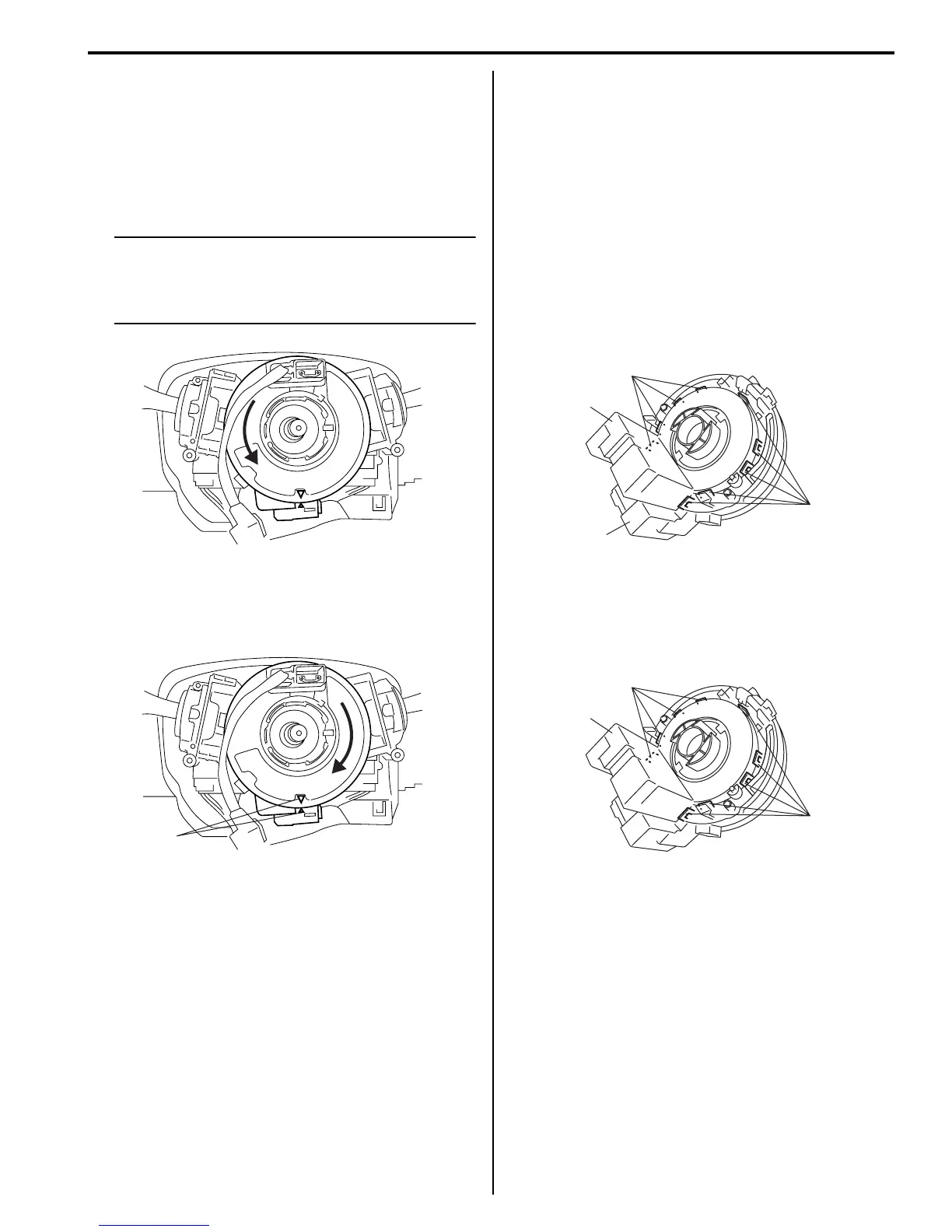

Centering Contact Coil Cable Assembly
S7RS0B6206004
1) Check that vehicle’s wheels (front tires) are set at
straight-ahead position.
2) Check that ignition switch is at LOCK position.
3) Turn contact coil counterclockwise slowly with a light
force till contact coil will not turn any further.
NOTE
Contact coil can turn about 5 turns at the
maximum, that is, if it is at the center
position, can turn about two and a half turns
both clockwise and counterclockwise.
4) From the position where contact coil became unable
to turn any further (it stopped), turn it back clockwise
about two and a half rotations and align center mark
with alignment mark (1).
Contact Coil Cable Assembly Inspection
S7RS0B6206005
Refer to “Contact Coil Cable and Its Circuit Check in
Section 8B”.
Steering Angle Sensor Removal and Installation
S7RS0B6206011
Removal
1) Remove steering wheel and contact coil cable
assembly. Refer to “Steering Wheel Removal and
Installation” and “Contact Coil Cable Assembly
Removal and Installation”.
2) Remove steering angle sensor (2) from contact coil
cable assembly (3) while opening fitting parts (1) of
contact coil cable assembly.
Installation
1) Install steering angle sensor (2) by fitting
engagement parts (1) of contact coil cable assembly
to claws of steering angle sensor as shown in figure.
2) Install contact coil cable assembly and steering
wheel. Refer to “Contact Coil Cable Assembly
Removal and Installation” and “Steering Wheel
Removal and Installation”.
Steering Angle Sensor Inspection
S7RS0B6206012
Refer to “Steering Angle Sensor Inspection in Section
4F”.
I4RS0A620012-01
1
I4RS0A620013-01
1
1
2
3
I6JB01620003-01
1
1
2
I6JB01620004-01
