Manual Transmission/Transaxle: 5B-13

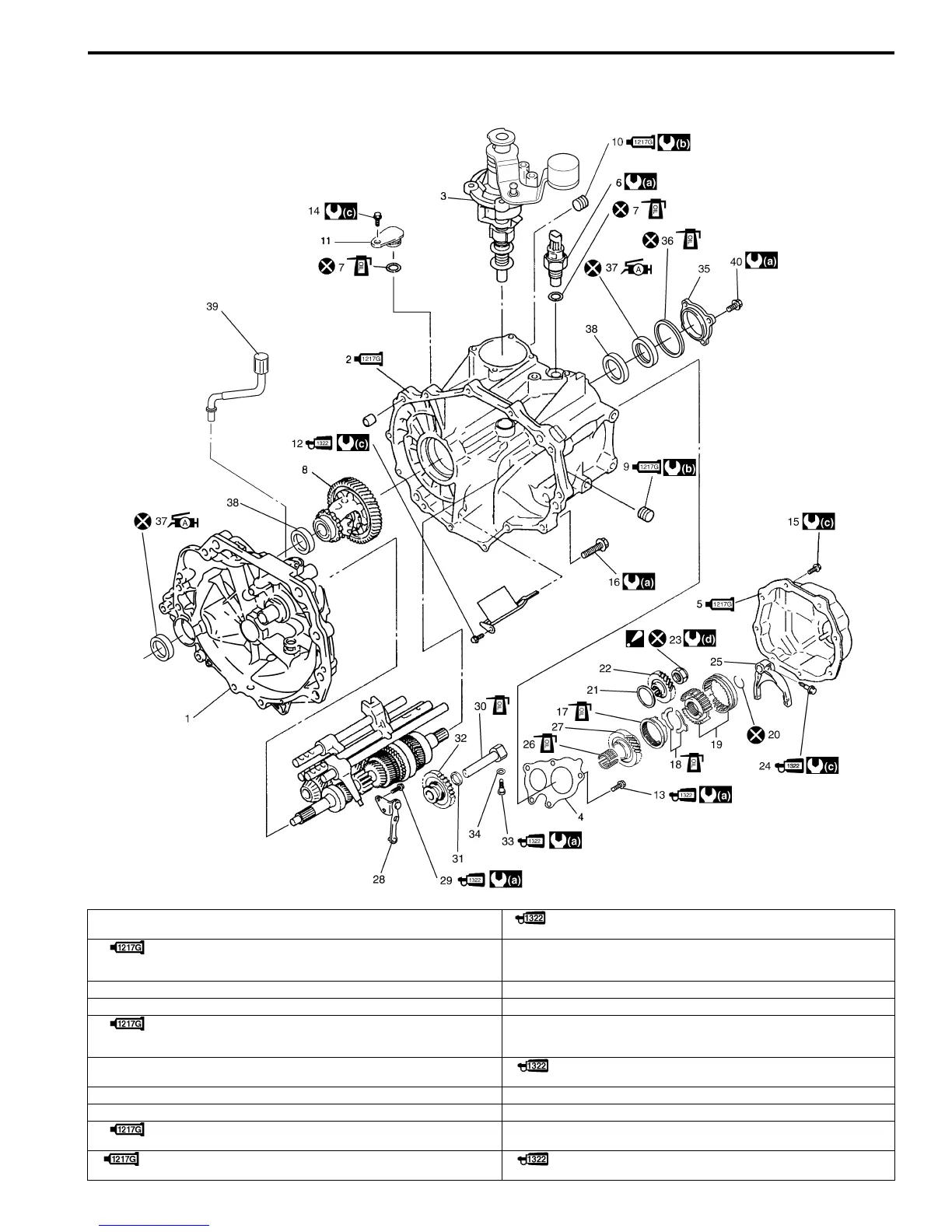

Manual Transaxle Assembly Components
S7RS0B5206013
I6RS0C520005-01
1. Transaxle right case 24. Shift fork bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
2. Transaxle left case
: Apply sealant 99000-31260 to mating surface of left case and right
case.
25. 5th gear shift fork
3. Gear shift and select shaft assembly 26. Needle bearing
4. Transaxle left case plate 27. Input shaft 5th gear
5. Transaxle side cover
: Apply sealant 99000-31260 to mating surface of side cover and left
case.
28. Reverse gear shift lever
6. Back up light switch 29. Reverse gear shift lever bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
7. O-ring 30. Reverse gear shaft
8. Differential assembly 31. Washer
9. Oil level/filler plug
: Apply sealant 99000-31260 to all around thread part of plug.
32. Reverse idler gear
10. Oil drain plug
: Apply sealant 99000-31260 to all around thread part of plug.
33. Reverse shaft bolt
: Apply thread lock 99000-32110 to all around thread part of bolt.
To Next Page
