5A-54 Automatic Transmission/Transaxle:
DTC P0787: Shift / Timing Solenoid Low
S7RS0B5104029

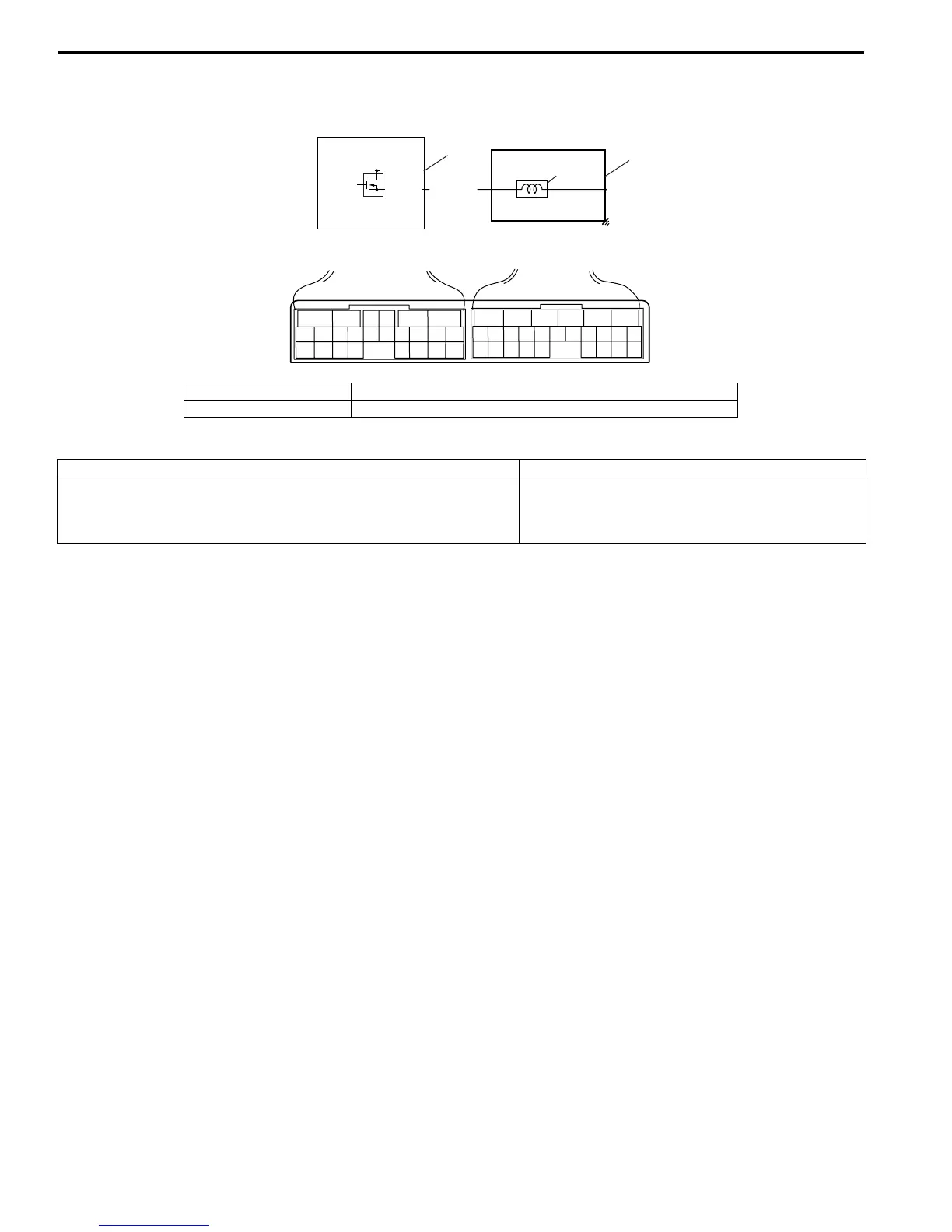

Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC in TCM memory.
3) Start engine and shift select lever to “N” range.
4) Repeat shifting select lever from “N” range to “D” range and vice versa for 3 times.
5) Check DTC.
1. TCM 3. A/T
2. Timing solenoid valve [A]: Terminal arrangement of TCM connector (viewed from harness side)
12V
C34-14
BLU/BLK
3
1
2
14
C34
C35
[A]
I4RS0A510014-01
DTC detecting condition Trouble area
Voltage of timing solenoid valve TCM terminal is low although TCM
is commanding timing solenoid valve to turn ON.
• Timing solenoid valve circuit shorted to ground
• Timing solenoid valve malfunction
•TCM
To Next Page
