Front Brakes: 4B-1
Brakes
Front Brakes
Repair Instructions

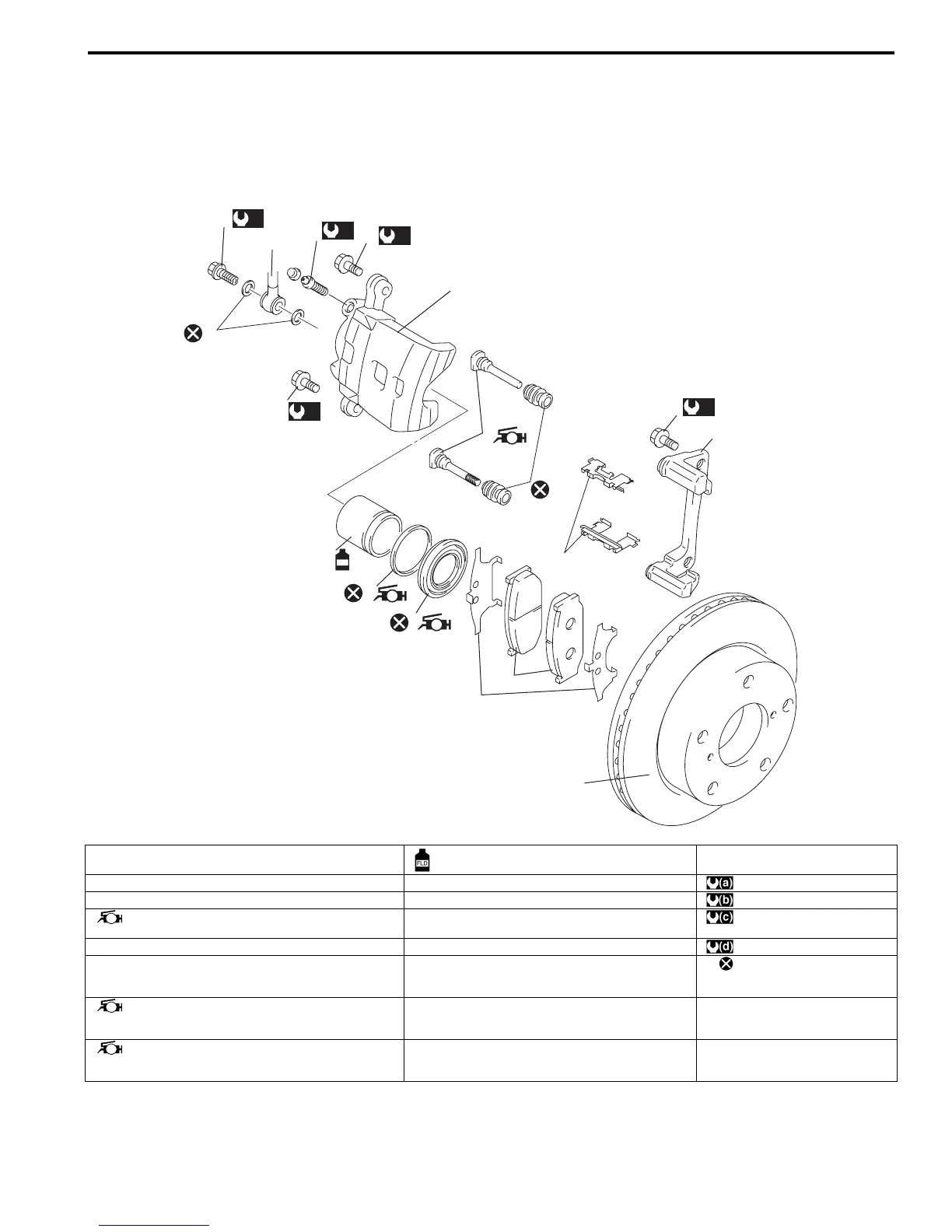

Front Disc Brake Components
S7RS0B4206001
11
5
6
10
4
1
16
17
12
8
7
3
2
(a)
15
(b)
14
(c)
2
(a)
13
(d)
9
FLD
I6RS0C420005-02
1. Caliper 9. Disk brake piston
: Apply brake fluid to contact surface of cylinder.
17. Brake flexible hose
2. Caliper pin bolt 10. Pad spring : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
3. Boot 11. Brake disc : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
4. Slide pin
: Apply rubber grease (included in slide pin boot set).
12. Brake caliper carrier : 8 N⋅m (0.8 kgf-m, 6.0 lb-ft)
5. Brake pad 13. Caliper carrier bolt : 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
6. Shim
: Apply small amount of pad grease (include in pad
repair kit).
14. Bleeder plug : Do not reuse.
7. Cylinder boot
: Apply small amount of rubber grease included in
piston seal set.
15. Flexible hose joint bolt
8. Piston seal
: Apply small amount of rubber grease included in
piston seal set.
16. Hose washer
