Engine Mechanical: 1D-10

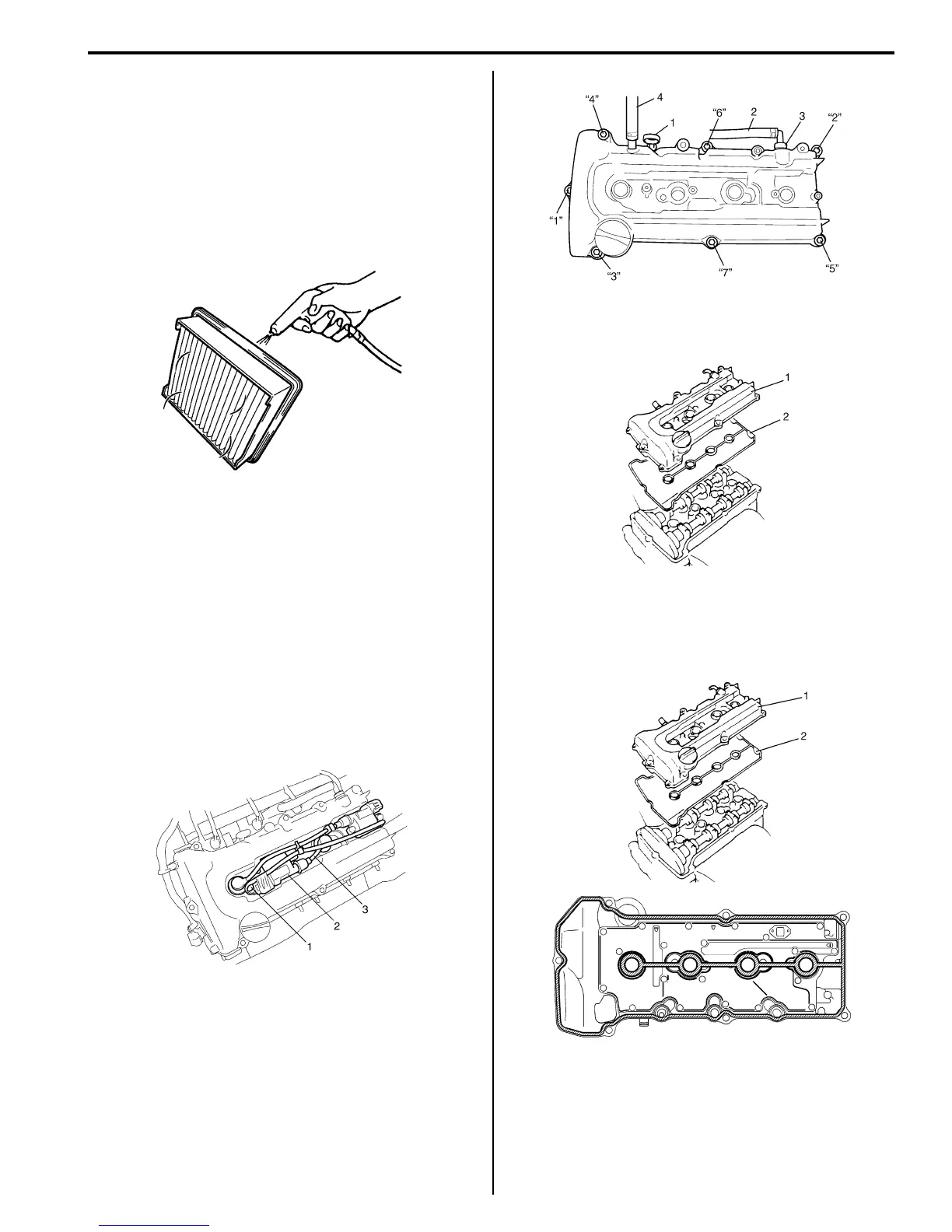

Air Cleaner Element Inspection and Cleaning
S7RS0B1406003
Inspection
Check air cleaner element for dirt. Replace excessive
dirty element.
Cleaning
Blow off dust by compressed air from air outlet side of
element.
Cylinder Head Cover Removal and Installation
S7RS0B1406004
Removal
1) Disconnect negative cable at battery.
2) Remove air cleaner assembly and air suction hose
referring to “Air Cleaner Components”.
3) Remove cylinder head upper cover.
4) Disconnect ignition coil couplers (1).
5) Remove ignition coil assemblies (2) with high-
tension cord (3).
6) Remove wire harness clamp from cylinder head
cover.
7) Remove oil level gauge (1).
8) Disconnect PCV hose (2) from PCV valve (3) and
disconnect breather hose (4) from cylinder head
cover.
9) Remove cylinder head cover mounting bolts in such
order as indicated in the figure.
10) Remove cylinder head cover (1) with cylinder head
cover gasket (2).
Installation
1) Install new cylinder head cover gasket (2) to cylinder
head cover (1) as shown in figure.
I2RH0B140150-01
I2RH0B140032-01
I2RH0B140033-01
I6RS0B141004-01
I6RS0B141005-01
