Suzuki SWIFT 2005 User Manual

Wiring Systems: 9A-16
Instrument Panel
S7RS0B910A003

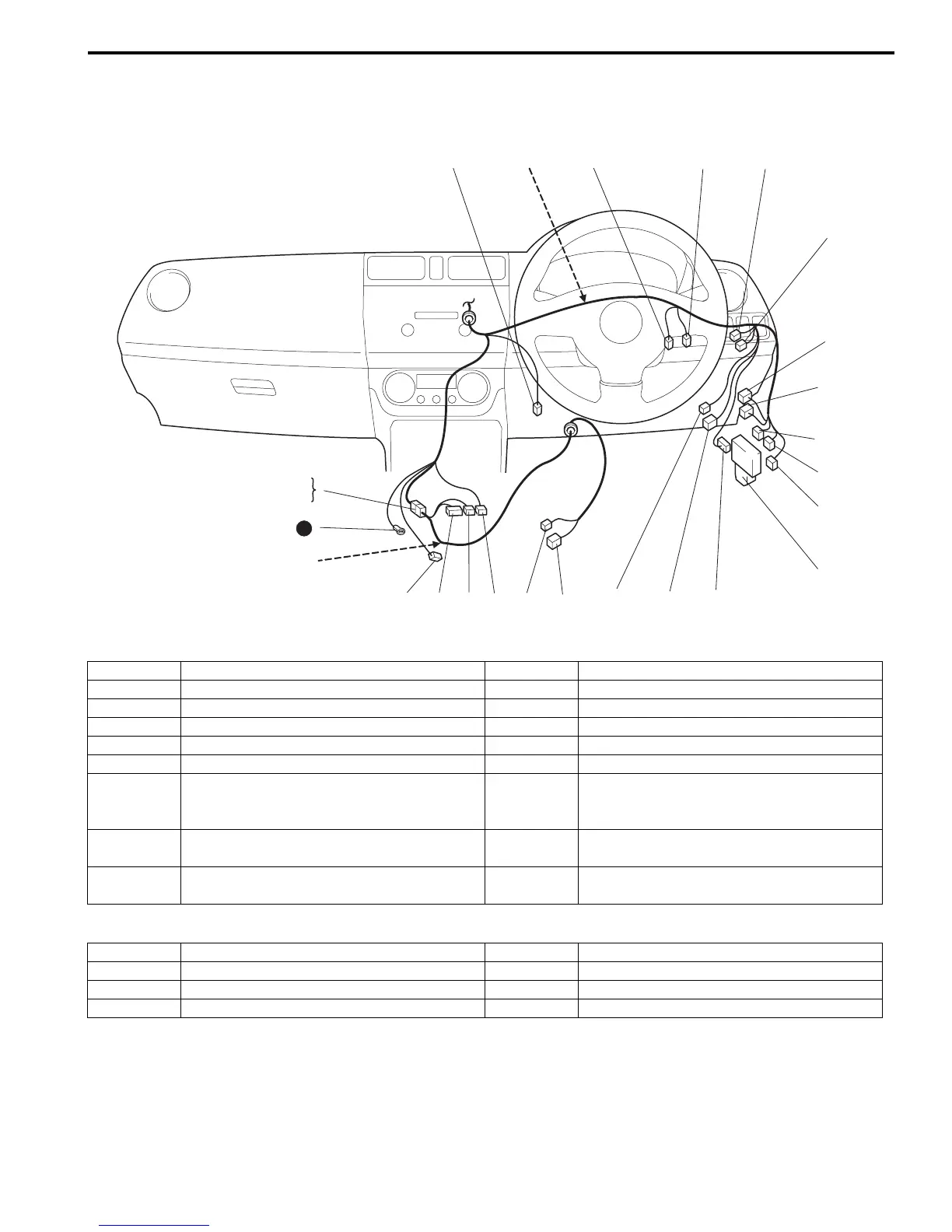

E: Main harness and power steering wire (RHD)
E: Main harness
E: Power steering wire
J/B
E54
E53
E49
E51
E52E84
E48
E50
Power steering wire
E47E74
E42E61
E43
E45
(TO L02)
E44
(TO L03)
E46
E40
E39
E41
E37
(TO G35)
E38
(TO G36)
8
E
I7RS0B910904-01
No./Color Connective position No./Color Connective position
E37/GRY Instrument panel harness (To G35) E45/N Floor harness (To L02)
E38/N Instrument panel harness (To G36) E46/BLU BCM
E39/BRN J/B E47/N Brake light switch
E40/N J/B E48/BLU Power steering wire (To E50)
E41/N J/B E49/BLK P/S control module
E42/N J/C
E61/N
(M16A
engine)
APP (Acceleration pedal position) sensor
E43/N J/C
E74/N (IF
EQPD)
CPP (Clutch pedal position) switch
E44/YEL Floor harness (To L03)
E84/BLK (IF
EQPD)
YAW/G sensor
No./Color Connective position No./Color Connective position
E50/BLU Main harness (To E48) E53/BLK P/S torque sensor
E51/BLU P/S control module E54/GRY P/S motor
E52/BLK P/S control module
