9A-17 Wiring Systems:

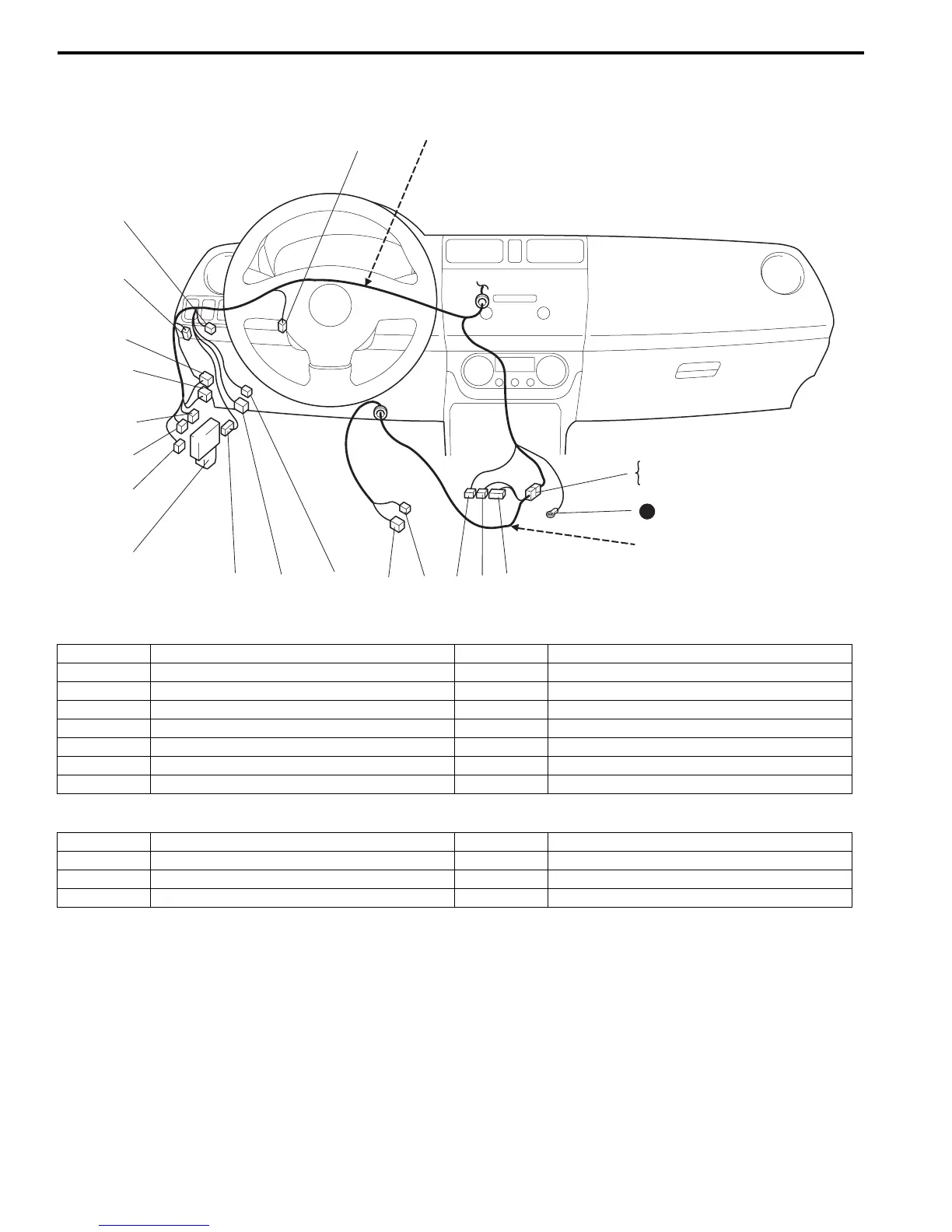

E: Main harness and power steering wire (LHD)
E: Main harness
E: Power steering wire
J/B
E54
E53
E49
E51
E52
E48
E50
E
Power steering wire
E47
E43
E42
E45
(TO L02)
E44
(TO L03)
E46
E40
E39
E41
E37
(TO G35)
E38
(TO G36)
8
I7RS0B910905-01
No./Color Connective position No./Color Connective position
E37/GRY Instrument panel harness (To G35) E44/YEL Floor harness (To L03)
E38/N Instrument panel harness (To G36) E45/N Floor harness (To L02)
E39/BRN J/B E46/BLU BCM
E40/N J/B E47/N Brake light switch
E41/N J/B E48/BLU Power steering wire (To E50)
E42/N J/C E49/BLK P/S control module
E43/N J/C
No./Color Connective position No./Color Connective position
E50/BLU Main harness (To E48) E53/BLK P/S torque sensor
E51/BLU P/S control module E54/GRY P/S motor
E52/BLK P/S control module
